S3LQ100TW

ABB - Molded Case

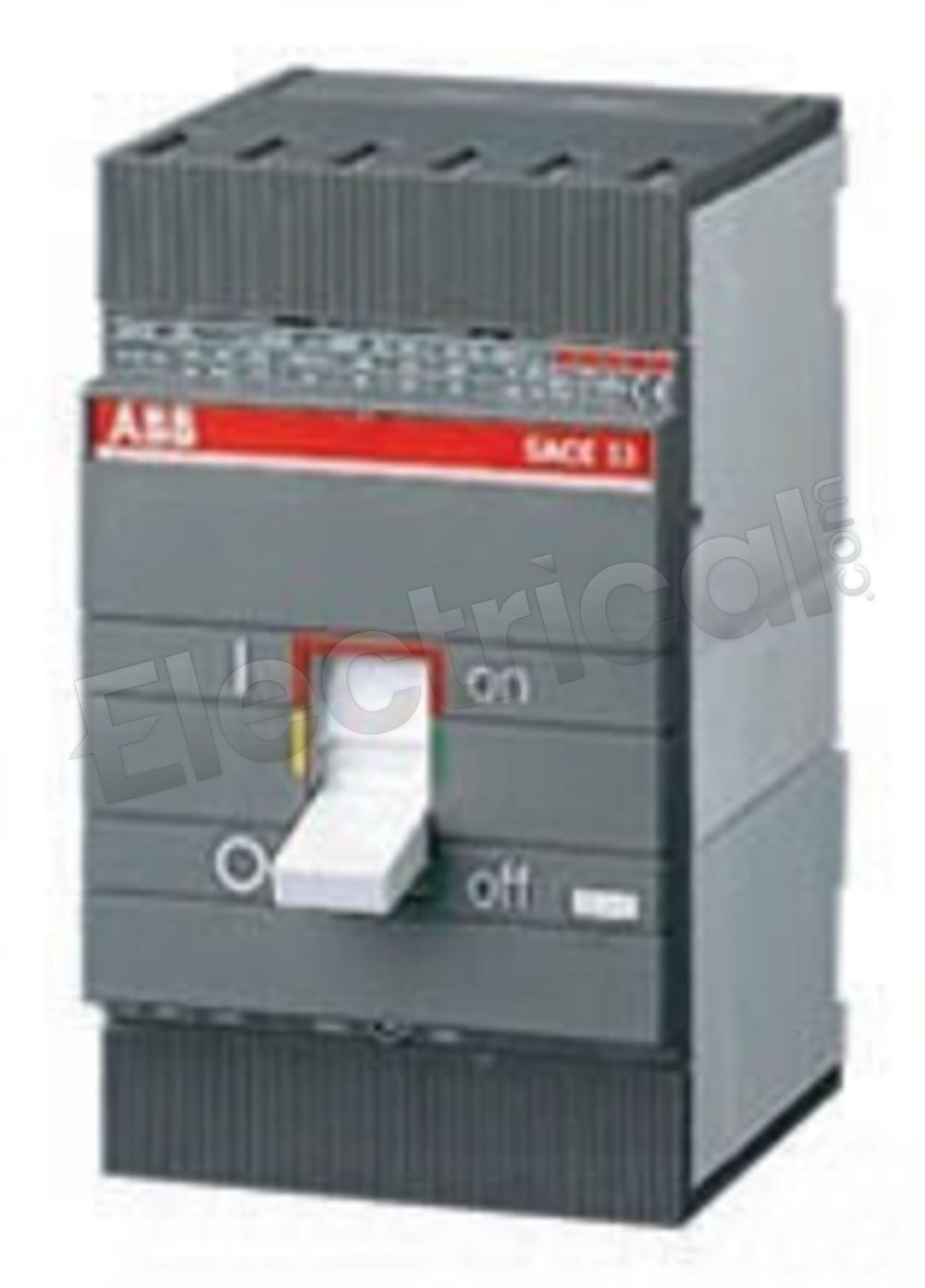

ABB Molded Case S3LQ100TW

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

S3LQ100TW Specifications

View Specifications

S3LQ100TW, ABB, SACE Isomax, type S3LQ, 3P, 3PH, 100A, 600V/500VDC, 85kA@480V, 85kA@415V, 100% UL rated, Bolt-On, suitable for reverse feed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers

Manufacturer
ABB
Subcategory
Molded Case
Family
SACE Isomax
Amperage
100
Voltage
600
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
S3LQ100TW Specifications:
Part NumberS3LQ100TW
Manufacturers
ABB
Sub-CategoryMolded Case
FamilySACE Isomax
TypeS3LQ
Weight10 lbs
Amperage100
Voltage600
Poles3
AIC Rating85kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionBolt-On
Frame TypeS3
Phase3
