    4. T5S600CW

T5S600CW

ABB - Molded Case

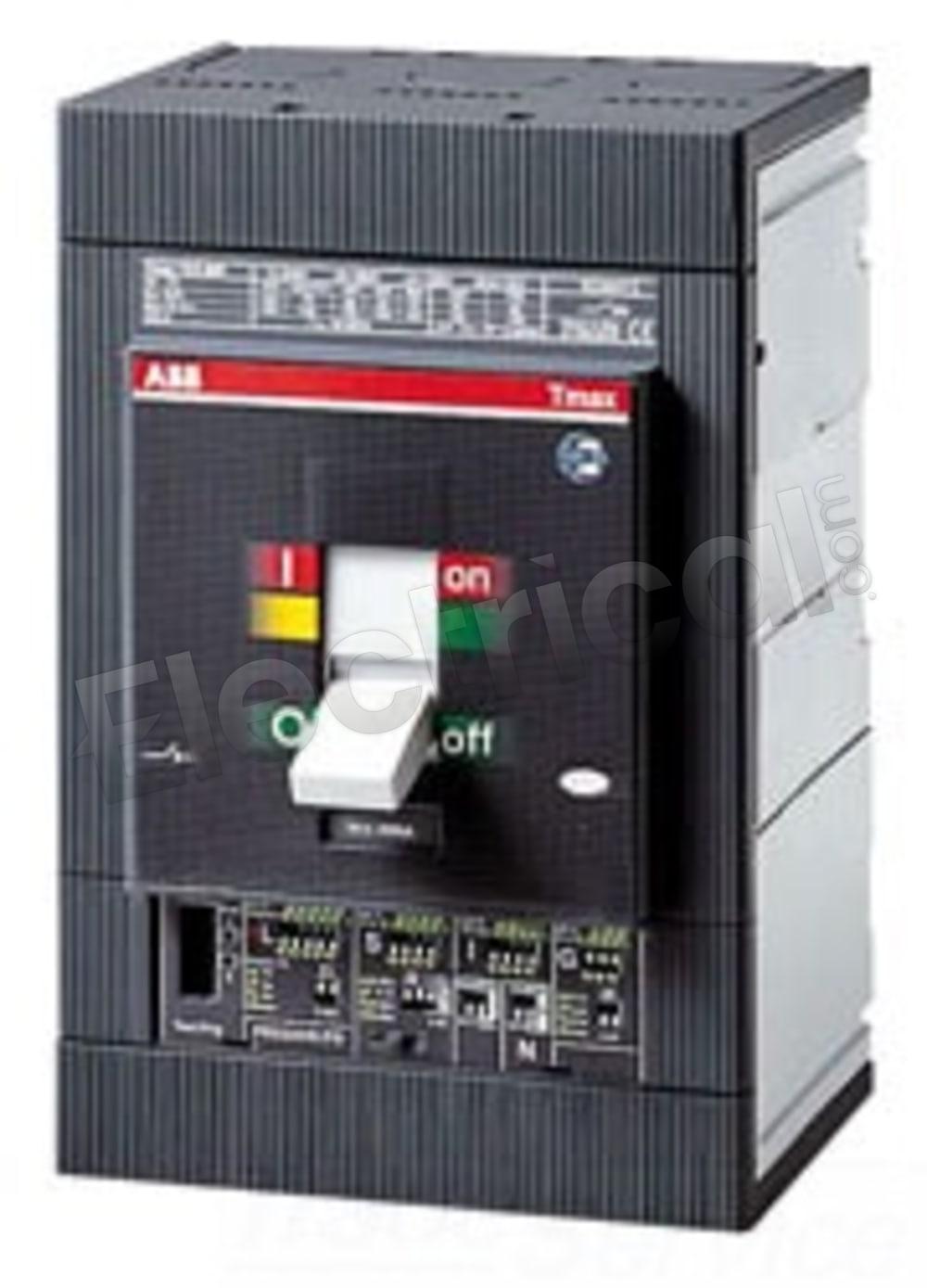

ABB Molded Case T5S600CW

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

T5S600CW Specifications

View Specifications

T5S600CW, ABB, SACE Tmax, type T5S, 3P, 3PH, 600A, 600V, 35kA@480V, 50kA@415V, Bolt-On, suitable for reverse feed applications, PR222 trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, load side lug terminals, Solid State electronic, molded case circuit breakers

Manufacturer
ABB
Subcategory
Molded Case
Family
SACE Tmax
Amperage
600
Voltage
600
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
T5S600CW Specifications:
Part NumberT5S600CW
Manufacturers
ABB
Sub-CategoryMolded Case
FamilySACE Tmax
TypeT5S
Weight10 lbs
Amperage600
Voltage600
Poles3
AIC Rating35kA@480V
FunctionsLSI - Long-Time, Short-Time and Instantaneous
ProtectionSolid State
ConnectionBolt-On
Frame TypeT5
Phase3
