1. Circuit Breaker /
  2. Molded Case /
  3. ABB /

    4. T6S800E5W

T6S800E5W

ABB - Molded Case

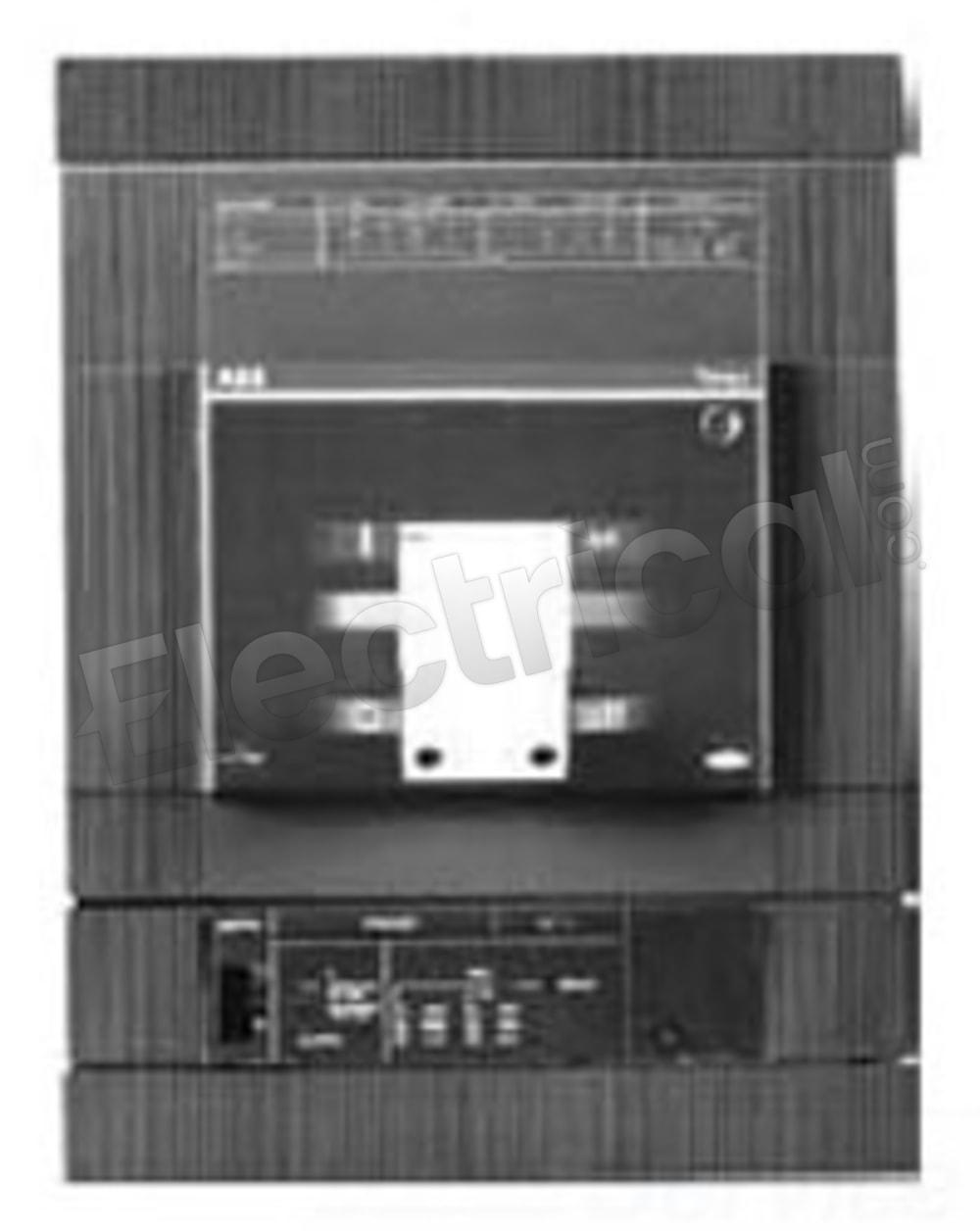

ABB Molded Case T6S800E5W

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

T6S800E5W Specifications

View Specifications

T6S800E5W, ABB, SACE Tmax, type T6S, 3P, 3PH, 800A, 600V, 35kA@480V, 50kA@415V, Bolt-On, complete with I - Instantaneous protection only and load side lug terminals, MCP- AC only, motor circuit protectors, PR221DS electronic trip unit, magnetic range 600-6000A, Magnetic Only, molded case circuit breakers

Manufacturer
ABB
Subcategory
Molded Case
Family
SACE Tmax
Amperage
800
Voltage
600
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
T6S800E5W Specifications:
Part NumberT6S800E5W
Manufacturers
ABB
Sub-CategoryMolded Case
FamilySACE Tmax
TypeT6S
Weight22 lbs
Amperage800
Voltage600
Poles3
AIC Rating35kA@480V
FunctionsI - Instantaneous
ProtectionMagnetic Only
ConnectionBolt-On
Frame TypeT6
Phase3
