5685D48G22

Cutler Hammer - Trip Units And Programmers

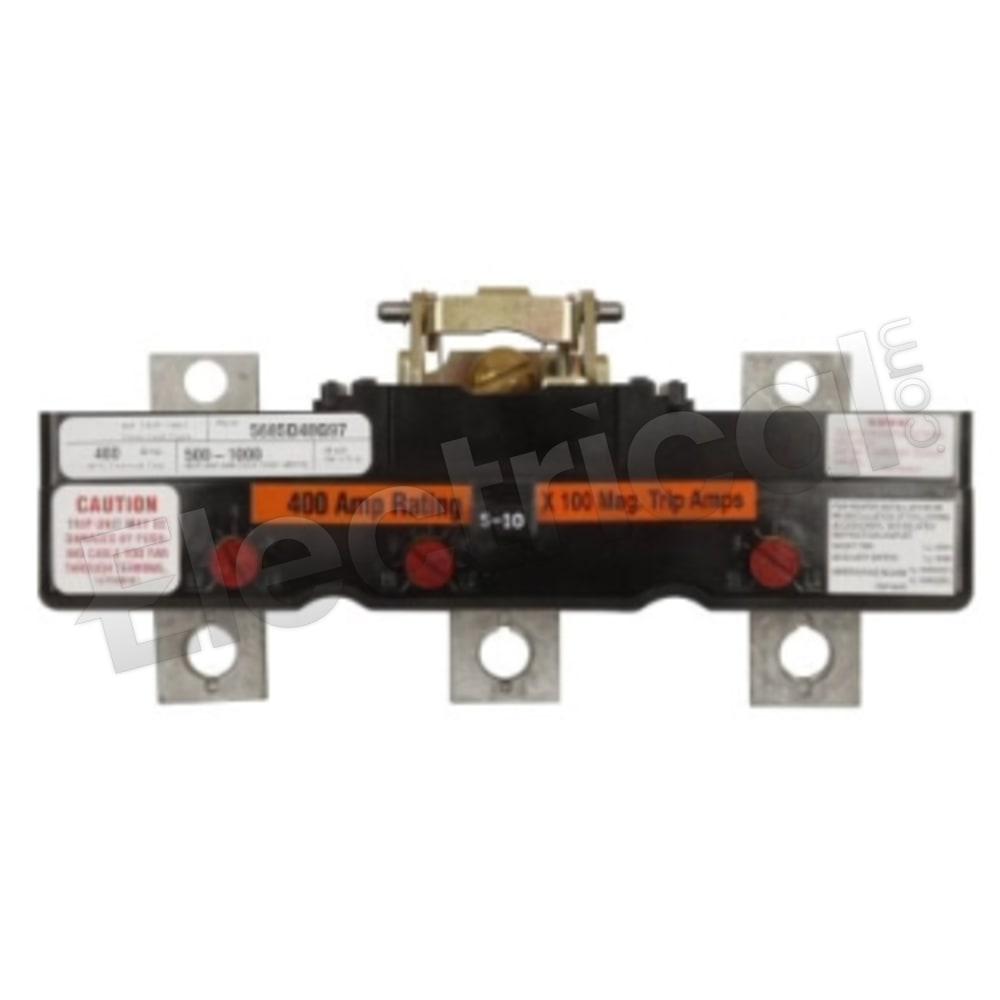

Cutler Hammer Trip Units And Programmers 5685D48G22

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

5685D48G22 Specifications

View Specifications

5685D48G22, Cutler Hammer, Classic Mining Service, type MAM, interchangeable trip, 3P, I - Instantaneous protection only, rated for 600A, magnetic trip range 1500-3000A, suitable for standard MARK 75 & 1000V- MAM,MAMH,HMAM,MCMH,MCM,HMCM mining service molded case circuit breaker frame types, Magnetic Only trip units & circuit breakers

Manufacturer
Cutler Hammer
Subcategory
Trip Units And Programmers
Family
Classic Mining Service
Suit Frame
MAM,MAMH,HMAM,MCMH,MCM,HMCM
Voltage
600

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
5685D48G22 Specifications:
Part Number5685D48G22
Manufacturers
Cutler Hammer
Sub-CategoryTrip Units And Programmers
FamilyClassic Mining Service
TypeMAM
Weight4 lbs
Suit FrameMAM,MAMH,HMAM,MCMH,MCM,HMCM
Voltage600
ProtectionMagnetic Only
Poles3
FunctionsI - Instantaneous
Amperage Min600
Amperage Max600
