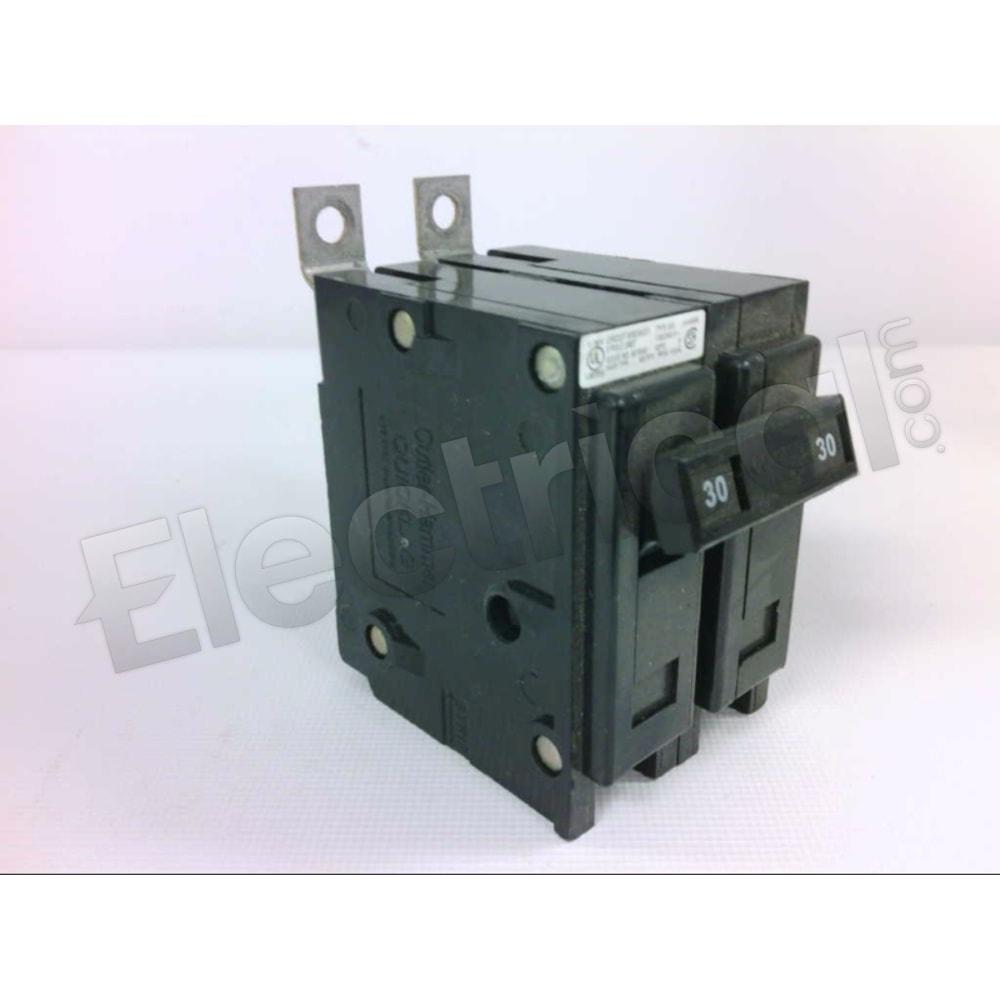

BA230
BA230
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
BA230 Specifications
View Full SpecificationsView Specifications
BA230, Cutler Hammer, Quicklag, type BA, twin/double, 2P/2P, 1PH, 30/30A, 120/240V, 10kA@240V, standard interrupting capacity, 40?C, Plug-In, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic molded case circuit breakers
| Manufacturer | Cutler Hammer | Subcategory | Molded Case |
| Family | Quicklag | Amperage | 30 |
| Voltage | 240 | Poles | 2 |
| Manufacturer | Cutler Hammer | ||
| Subcategory | Molded Case | ||
| Family | Quicklag | ||
| Amperage | 30 | ||
| Voltage | 240 | ||
| Poles | 2 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
BA230 Specifications:
Part NumberBA230
Manufacturers
Sub-CategoryMolded Case
FamilyQuicklag
TypeBA
Weight0.89 lbs
Amperage30
Voltage240
Poles2
AIC Rating10kA@240V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionPlug-In
Phase1
