BRH330

Cutler Hammer - Molded Case

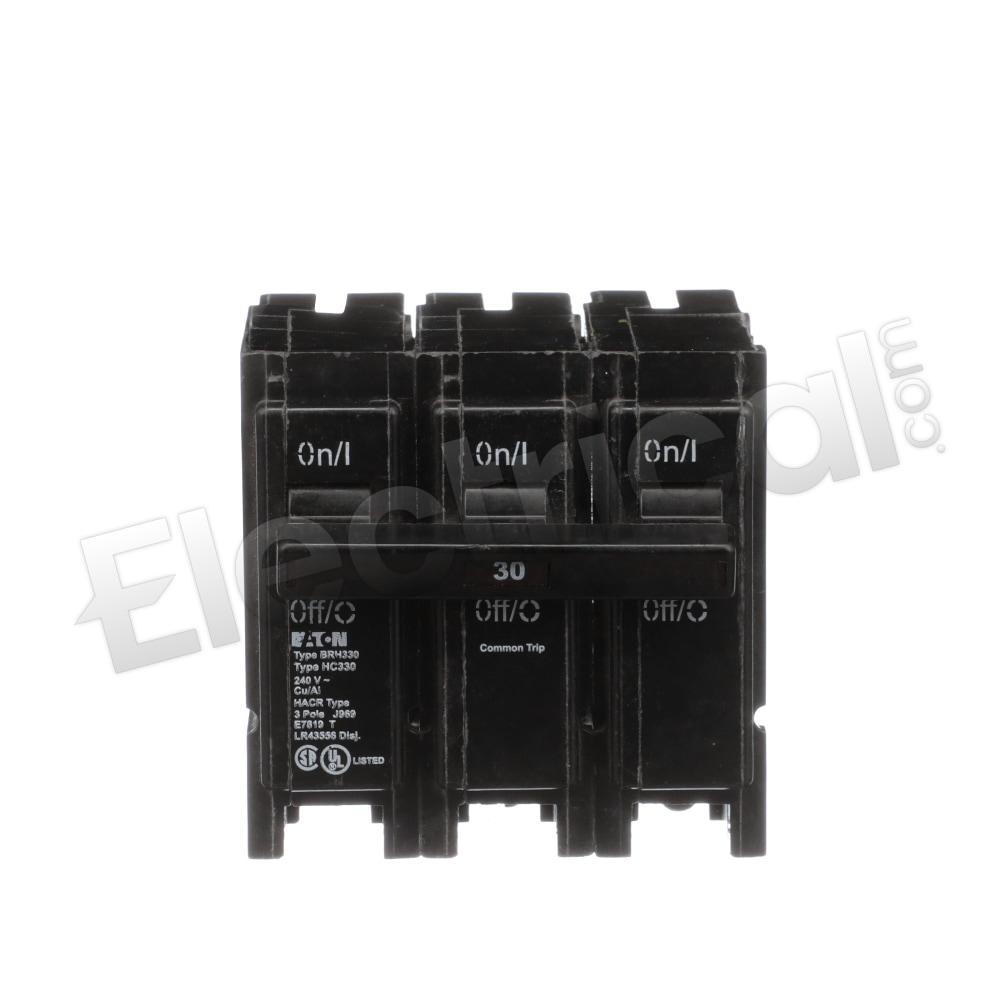

Cutler Hammer Molded Case BRH330

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

BRH330 Specifications

View Specifications

BRH330, Cutler Hammer, BR Series, type BRH, 3P, 3PH, 30A, 240V, 22kA@240V, high interrupting capacity, 40ºC, Plug-In, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic molded case circuit breakers

Manufacturer
Cutler Hammer
Subcategory
Molded Case
Family
BR Series
Amperage
30
Voltage
240
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
BRH330 Specifications:
Part NumberBRH330
Manufacturers
Cutler Hammer
Sub-CategoryMolded Case
FamilyBR Series
TypeBRH
Weight1 lbs
Amperage30
Voltage240
Poles3
AIC Rating22kA@240V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionPlug-In
Phase3
