CSR2200NSR24

Cutler Hammer - Molded Case

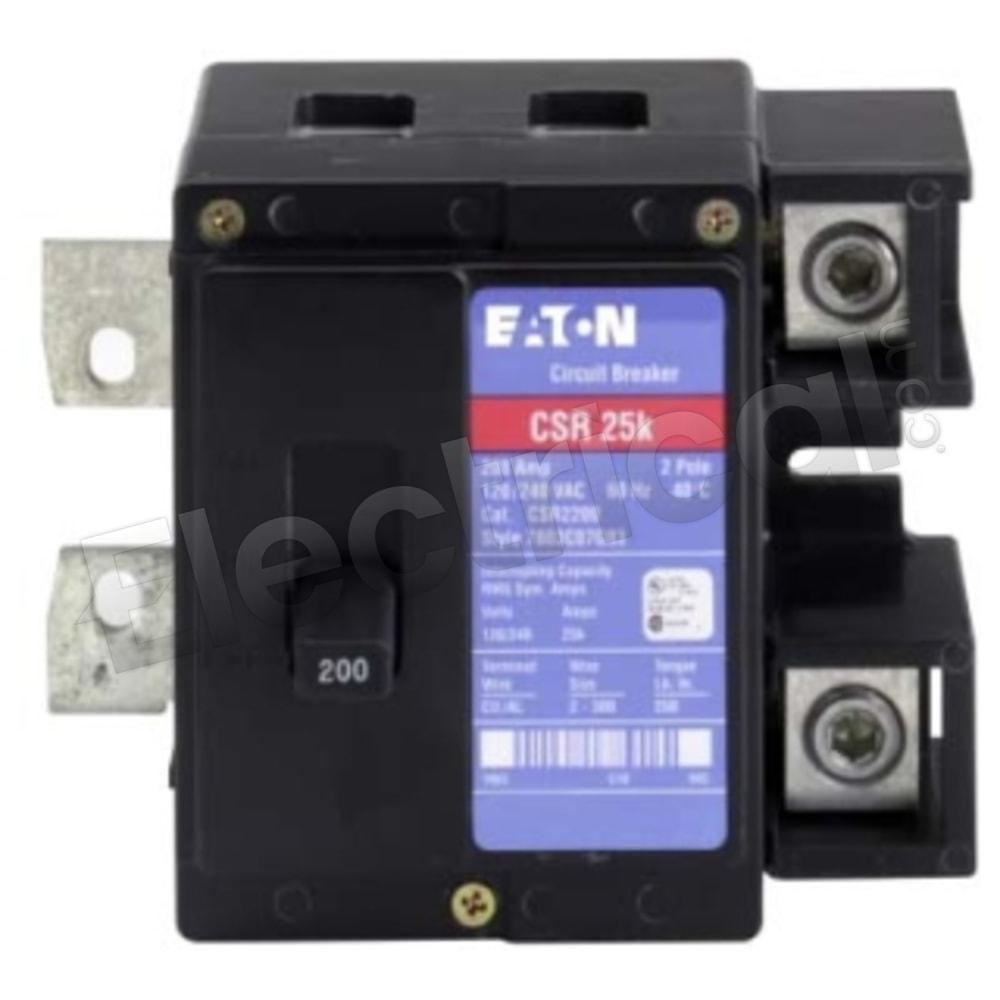

Cutler Hammer Molded Case CSR2200NSR24

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

CSR2200NSR24 Specifications

View Specifications

CSR2200NSR24, Cutler Hammer, CSR Series, type CSR, main breaker, 2P, 1PH, 200A, 240V, 25kA@240V, standard interrupting capacity, Plug-In, with 24V shunt trip, for use in type ECB unit enclosures, thermal magnetic, molded case circuit breakers

Manufacturer
Cutler Hammer
Subcategory
Molded Case
Family
CSR Series
Amperage
200
Voltage
240
Poles
2

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
CSR2200NSR24 Specifications:
Part NumberCSR2200NSR24
Manufacturers
Cutler Hammer
Sub-CategoryMolded Case
FamilyCSR Series
TypeCSR
Weight5 lbs
Amperage200
Voltage240
Poles2
AIC Rating25kA@240V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionPlug-In
Phase1
