E2LW3350W

Cutler Hammer - Molded Case

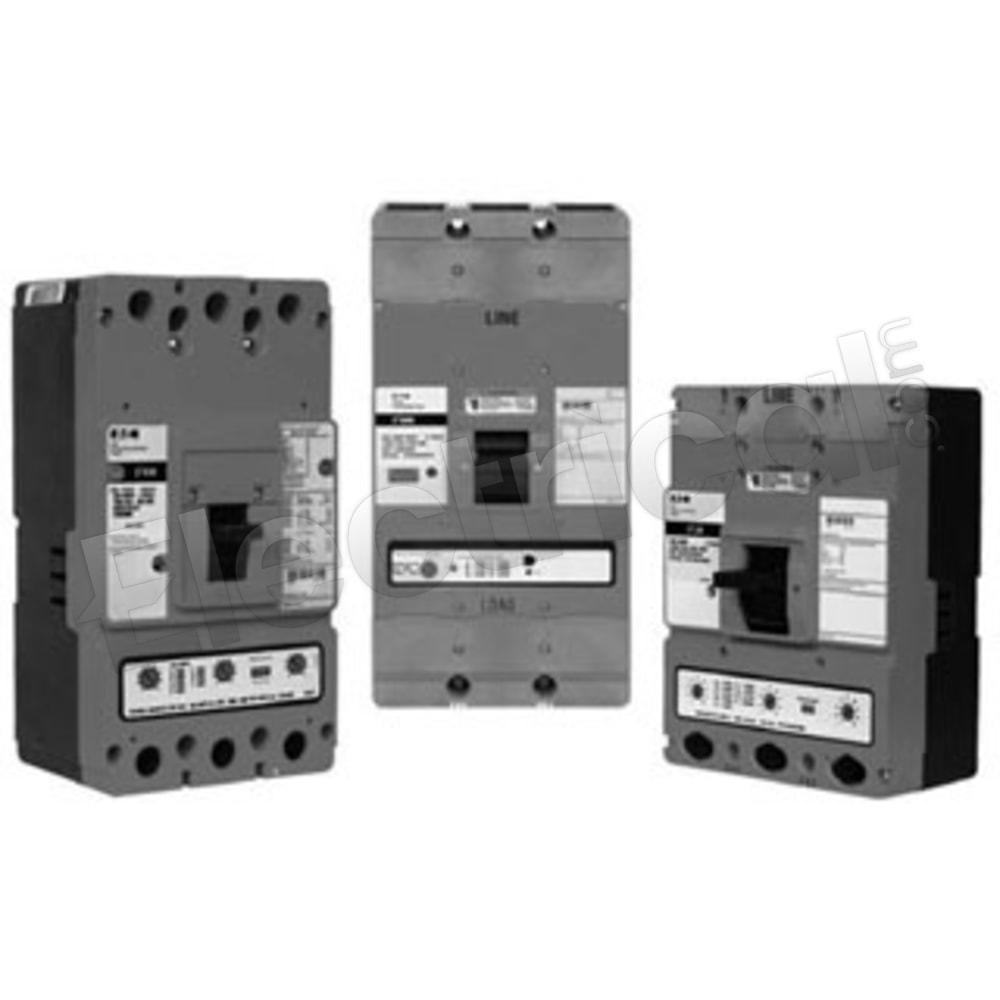

Cutler Hammer Molded Case E2LW3350W

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

E2LW3350W Specifications

View Specifications

E2LW3350W, Cutler Hammer, Series C, E2LW mining service breakers, type E2LW, 3P, 3PH, 350A, 1200V, 10kA@1200V, standard interrupting capacity, Bolt-On, complete with interchangeable, non-electronic trip, LI - Long-Time and Instantaneous trip functions, magnetic range 1750-3500A, lugs not included, Thermal Magnetic, molded case circuit breakers

Manufacturer
Cutler Hammer
Subcategory
Molded Case
Family
Series C
Amperage
350
Voltage
1200
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
E2LW3350W Specifications:
Part NumberE2LW3350W
Manufacturers
Cutler Hammer
Sub-CategoryMolded Case
FamilySeries C
TypeE2LW
Weight25 lbs
Amperage350
Voltage1200
Poles3
AIC Rating10kA@1200V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionBolt-On
Phase3
