E2MW3630W

Cutler Hammer - Molded Case

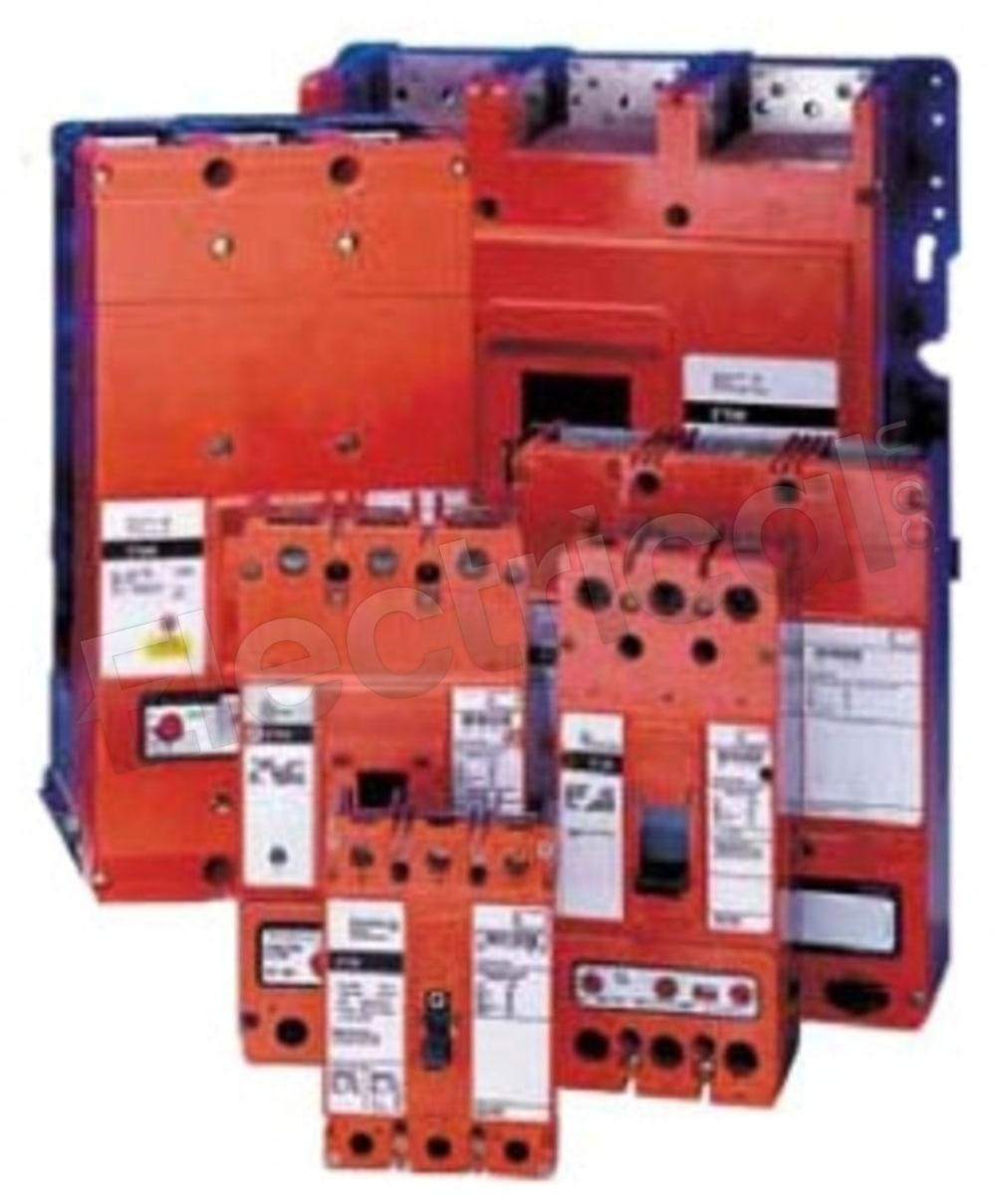

Cutler Hammer Molded Case E2MW3630W

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

E2MW3630W Specifications

View Specifications

E2MW3630W, Cutler Hammer, E2 Series, E2MW mining service breakers, type E2MW, 3P, 3PH, 630A, 1200V, 12kA@1200VAC, standard interrupting capacity, Bolt-On, complete with interchangeable, non-electronic trip, LI - Long-Time and Instantaneous trip functions, magnetic range 1575-3150A, lugs not included, Thermal Magnetic, molded case circuit breakers

Manufacturer
Cutler Hammer
Subcategory
Molded Case
Family
E2 Series
Amperage
630
Voltage
1200
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
E2MW3630W Specifications:
Part NumberE2MW3630W
Manufacturers
Cutler Hammer
Sub-CategoryMolded Case
FamilyE2 Series
TypeE2MW
Weight32 lbs
Amperage630
Voltage1200
Poles3
AIC Rating12kA@1200VAC
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionBolt-On
Phase3
