GEH7040FFM

Cutler Hammer - Molded Case

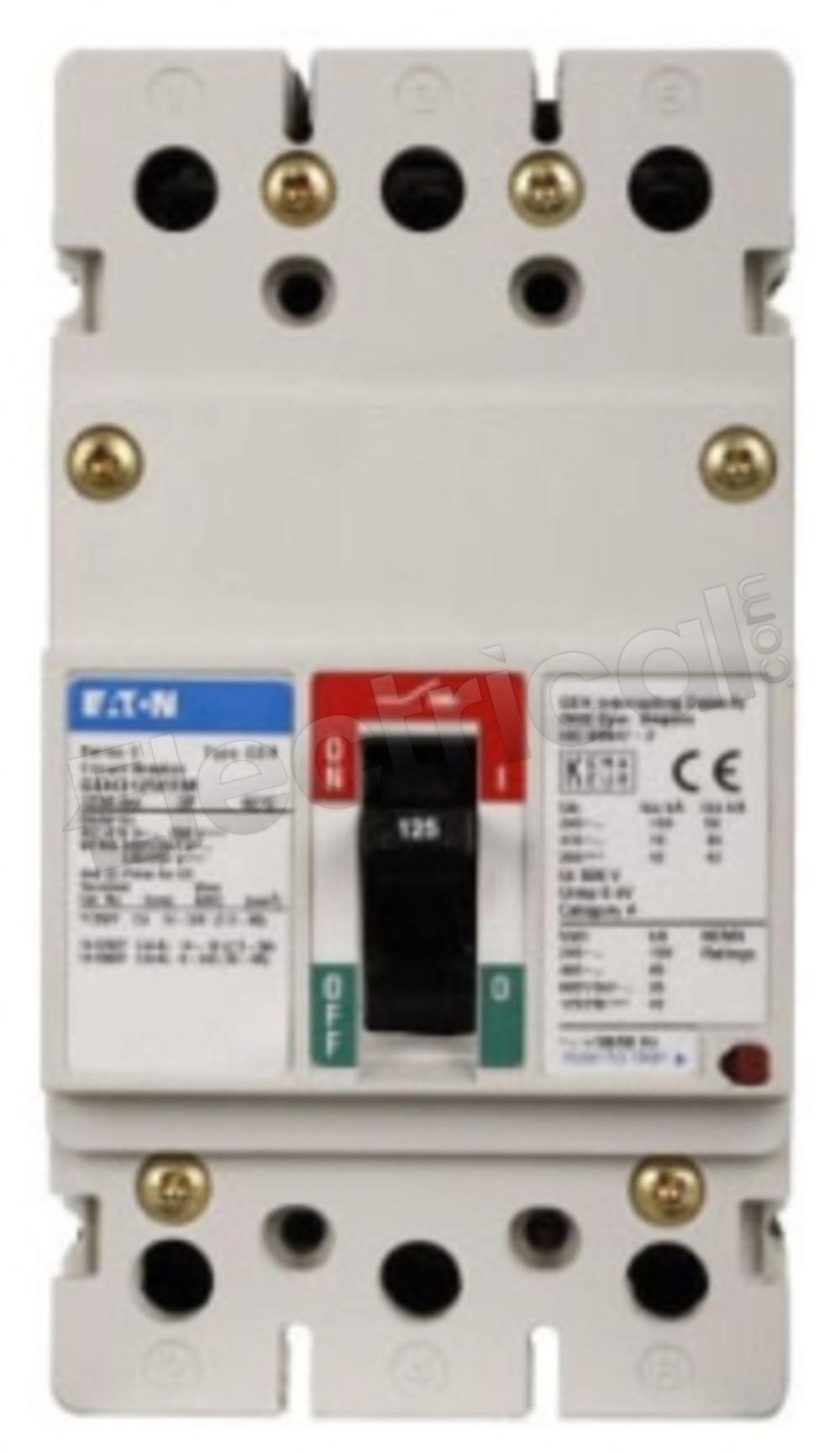

Cutler Hammer Molded Case GEH7040FFM

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

GEH7040FFM Specifications

View Specifications

GEH7040FFM, Cutler Hammer, Series G, type GEH, 4P, 3PH, 40A, 480V, 65kA@480V, high interrupting capacity, 40°C, Bolt-On, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, metric end caps, Thermal Magnetic, molded case circuit breakers

Manufacturer
Cutler Hammer
Subcategory
Molded Case
Family
Series G
Amperage
40
Voltage
480
Poles
4

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
GEH7040FFM Specifications:
Part NumberGEH7040FFM
Manufacturers
Cutler Hammer
Sub-CategoryMolded Case
FamilySeries G
TypeGEH
Weight4 lbs
Amperage40
Voltage480
Poles4
AIC Rating65kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionBolt-On
Phase3
