GES3060FFM
GES3060FFM
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
GES3060FFM Specifications
View Full SpecificationsView Specifications

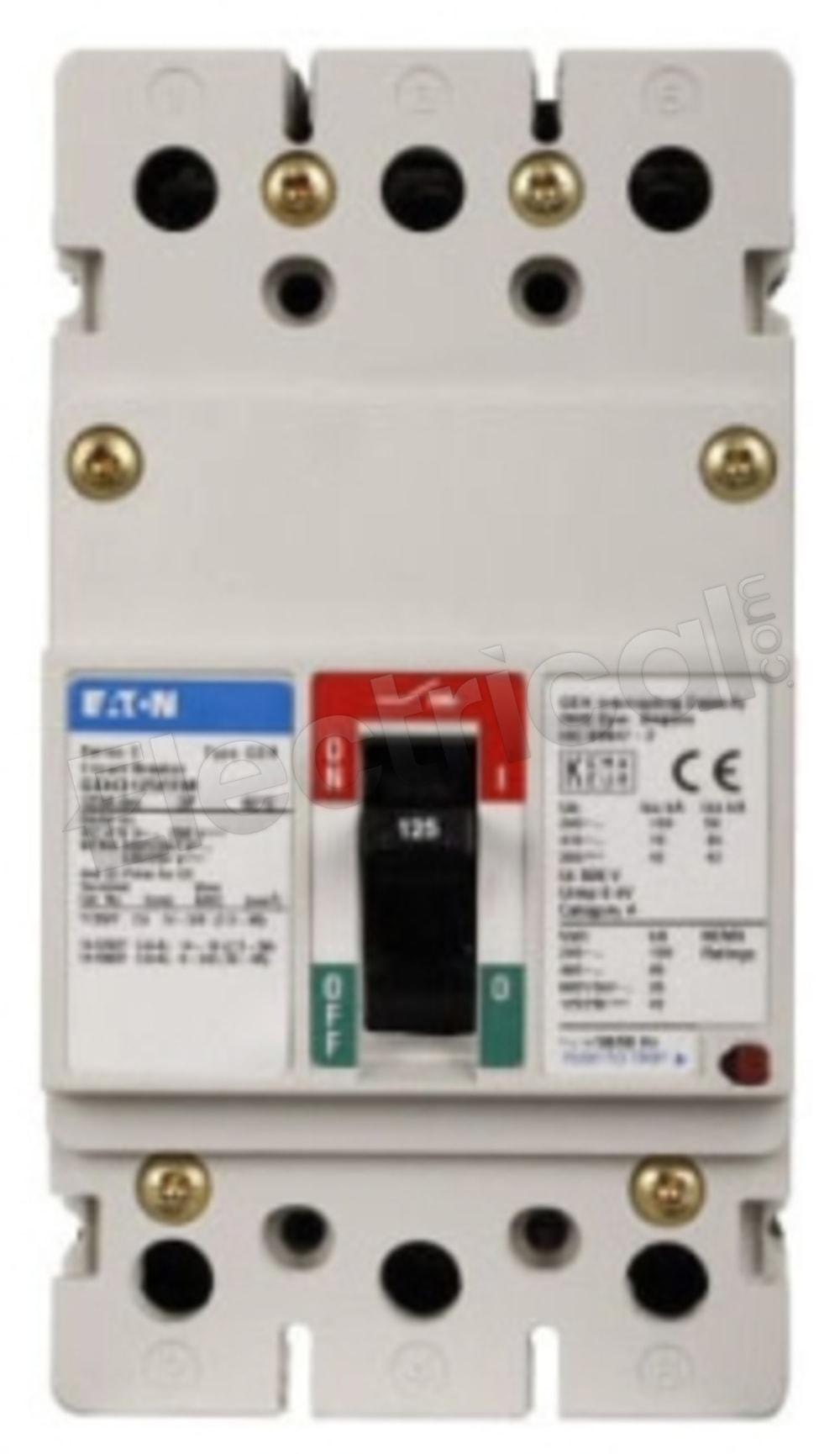

GES3060FFM, Cutler Hammer, Series G, type GES, 3P, 3PH, 60A, 480V, 35kA@480V, 40°C, Bolt-On, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, metric end caps, Thermal Magnetic, molded case circuit breakers
| Manufacturer | Cutler Hammer | Subcategory | Molded Case |
| Family | Series G | Amperage | 60 |
| Voltage | 480 | Poles | 3 |
| Manufacturer | Cutler Hammer | ||
| Subcategory | Molded Case | ||
| Family | Series G | ||
| Amperage | 60 | ||
| Voltage | 480 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
GES3060FFM Specifications:
Part NumberGES3060FFM
Manufacturers
Sub-CategoryMolded Case
FamilySeries G
TypeGES
Weight3 lbs
Amperage60
Voltage480
Poles3
AIC Rating35kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionBolt-On
Phase3
