- Circuit Breaker /
- Molded Case /
- Cutler Hammer /
GHQRSP1030
GHQRSP1030
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
GHQRSP1030 Specifications
View Full SpecificationsView Specifications

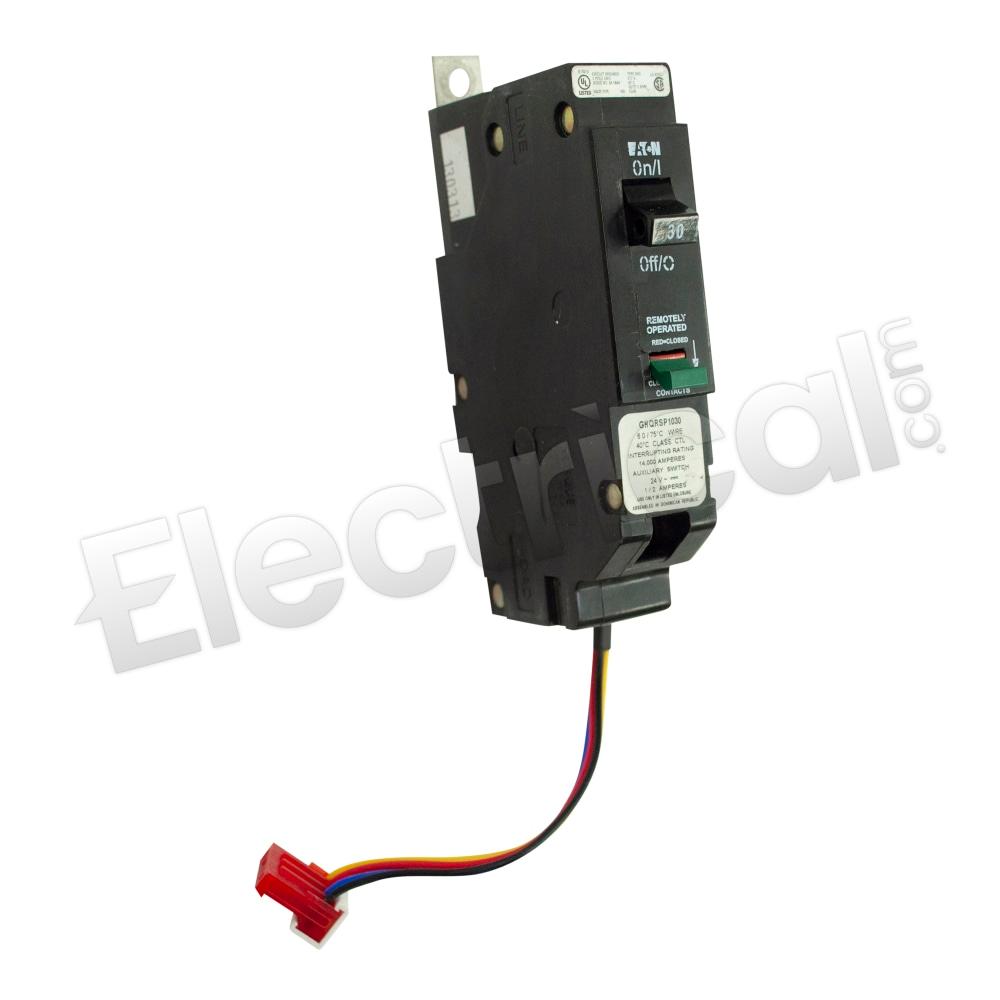

GHQRSP1030, Cutler Hammer, Quicklag, type GHQRS, 1P, 1PH, 30A, 480Y/277, 50/60Hz, 14kA@277V, UL listed, HID rated, Bolt-On branch circuit breaker designed for use in 277/480Vac panelboards, includes solenoid-operated mechanism, standard interrupting capacity, 40°C, Bolt-On, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line side lug terminals, Thermal Magnetic molded case circuit breakers
| Manufacturer | Cutler Hammer | Subcategory | Molded Case |
| Family | Quicklag | Amperage | 30 |
| Voltage | 480 | Poles | 1 |
| Manufacturer | Cutler Hammer | ||
| Subcategory | Molded Case | ||
| Family | Quicklag | ||
| Amperage | 30 | ||
| Voltage | 480 | ||
| Poles | 1 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
