HFDMP3160JL

Cutler Hammer - Molded Case

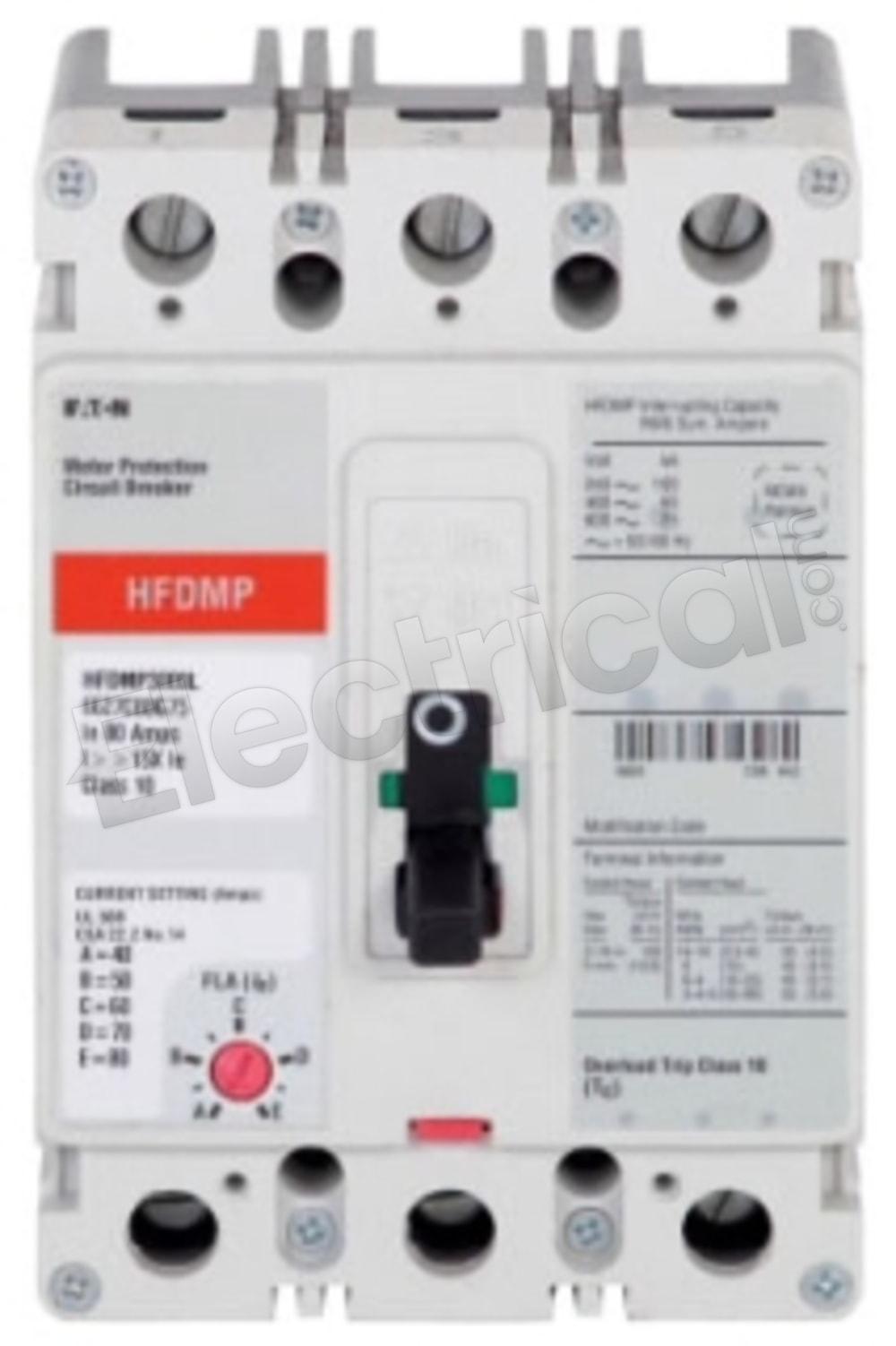

Cutler Hammer Molded Case HFDMP3160JL

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

HFDMP3160JL Specifications

View Specifications

HFDMP3160JL, Eaton, Westinghouse, Cutler Hammer, Series C, type HFDMP, 3P, 3PH, 160A, 600V, 65kA@480V, UL listed, high interrupting capacity, Bolt-On, with phase unbalance and adjustable motor class protection, complete with I - Instantaneous protection only, MCP, motor circuit protectors, FLA range 40-205A, Magnetic Only, molded case circuit breakers

Manufacturer
Cutler Hammer
Subcategory
Molded Case
Family
Series C
Amperage
160
Voltage
600
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
HFDMP3160JL Specifications:
Part NumberHFDMP3160JL
Manufacturers
Eaton, Westinghouse, Cutler Hammer
Sub-CategoryMolded Case
FamilySeries C
TypeHFDMP
UPC786685368870
Weight4.5 lbs
Amperage160
Voltage600
Poles3
AIC Rating65kA@480V
FunctionsI - Instantaneous
ProtectionMagnetic Only
ConnectionBolt-On
Frame TypeF Frame
Phase3
