    4. KDB2200

KDB2200

Cutler Hammer - Molded Case

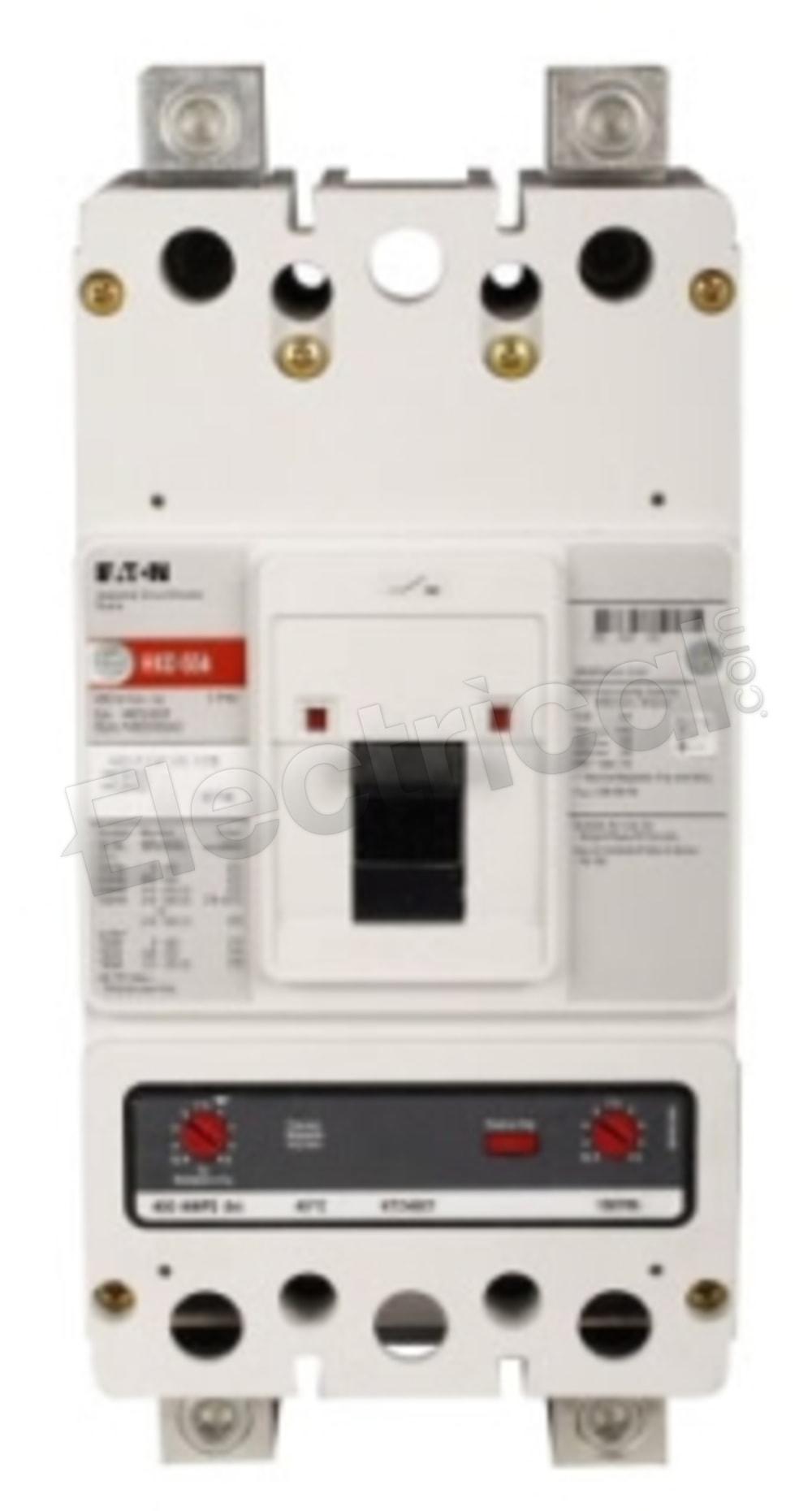

Cutler Hammer Molded Case KDB2200

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

KDB2200 Specifications

View Specifications

KDB2200, Westinghouse, Eaton, Cutler Hammer, Series C, type KDB, 2P, 1PH, 200A, 600V, 35kA@480V, standard interrupting capacity, 40°C, Feed-Thru, complete with non-interchangeable LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic molded case circuit breakers

Manufacturer
Cutler Hammer
Subcategory
Molded Case
Family
Series C
Amperage
200
Voltage
600
Poles
2

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
KDB2200 Specifications:
Part NumberKDB2200
Manufacturers
Westinghouse, Eaton, Cutler Hammer
Sub-CategoryMolded Case
FamilySeries C
TypeKDB
UPC786679349243
Weight11.5 lbs
Amperage200
Voltage600
Poles2
AIC Rating35kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Frame TypeK Frame
Phase1
