LGC340036W
LGC340036W
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
LGC340036W Specifications
View Full SpecificationsView Specifications

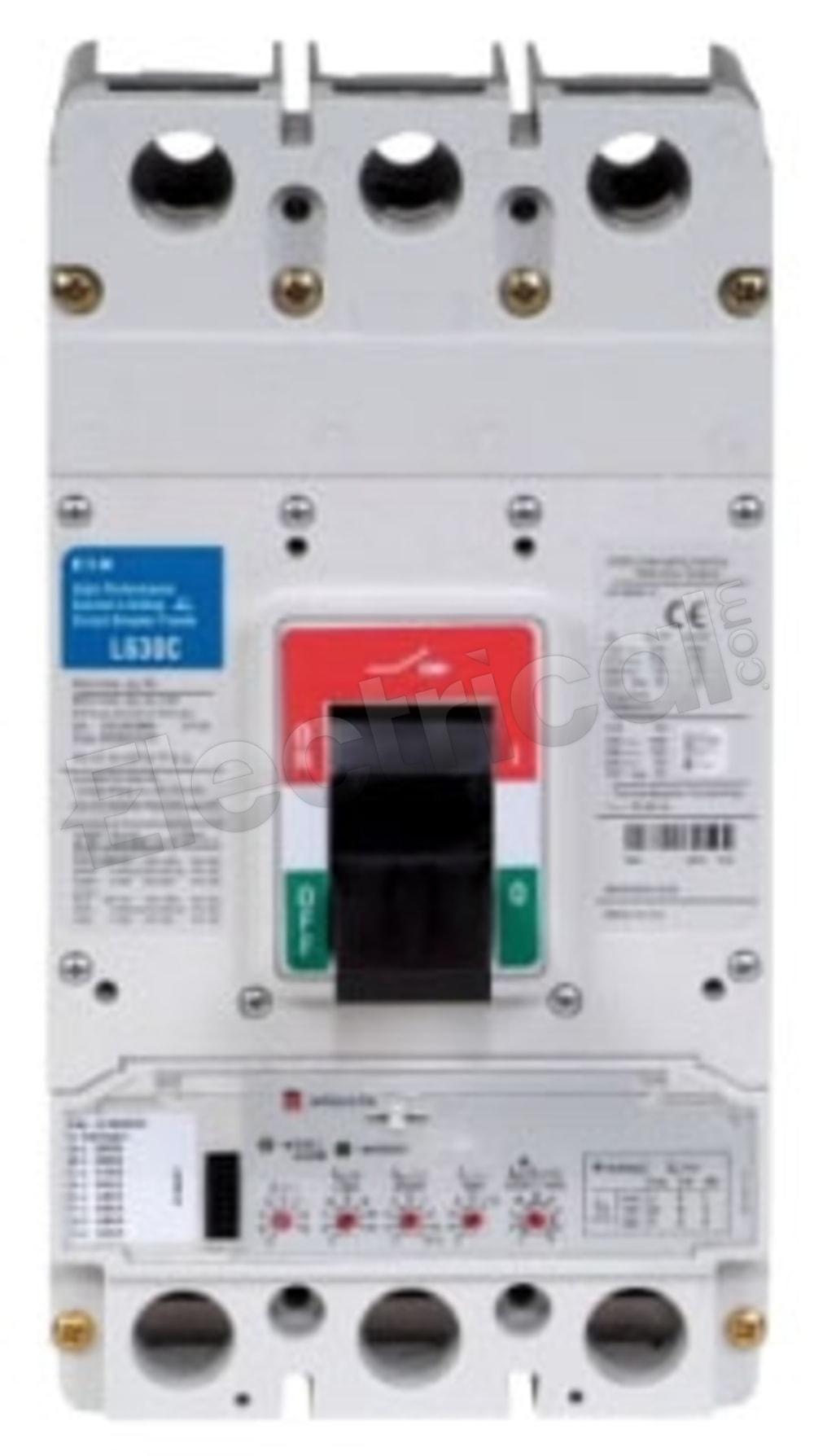

LGC340036W, Cutler Hammer, Series G, type LGC, 3P, 3PH, 400A, 600V, 100kA@480V, current limiting, Bolt-On, complete with interchangeable trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, lugs not included, Solid State electronic molded case circuit breakers
| Manufacturer | Cutler Hammer | Subcategory | Molded Case |
| Family | Series G | Amperage | 400 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Cutler Hammer | ||
| Subcategory | Molded Case | ||
| Family | Series G | ||
| Amperage | 400 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
LGC340036W Specifications:
Part NumberLGC340036W
Manufacturers
Sub-CategoryMolded Case
FamilySeries G
TypeLGC
Weight20 lbs
Amperage400
Voltage600
Poles3
AIC Rating100kA@480V
FunctionsLSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
ProtectionSolid State
ConnectionBolt-On
Phase3
Additional Information
