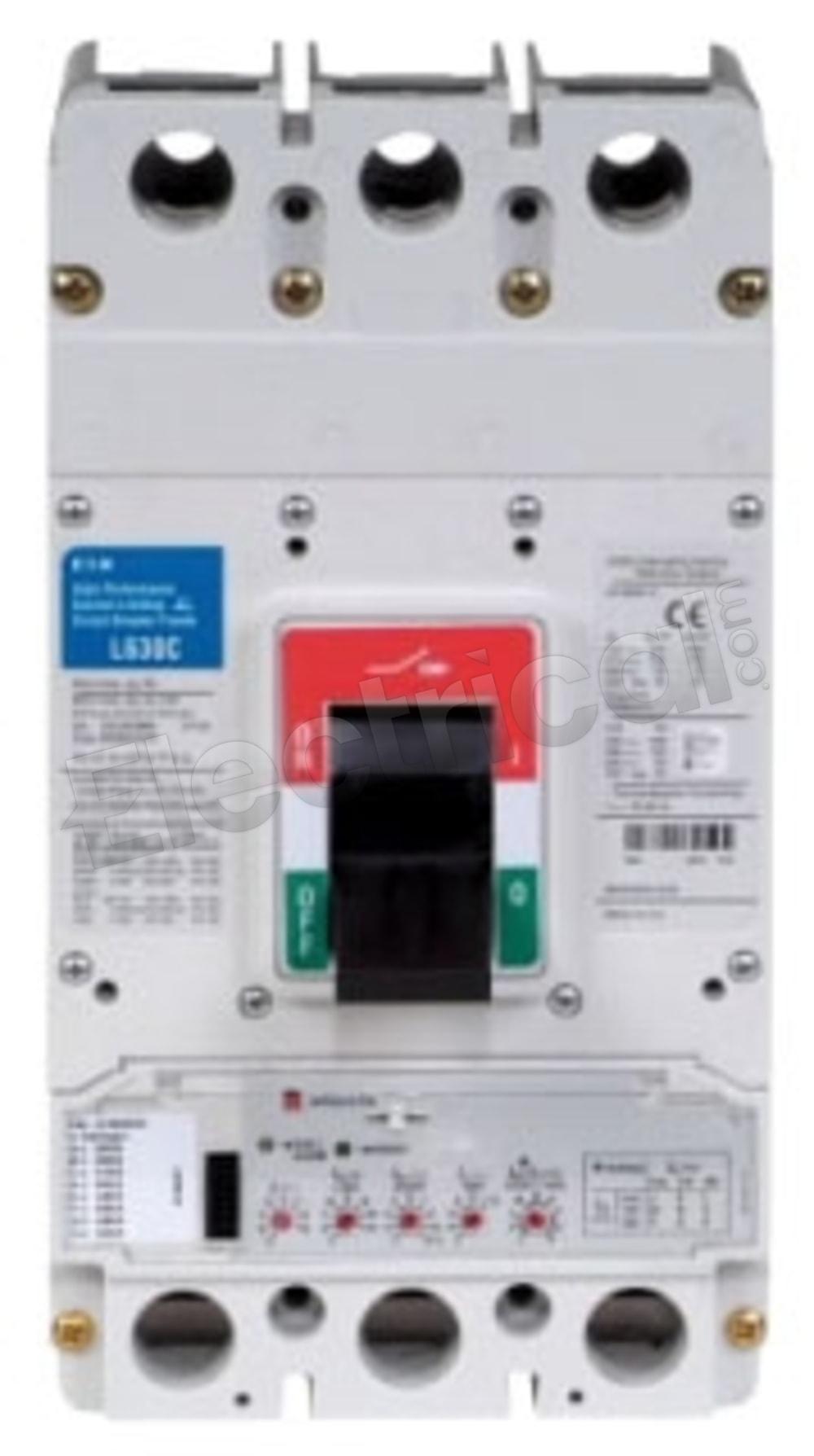

LGC363033W
LGC363033W
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
LGC363033W Specifications
View Full SpecificationsView Specifications
LGC363033W, Cutler Hammer, Series G, type LGC, 3P, 3PH, 630A, 600V, 100kA@480V, current limiting, Bolt-On, complete with interchangeable trip, LS - Long-Time and Short-Time trip functions, lugs not included, Solid State electronic molded case circuit breakers
| Manufacturer | Cutler Hammer | Subcategory | Molded Case |
| Family | Series G | Amperage | 630 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Cutler Hammer | ||
| Subcategory | Molded Case | ||
| Family | Series G | ||
| Amperage | 630 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
LGC363033W Specifications:
Part NumberLGC363033W
Manufacturers
Sub-CategoryMolded Case
FamilySeries G
TypeLGC
Weight20 lbs
Amperage630
Voltage600
Poles3
AIC Rating100kA@480V
FunctionsLS - Long-Time and Short-Time
ProtectionSolid State
ConnectionBolt-On
Phase3
