LGEDC3500FAW

Cutler Hammer - Molded Case

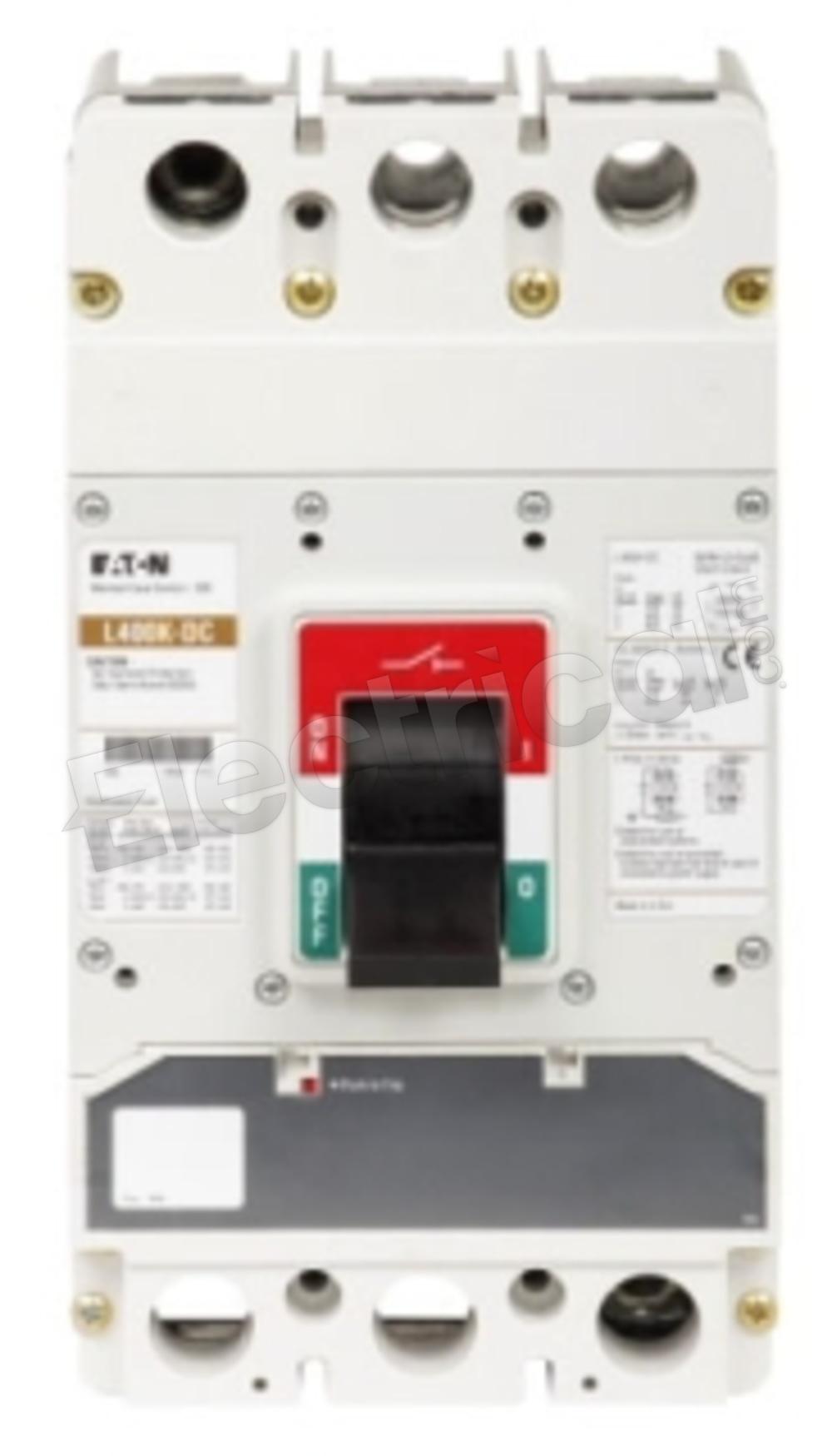

Cutler Hammer Molded Case LGEDC3500FAW

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

LGEDC3500FAW Specifications

View Specifications

LGEDC3500FAW, Cutler Hammer, Series G, type LGEDC, 3P, 3PH, 500A, 600V, DC rated, 35kA@600V, high interrupting capacity, Bolt-On, complete with trip, LI - Long Time and Instantaneous trip functions, lugs not included, Thermal Magnetic molded case circuit breakers

Manufacturer
Cutler Hammer
Subcategory
Molded Case
Family
Series G
Amperage
500
Voltage
600
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
LGEDC3500FAW Specifications:
Part NumberLGEDC3500FAW
Manufacturers
Cutler Hammer
Sub-CategoryMolded Case
FamilySeries G
TypeLGEDC
Weight20 lbs
Amperage500
Voltage600
Poles3
AIC Rating35kA@600V
FunctionsLI - Long Time and Instantaneous
ProtectionThermal Magnetic
ConnectionBolt-On
Phase3
