LGHDC3600FAW

Cutler Hammer - Molded Case

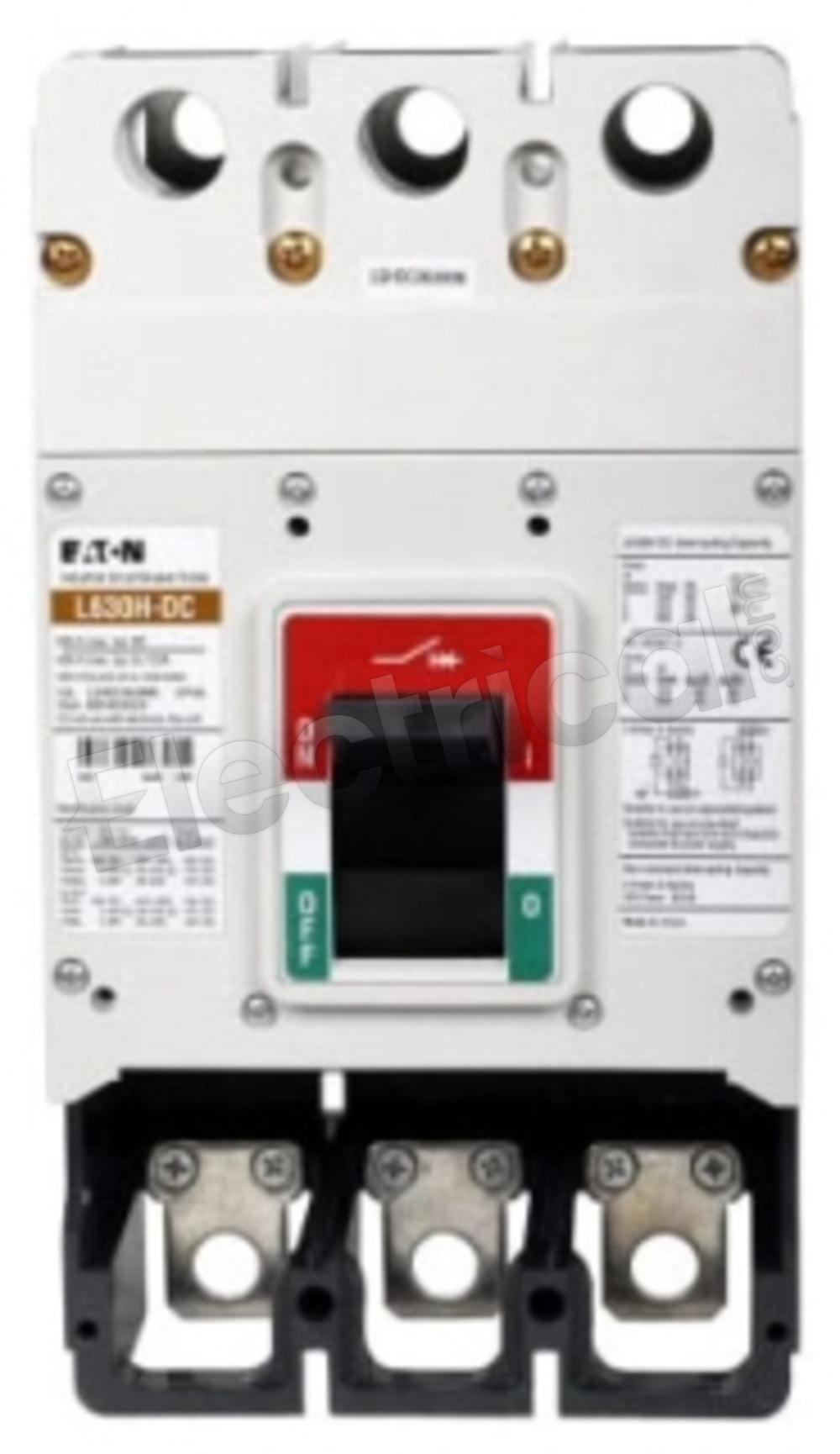

Cutler Hammer Molded Case LGHDC3600FAW

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

LGHDC3600FAW Specifications

View Specifications

LGHDC3600FAW, Cutler Hammer, Series G, type LGHDC, 3P, 3PH, 600A, 600V, DC rated, 65kA@600V, high interrupting capacity, Bolt-On, complete with trip, LI - Long-Time and Instantaneous trip functions, lugs not included, Thermal Magnetic molded case circuit breakers

Manufacturer
Cutler Hammer
Subcategory
Molded Case
Family
Series G
Amperage
600
Voltage
600
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
LGHDC3600FAW Specifications:
Part NumberLGHDC3600FAW
Manufacturers
Cutler Hammer
Sub-CategoryMolded Case
FamilySeries G
TypeLGHDC
Weight20 lbs
Amperage600
Voltage600
Poles3
AIC Rating65kA@600V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionBolt-On
Phase3
