QCGFEP2025W1

Cutler Hammer - Molded Case

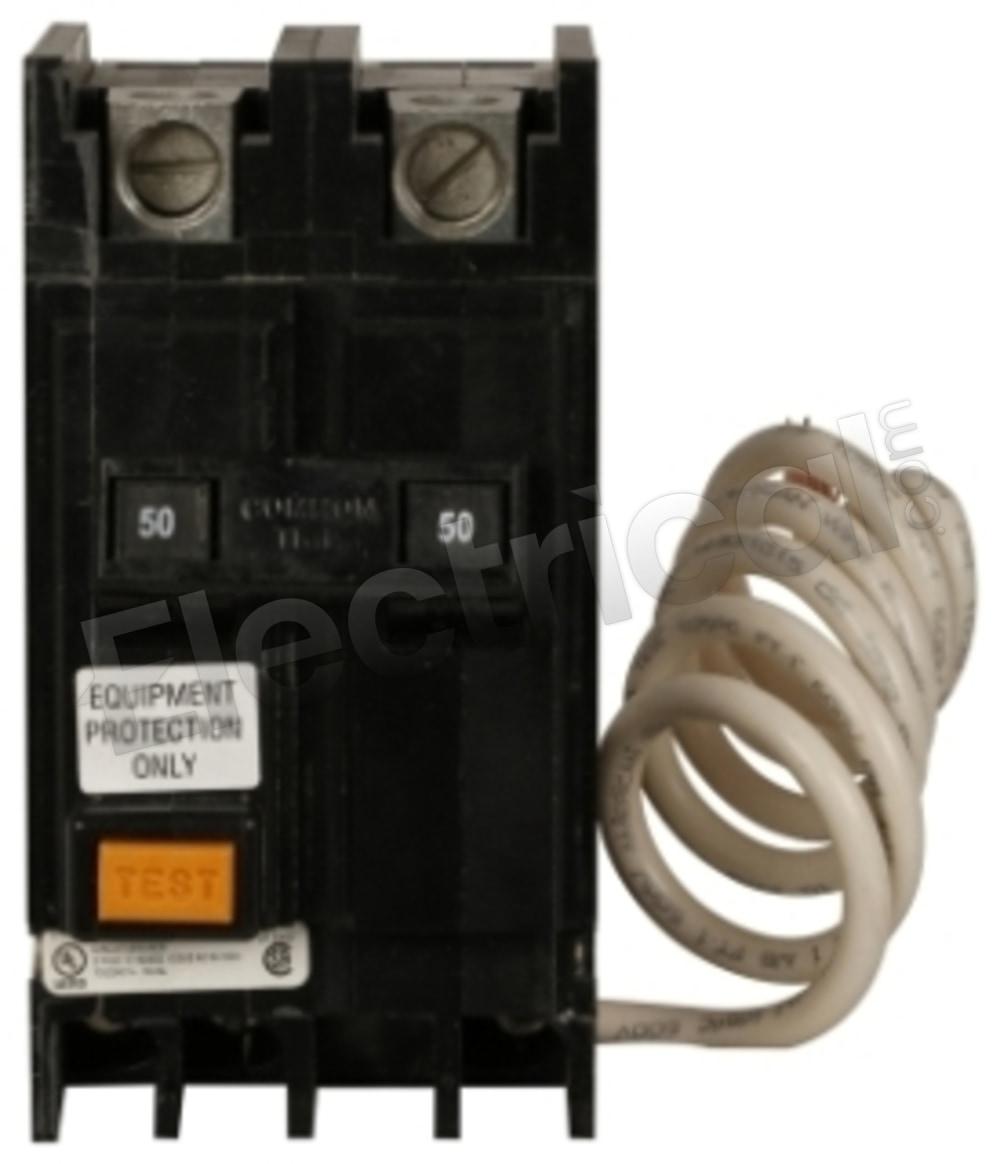

Cutler Hammer Molded Case QCGFEP2025W1

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

QCGFEP2025W1 Specifications

View Specifications

QCGFEP2025W1, Cutler Hammer, Quicklag, type QCGF, 2P, 1PH, 25A, 120/240V, 10kA@240V, standard interrupting capacity, 40ºC, 30mA sensitivity, Feed-Thru, complete with ground fault equipment protection and bell alarm, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, molded case circuit breakers

Manufacturer
Cutler Hammer
Subcategory
Molded Case
Family
Quicklag
Amperage
25
Voltage
240
Poles
2

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
QCGFEP2025W1 Specifications:
Part NumberQCGFEP2025W1
Manufacturers
Cutler Hammer
Sub-CategoryMolded Case
FamilyQuicklag
TypeQCGF
Amperage25
Voltage240
Poles2
AIC Rating10kA@240V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Phase1
