QCR2020T

Cutler Hammer - Molded Case

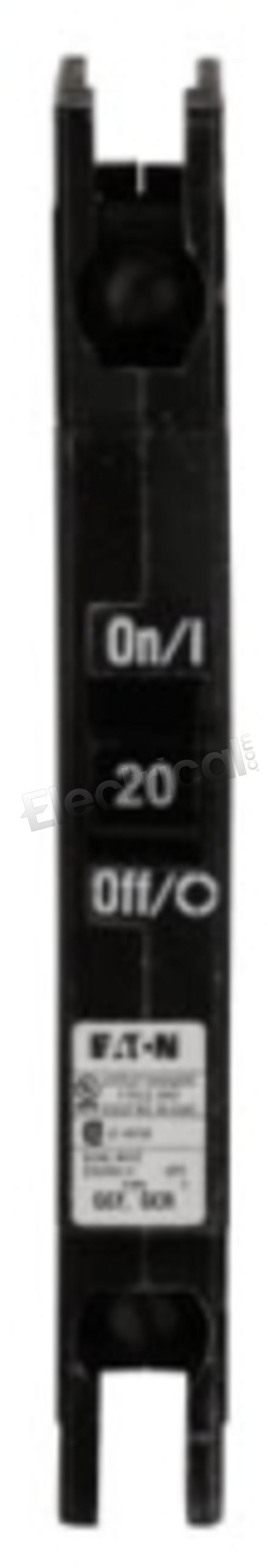

Cutler Hammer Molded Case QCR2020T

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

QCR2020T Specifications

View Specifications

QCR2020T, Cutler Hammer, Quicklag, type QCR, 2P, 1PH, 20A, 120/240V, 10kA@240V, standard interrupting capacity, Feed-Thru, rear-mounted, UL listed for use as branch circuit protectors, complete with trip, LI - Long-Time and Instantaneous trip functions, and line and load side ring terminal connection, Thermal Magnetic, molded case miniature industrial circuit breakers

Manufacturer
Cutler Hammer
Subcategory
Molded Case
Family
Quicklag
Amperage
20
Voltage
240
Poles
2

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
QCR2020T Specifications:
Part NumberQCR2020T
Manufacturers
Cutler Hammer
Sub-CategoryMolded Case
FamilyQuicklag
TypeQCR
Weight0.02 lbs
Amperage20
Voltage240
Poles2
AIC Rating10kA@240V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Phase1
