QCR3015HT Specifications
View Full SpecificationsView Specifications

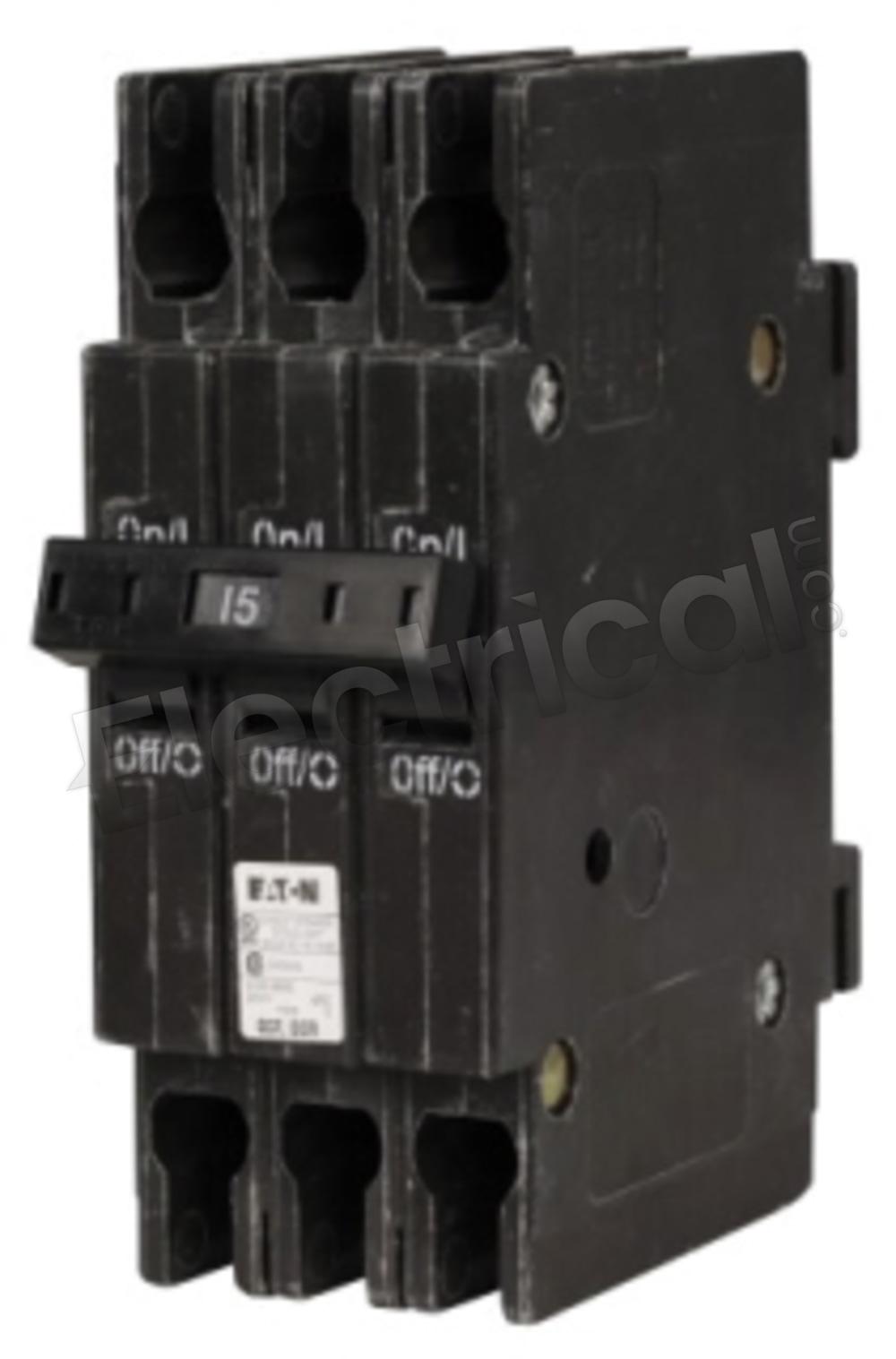

QCR3015HT, Cutler Hammer, Quicklag, type QCR, 3P, 3PH, 15A, 240V, 10kA@240V, standard interrupting capacity, Feed-Thru, rear-mounted, UL listed for use as branch circuit protectors, complete with trip, LI - Long-Time and Instantaneous trip functions, and line & load side ring terminal connection, Thermal Magnetic, molded case miniature industrial circuit breakers
| Manufacturer | Cutler Hammer | Subcategory | Molded Case |
| Family | Quicklag | Amperage | 15 |
| Voltage | 240 | Poles | 3 |
| Manufacturer | Cutler Hammer | ||
| Subcategory | Molded Case | ||
| Family | Quicklag | ||
| Amperage | 15 | ||
| Voltage | 240 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
QCR3015HT Specifications:
Part NumberQCR3015HT
Manufacturers
Sub-CategoryMolded Case
FamilyQuicklag
TypeQCR
Weight3 lbs
Amperage15
Voltage240
Poles3
AIC Rating10kA@240V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Phase3
