RFA3030 Specifications
View Full SpecificationsView Specifications

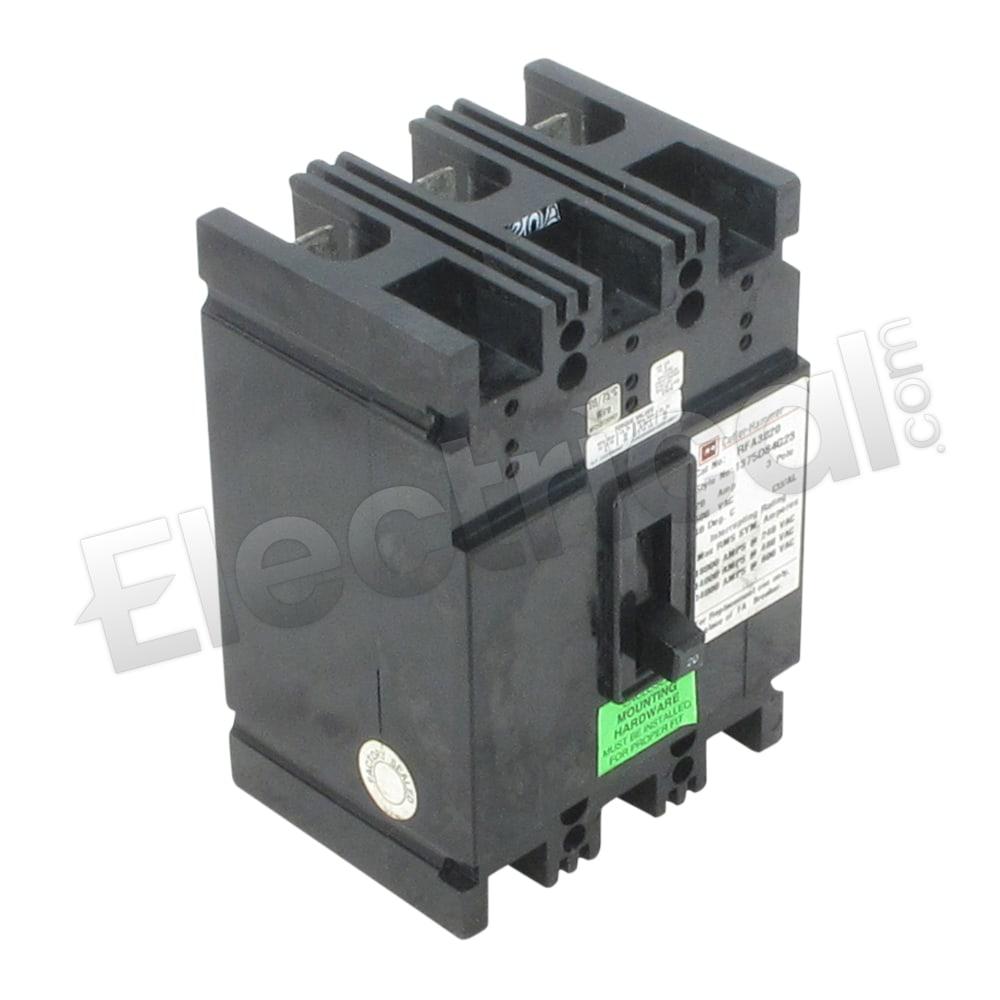

RFA3030 Cutler Hammer, Westinghouse FA Series, type RFA, 3P, 3PH, 30A, 600V, 14kA@480V, standard interrupting capacity, 40ºC, Bolt-On, LI - Long-Time and Instantaneous trip functions, complete with load side lug terminals, Thermal Magnetic, replacement molded case circuit breakers; these breakers are now obsolete, however, we do still stock them
| Manufacturer | Cutler Hammer | Subcategory | Molded Case |
| Family | FA Series | Amperage | 30 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Cutler Hammer | ||
| Subcategory | Molded Case | ||
| Family | FA Series | ||
| Amperage | 30 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
RFA3030 Specifications:
Part NumberRFA3030
Manufacturers
Sub-CategoryMolded Case
FamilyFA Series
TypeRFA
Weight11 lbs
Amperage30
Voltage600
Poles3
AIC Rating14kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionBolt-On
Phase3
