- Circuit Breaker /
- Molded Case /
- Eaton /

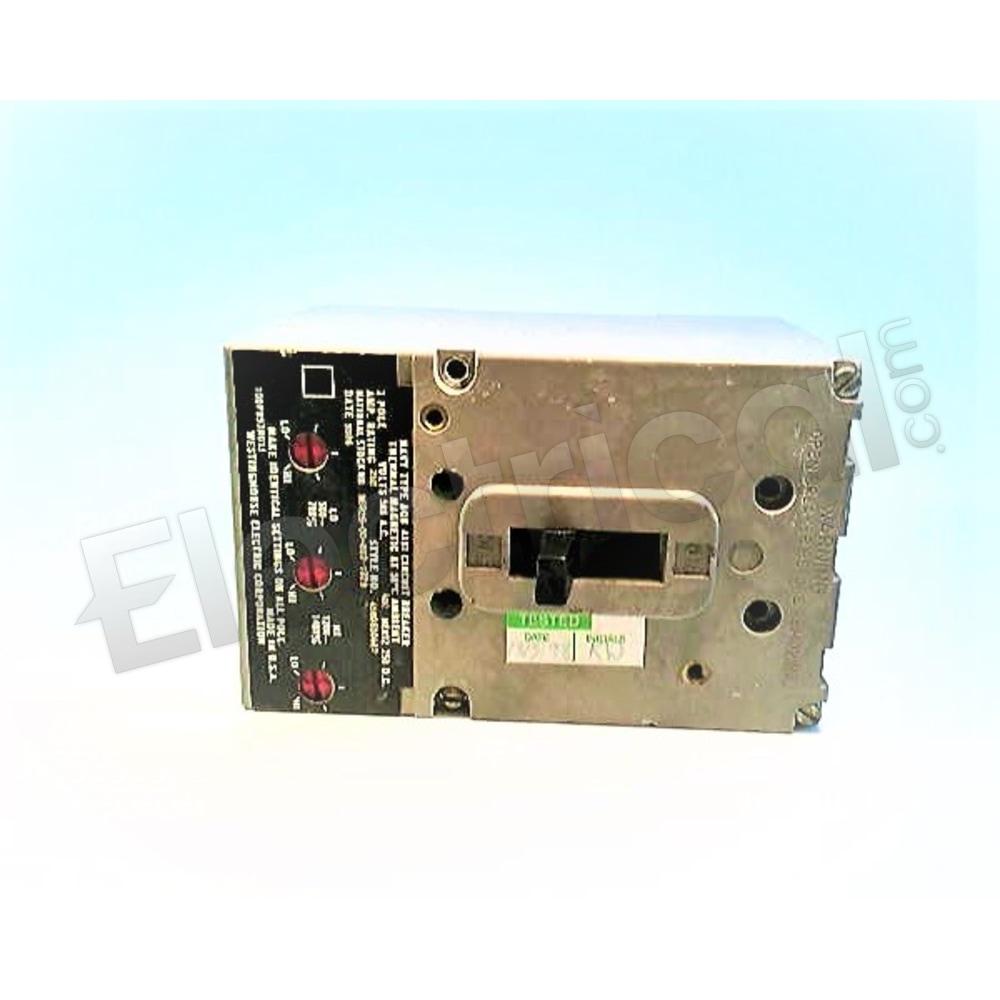

458D510G12
458D510G12
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
458D510G12 Specifications
View Full SpecificationsView Specifications
458D510G12, Eaton, Naval, type AQB-A101, 400 cycles, 3P, 3PH, 25A, 500Vac/250Vdc, 15kA@500V, 50?C, Plug-In, LO trip setting: 300-350; HI trip setting: 125-175, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers for naval shipboard use
| Manufacturer | Eaton | Subcategory | Molded Case |
| Family | Naval | Amperage | 25 |
| Voltage | 500 | Poles | 3 |
| Manufacturer | Eaton | ||
| Subcategory | Molded Case | ||
| Family | Naval | ||
| Amperage | 25 | ||
| Voltage | 500 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
458D510G12 Specifications:
Part Number458D510G12
Manufacturers
Sub-CategoryMolded Case
FamilyNaval
TypeAQB-A101
UPC786679410561
Weight6.2 lbs
Amperage25
Voltage500
Poles3
AIC Rating15kA@500V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionPlug-In
Frame TypeAQB
Phase3
