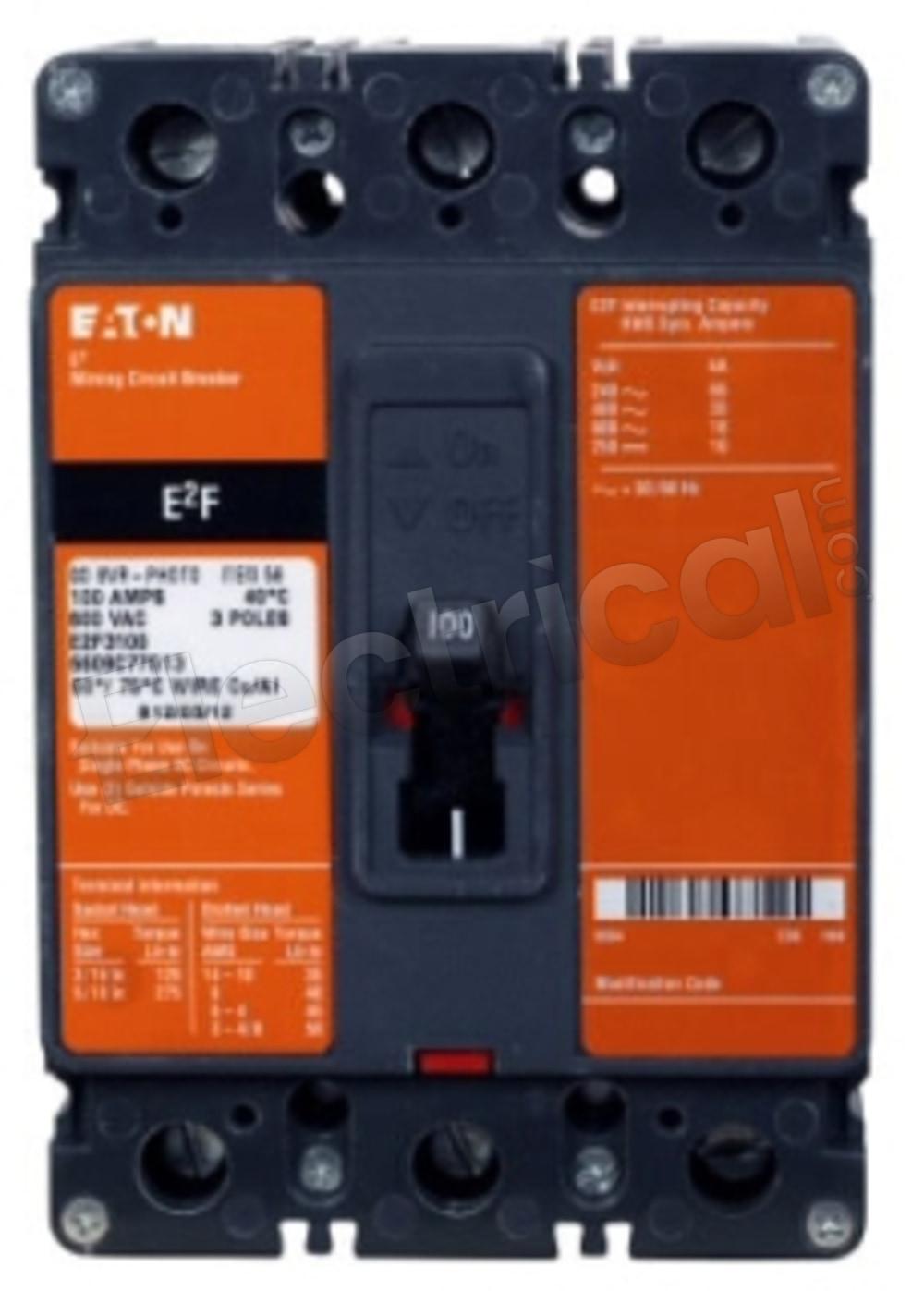

E2F070MM
E2F070MM
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
E2F070MM Specifications
View Full SpecificationsView Specifications
E2F070MM, Westinghouse, Cutler Hammer, Eaton, Series C, E2 mining service breakers, type E2F, 3P, 3PH, 70A, 600V, 250Vdc, 18kA@600V, standard interrupting capacity, Feed-Thru, complete with non-interchangeable trip, I - Instantaneous protection only and line & load side lug terminals, MCP, motor circuit protectors, magnetic range 210-700A, Magnetic Only, molded case circuit breakers
| Manufacturer | Eaton | Subcategory | Molded Case |
| Family | Series C | Amperage | 70 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Eaton | ||
| Subcategory | Molded Case | ||
| Family | Series C | ||
| Amperage | 70 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
