E2M3800W

Eaton - Molded Case

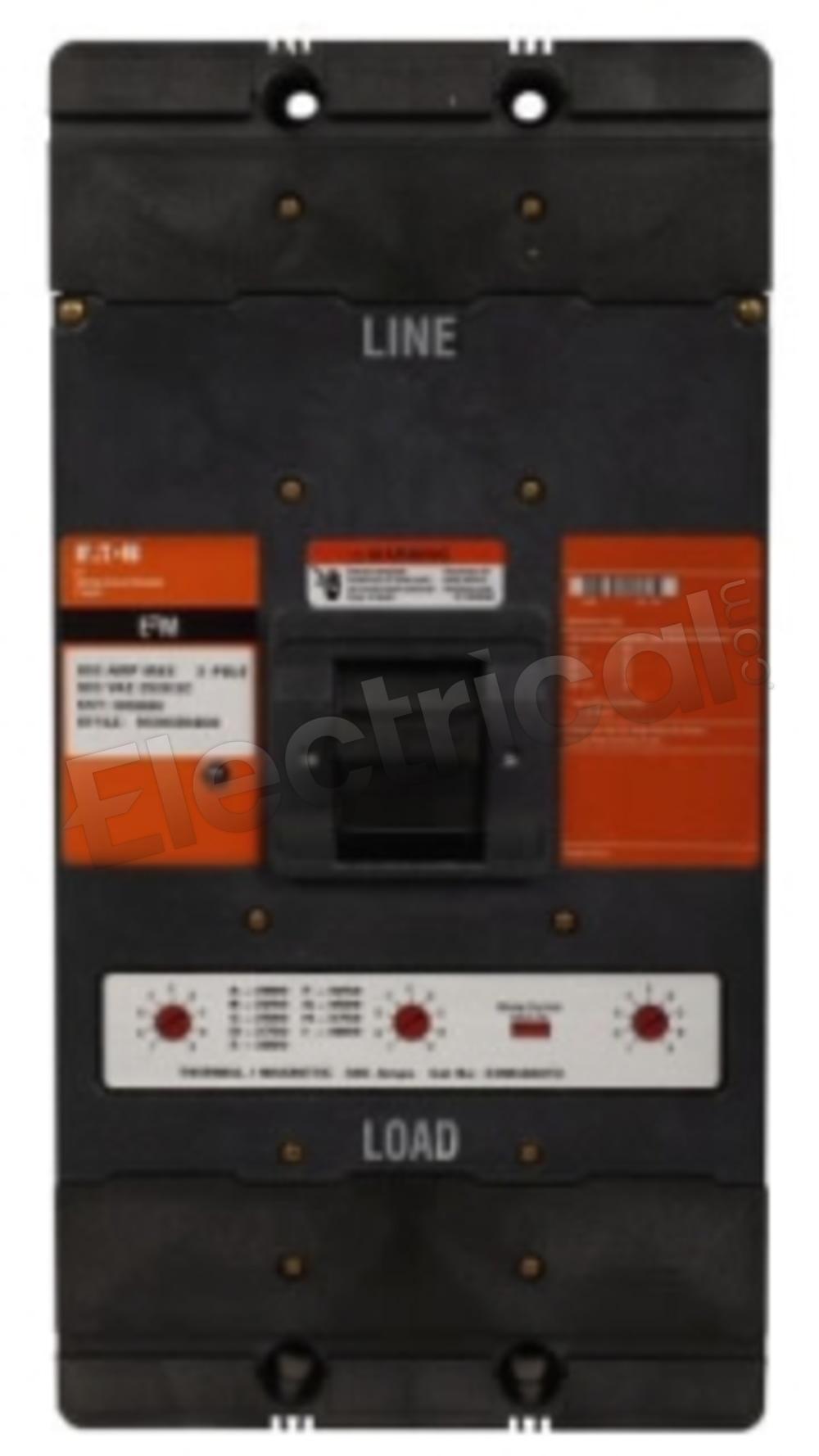

Eaton Molded Case E2M3800W

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

E2M3800W Specifications

View Specifications

E2M3800W, Westinghouse, Cutler Hammer, Eaton, Series C, E2 mining service breakers, type E2M, 3P, 3PH, 800A, 600V, 250Vdc, 25kA@600V, standard interrupting capacity, Bolt-On, complete with interchangeable trip, LI - Long-Time and Instantaneous trip functions, magnetic range 2000-4000A, lugs not included, Thermal Magnetic, molded case circuit breakers

Manufacturer
Eaton
Subcategory
Molded Case
Family
Series C
Amperage
800
Voltage
600
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
E2M3800W Specifications:
Part NumberE2M3800W
Manufacturers
Westinghouse, Cutler Hammer, Eaton
Sub-CategoryMolded Case
FamilySeries C
TypeE2M
UPC786685242699
Weight32 lbs
Amperage800
Voltage600
Poles3
AIC Rating25kA@600V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionBolt-On
Phase3
