- Circuit Breaker /
- Molded Case /
- Eaton /

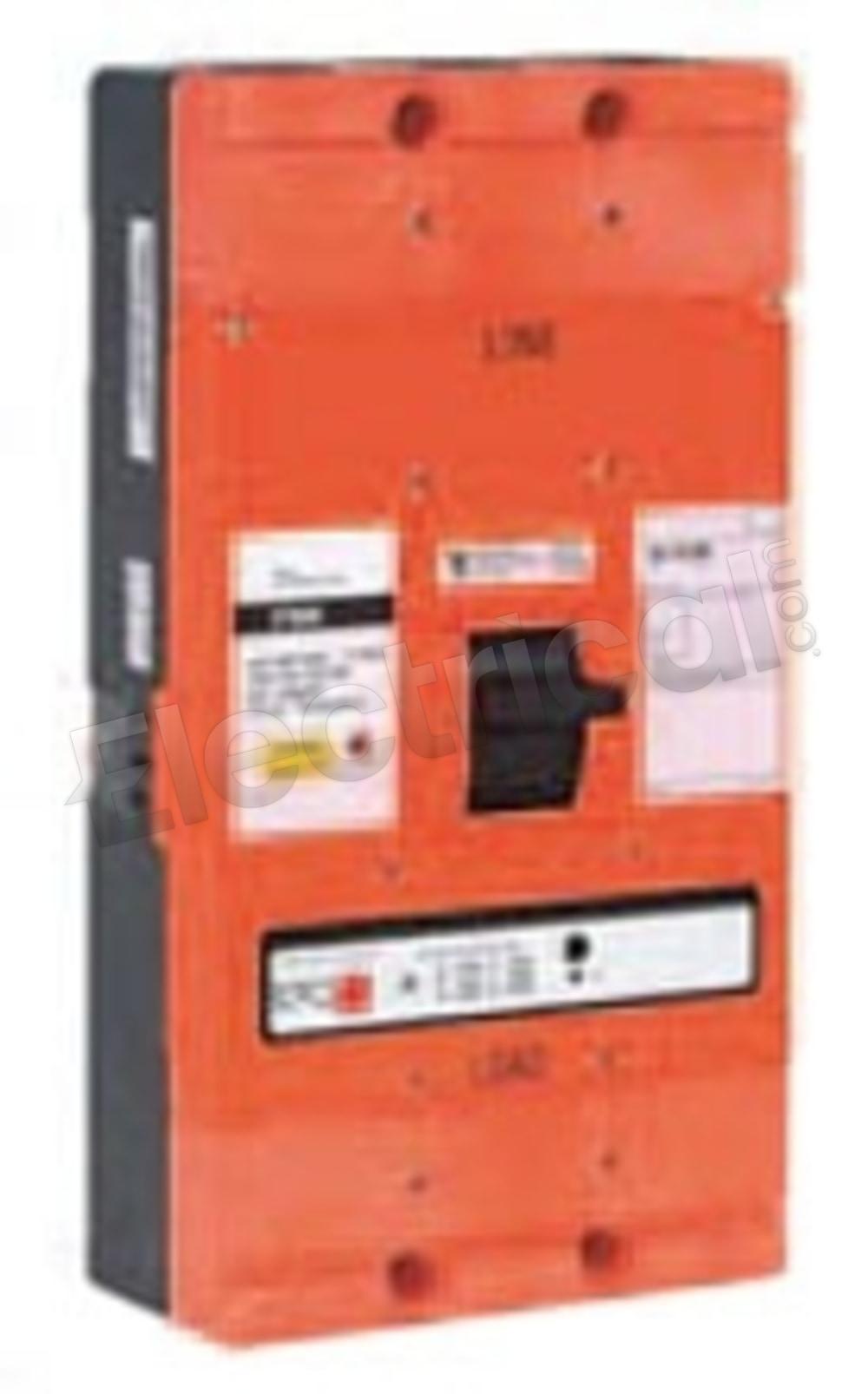

E2ME3800M2W
E2ME3800M2W
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
E2ME3800M2W Specifications
View Full SpecificationsView Specifications
E2ME3800M2W, Westinghouse, Eaton, Cutler Hammer, Series C, E2 mining service breakers, type E2ME, 3P, 3PH, 800A, 600V, 25kA@600V, standard interrupting capacity, Bolt-On, complete with non-interchangeable trip, I - Instantaneous trip functions, magnetic range 1000-4000A, lugs not included, Solid State electronic, molded case circuit breakers
| Manufacturer | Eaton | Subcategory | Molded Case |
| Family | Series C | Amperage | 800 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Eaton | ||
| Subcategory | Molded Case | ||
| Family | Series C | ||
| Amperage | 800 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
E2ME3800M2W Specifications:
Part NumberE2ME3800M2W
Manufacturers
Sub-CategoryMolded Case
FamilySeries C
TypeE2ME
UPC786685242736
Weight32 lbs
Amperage800
Voltage600
Poles3
AIC Rating25kA@600V
FunctionsI - Instantaneous
ProtectionSolid State
ConnectionBolt-On
Phase3
