EDC2125W

Eaton - Molded Case

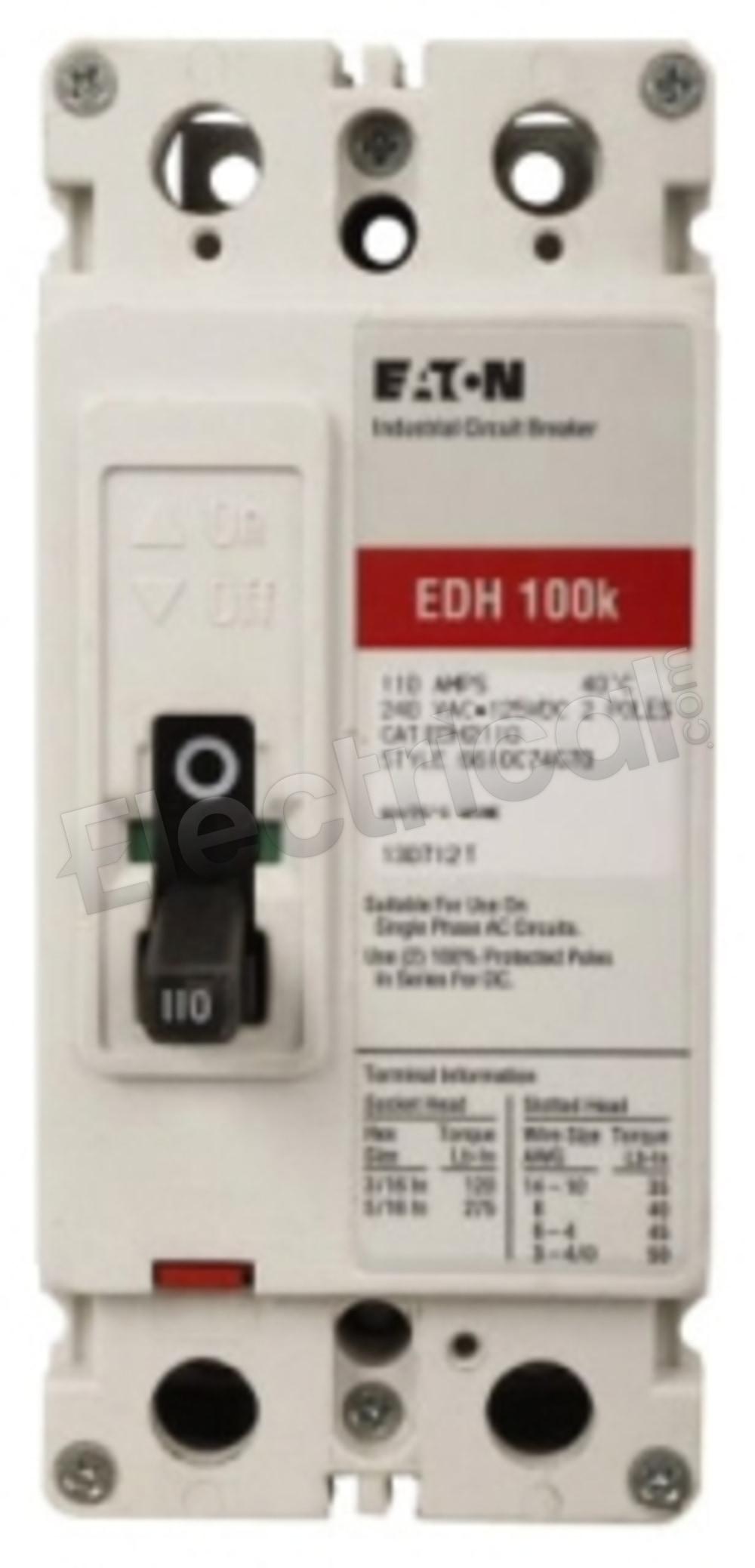

Eaton Molded Case EDC2125W

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

EDC2125W Specifications

View Specifications

EDC2125W, Cutler Hammer, Eaton, Westinghouse, Series C, type EDC, 2P, 2PH, 125A, 240V, 200kA@240V, current limiting, 40ºC, Bolt-On, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, lugs not included, Thermal Magnetic, molded case circuit breakers

Manufacturer
Eaton
Subcategory
Molded Case
Family
Series C
Amperage
125
Voltage
240
Poles
2

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
EDC2125W Specifications:
Part NumberEDC2125W
Manufacturers
Cutler Hammer, Eaton, Westinghouse
Sub-CategoryMolded Case
FamilySeries C
TypeEDC
UPC786679456828
Weight3 lbs
Amperage125
Voltage240
Poles2
AIC Rating200kA@240V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
TerminalsWithout
ConnectionBolt-On
Frame TypeF Frame
Phase2
