EDS2225L

Eaton - Molded Case

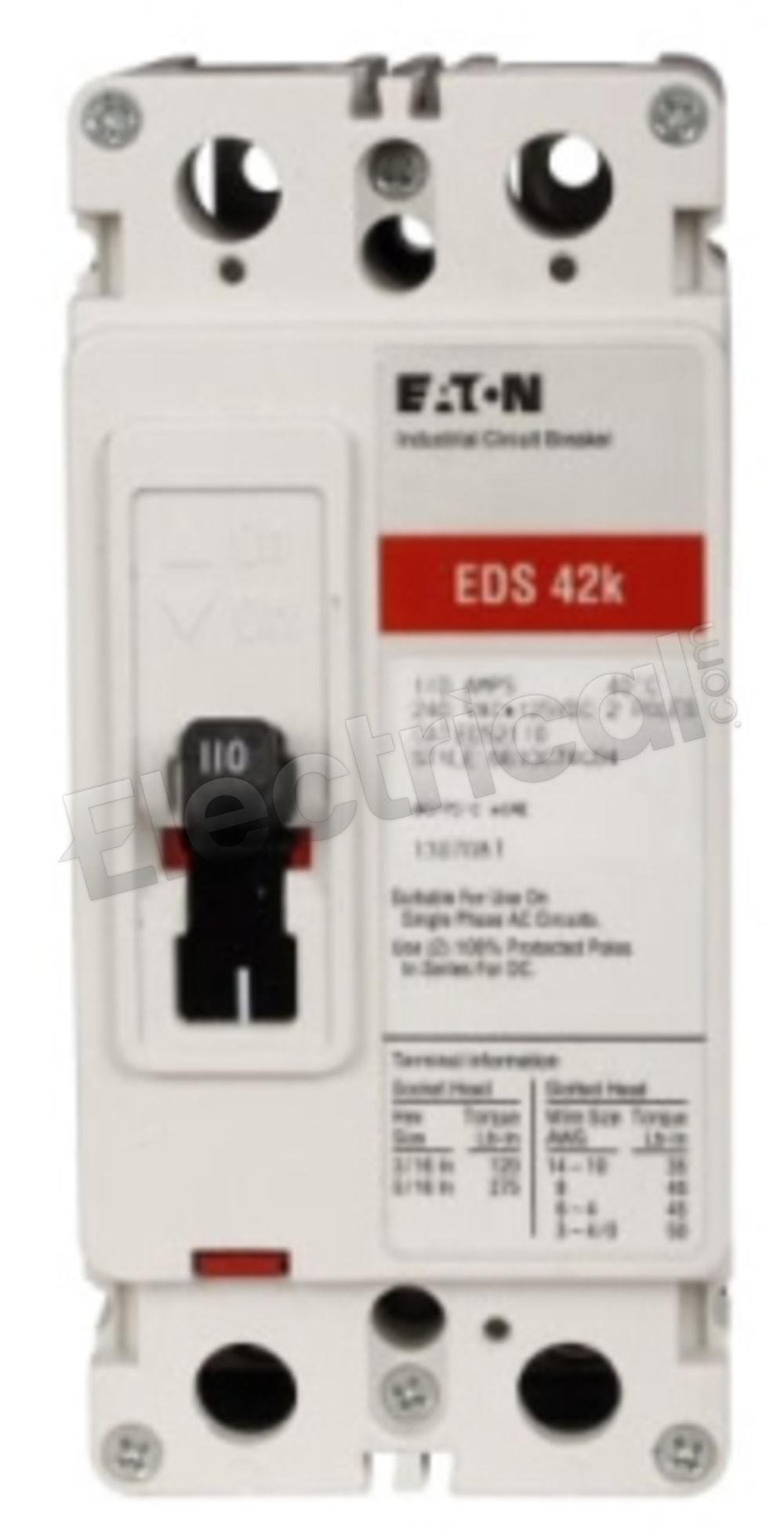

Eaton Molded Case EDS2225L

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

EDS2225L Specifications

View Specifications

EDS2225L, Cutler Hammer, Westinghouse, Eaton, Series C, type EDS, 2P, 2PH, 225A, 240V, 42kA@240V, standard interrupting capacity, 40℃, Feed-Thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, suitable for reverse fed applications, Thermal Magnetic, molded case circuit breakers

Manufacturer
Eaton
Subcategory
Molded Case
Family
Series C
Amperage
225
Voltage
240
Poles
2

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
EDS2225L Specifications:
Part NumberEDS2225L
Manufacturers
Cutler Hammer, Westinghouse, Eaton
Sub-CategoryMolded Case
FamilySeries C
TypeEDS
UPC782116976249
Weight4 lbs
Amperage225
Voltage240
Poles2
AIC Rating42kA@240V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
TerminalsLine and load
ConnectionFeed-Thru
Frame TypeF Frame
Phase2
