FD4040E

Eaton - Molded Case

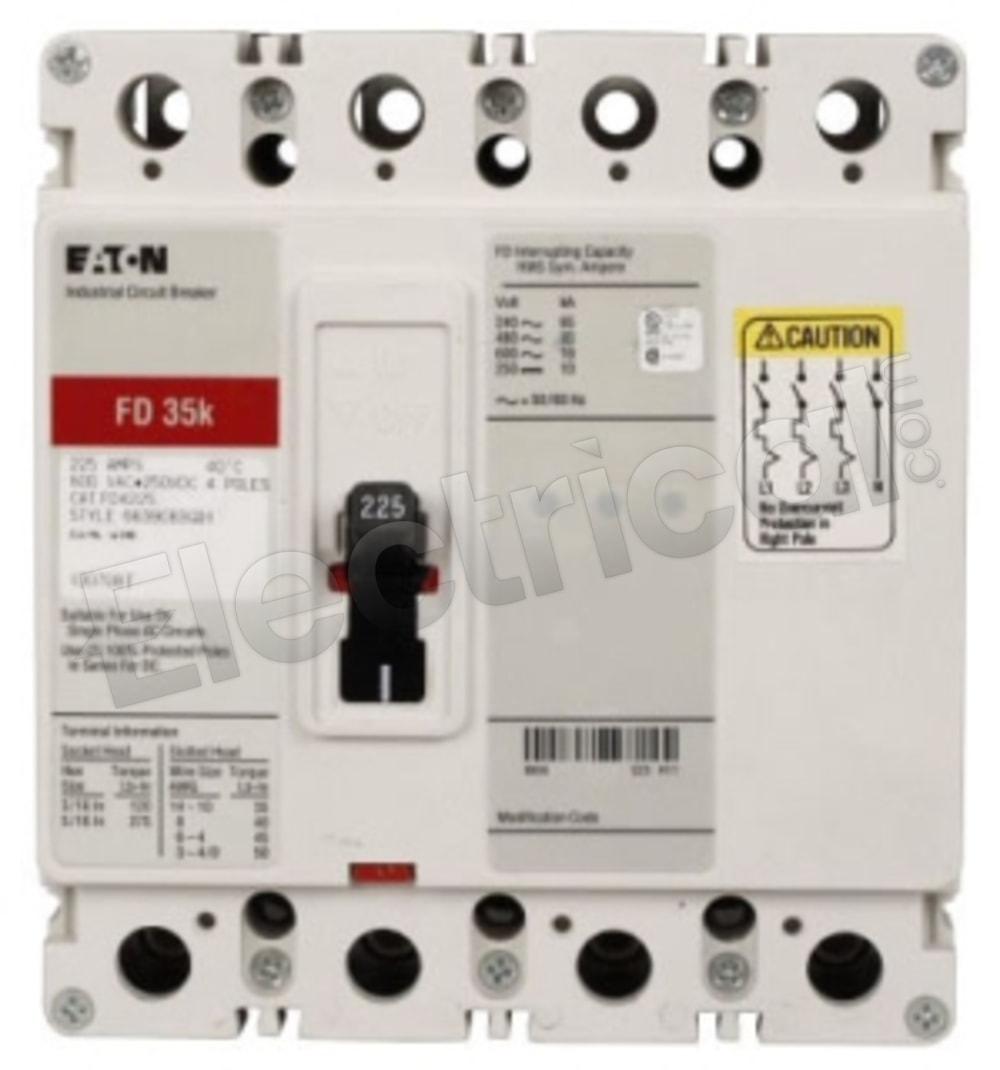

Eaton Molded Case FD4040E

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

FD4040E Specifications

View Specifications

FD4040E, Cutler Hammer, Eaton, Westinghouse, Series C, type FD, 100% protected neutral pole, 4P, 3PH, 40A, 600V, 25kA@480V, standard interrupting capacity, 40℃, Bolt-On, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic, molded case circuit breakers

Manufacturer
Eaton
Subcategory
Molded Case
Family
Series C
Amperage
40
Voltage
600
Poles
4

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
FD4040E Specifications:
Part NumberFD4040E
Manufacturers
Cutler Hammer, Eaton, Westinghouse
Sub-CategoryMolded Case
FamilySeries C
TypeFD
UPC786679249185
Weight4.5 lbs
Amperage40
Voltage600
Poles4
AIC Rating25kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionBolt-On
Frame TypeF Frame
Phase3
