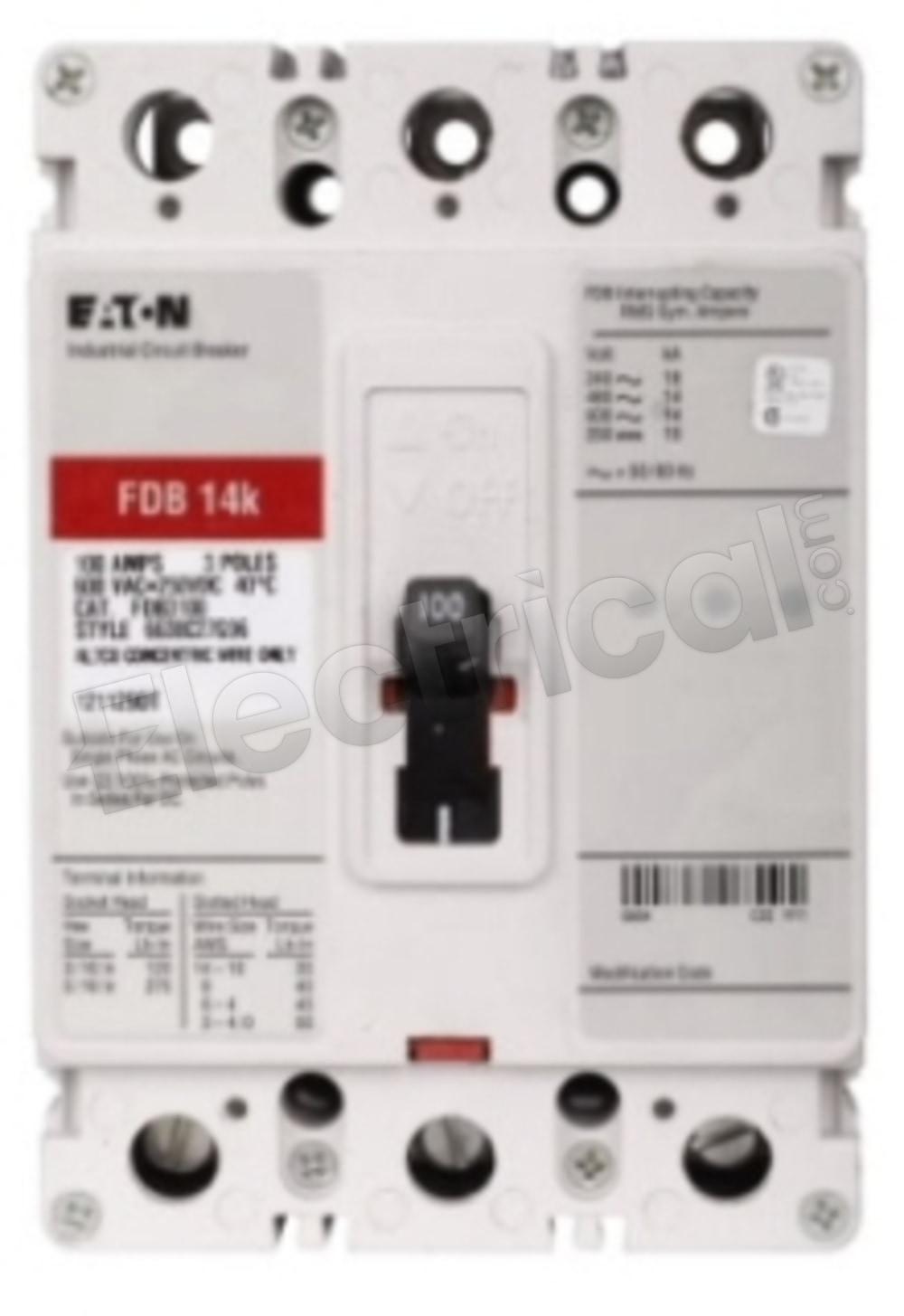

FDB3020S
FDB3020S
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
FDB3020S Specifications
View Full SpecificationsView Specifications
FDB3020S, Eaton, Cutler Hammer, Series C, type FDB, 3P, 3PH, 20A, 600V, 14kA@480V, standard interrupting capacity, 40°C, Bolt-On, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and stainless steel lug terminals, Thermal Magnetic, molded case circuit breakers
| Manufacturer | Eaton | Subcategory | Molded Case |
| Family | Series C | Amperage | 20 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Eaton | ||
| Subcategory | Molded Case | ||
| Family | Series C | ||
| Amperage | 20 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
FDB3020S Specifications:
Part NumberFDB3020S
Manufacturers
Sub-CategoryMolded Case
Other NamesFDB302OS
FamilySeries C
TypeFDB
Weight4 lbs
Amperage20
Voltage600
Poles3
AIC Rating14kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
TerminalsStainless steel
ConnectionBolt-On
Frame TypeF Frame
Phase3
