FDCE316032L

Eaton - Molded Case

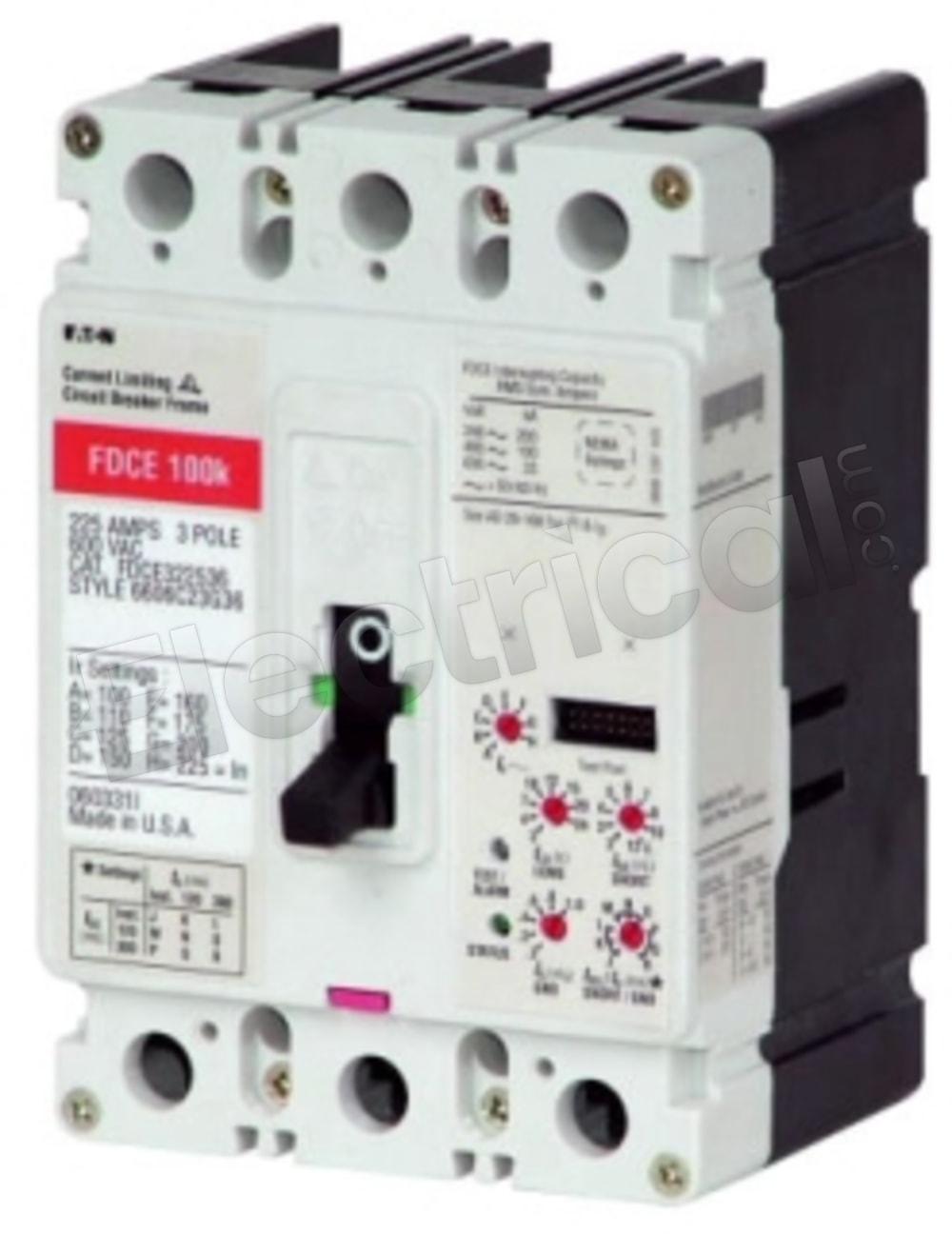

Eaton Molded Case FDCE316032L

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

FDCE316032L Specifications

View Specifications

FDCE316032L, Cutler Hammer, Eaton, Westinghouse, Series C, type FDCE, 3P, 3PH, 160A, 480V, 100kA@480V, very high interrupting capacity, current limiting, Feed-Thru, complete with LSI - Long-Time, Short-Time and Instantaneous trip functions and line & load side lug terminals, Solid State electronic, molded case circuit breakers

Manufacturer
Eaton
Subcategory
Molded Case
Family
Series C
Amperage
160
Voltage
480
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
FDCE316032L Specifications:
Part NumberFDCE316032L
Manufacturers
Cutler Hammer, Eaton, Westinghouse
Sub-CategoryMolded Case
FamilySeries C
TypeFDCE
UPC786685237060
Weight4.4 lbs
Amperage160
Voltage480
Poles3
AIC Rating100kA@480V
FunctionsLSI - Long-Time, Short-Time and Instantaneous
ProtectionSolid State
TerminalsLine and load
ConnectionFeed-Thru
Frame TypeF Frame
Phase3
