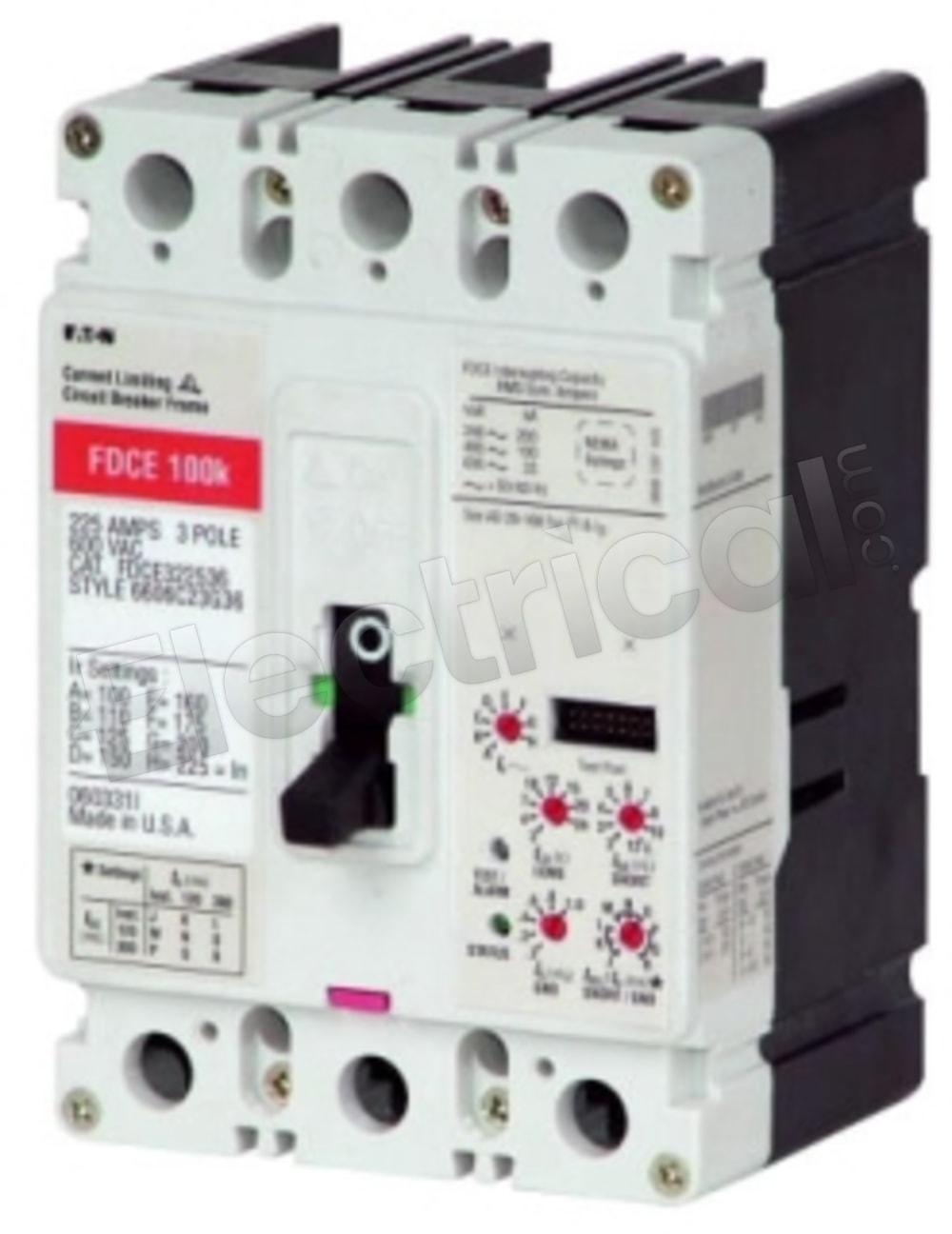

FDCE322533
FDCE322533
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
FDCE322533 Specifications
View Full SpecificationsView Specifications
FDCE322533, Cutler Hammer, Eaton, Westinghouse, Series C, type FDCE, 3P, 3PH, 225A, 480V, 100kA@480V, very high interrupting capacity, current limiting, Bolt-On, complete with LS - Long-Time and Short-Time trip functions and load side lug terminals, Solid State electronic, molded case circuit breakers
| Manufacturer | Eaton | Subcategory | Molded Case |
| Family | Series C | Amperage | 225 |
| Voltage | 480 | Poles | 3 |
| Manufacturer | Eaton | ||
| Subcategory | Molded Case | ||
| Family | Series C | ||
| Amperage | 225 | ||
| Voltage | 480 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
FDCE322533 Specifications:
Part NumberFDCE322533
Manufacturers
Sub-CategoryMolded Case
FamilySeries C
TypeFDCE
UPC786685236957
Weight4.5 lbs
Amperage225
Voltage480
Poles3
AIC Rating100kA@480V
FunctionsLS - Long-Time and Short-Time
ProtectionSolid State
TerminalsLoad side only
ConnectionBolt-On
Frame TypeF Frame
Phase3
