FDCE322535L

Eaton - Molded Case

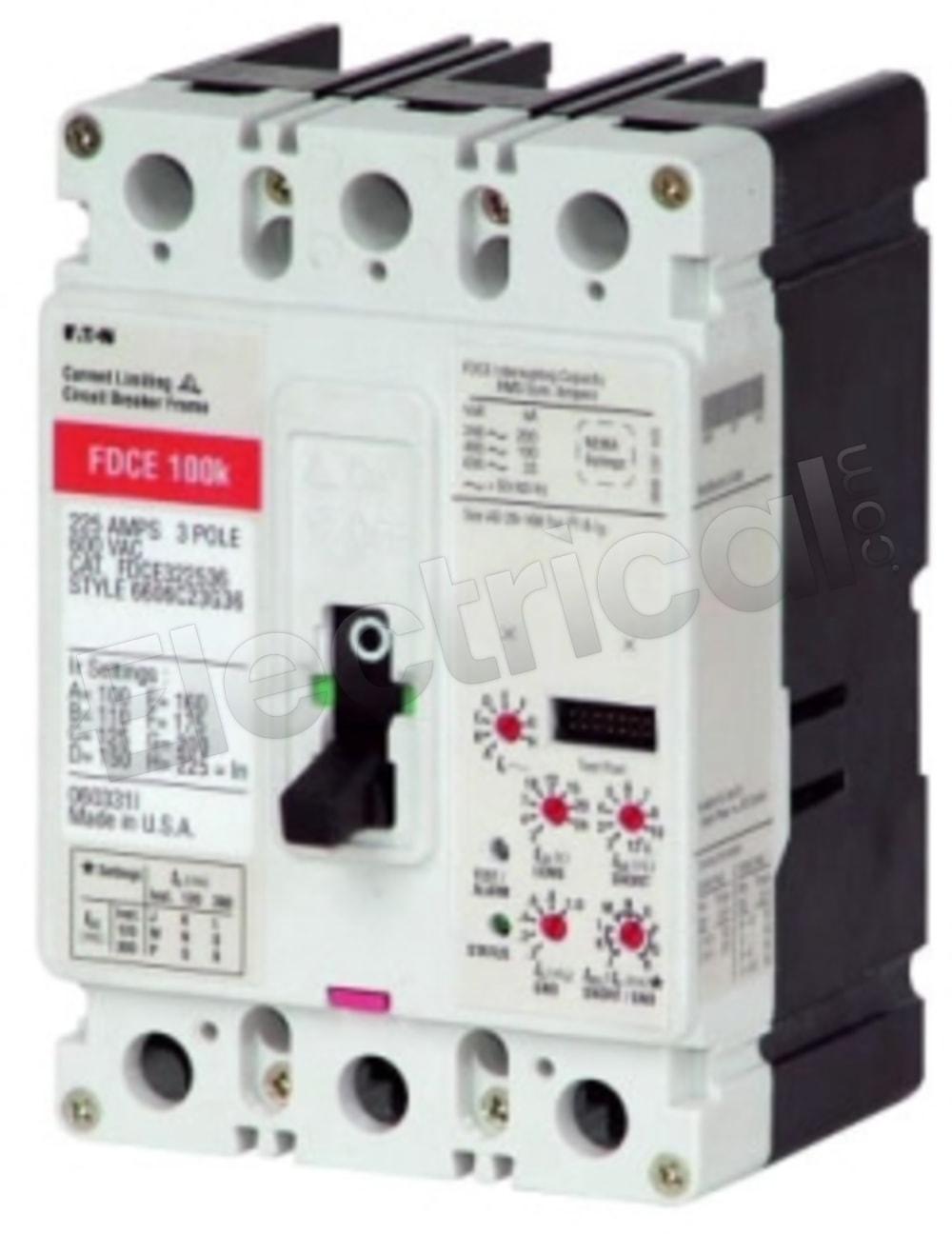

Eaton Molded Case FDCE322535L

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

FDCE322535L Specifications

View Specifications

FDCE322535L, Westinghouse, Cutler Hammer, Eaton, Series C, type FDCE, 3P, 3PH, 225A, 480V, 100kA@480V, very high interrupting capacity, current limiting, Feed-Thru, complete with LSG - Long-Time, Short-Time and Ground Fault trip functions and line & load side lug terminals, Solid State electronic, molded case circuit breakers

Manufacturer
Eaton
Subcategory
Molded Case
Family
Series C
Amperage
225
Voltage
480
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
FDCE322535L Specifications:
Part NumberFDCE322535L
Manufacturers
Westinghouse, Cutler Hammer, Eaton
Sub-CategoryMolded Case
FamilySeries C
TypeFDCE
UPC786685237169
Weight4.5 lbs
Amperage225
Voltage480
Poles3
AIC Rating100kA@480V
FunctionsLSG - Long-Time, Short-Time and Ground Fault
ProtectionSolid State
TerminalsLine and load
ConnectionFeed-Thru
Frame TypeF Frame
Phase3
