FWCF3100L

Eaton - Molded Case

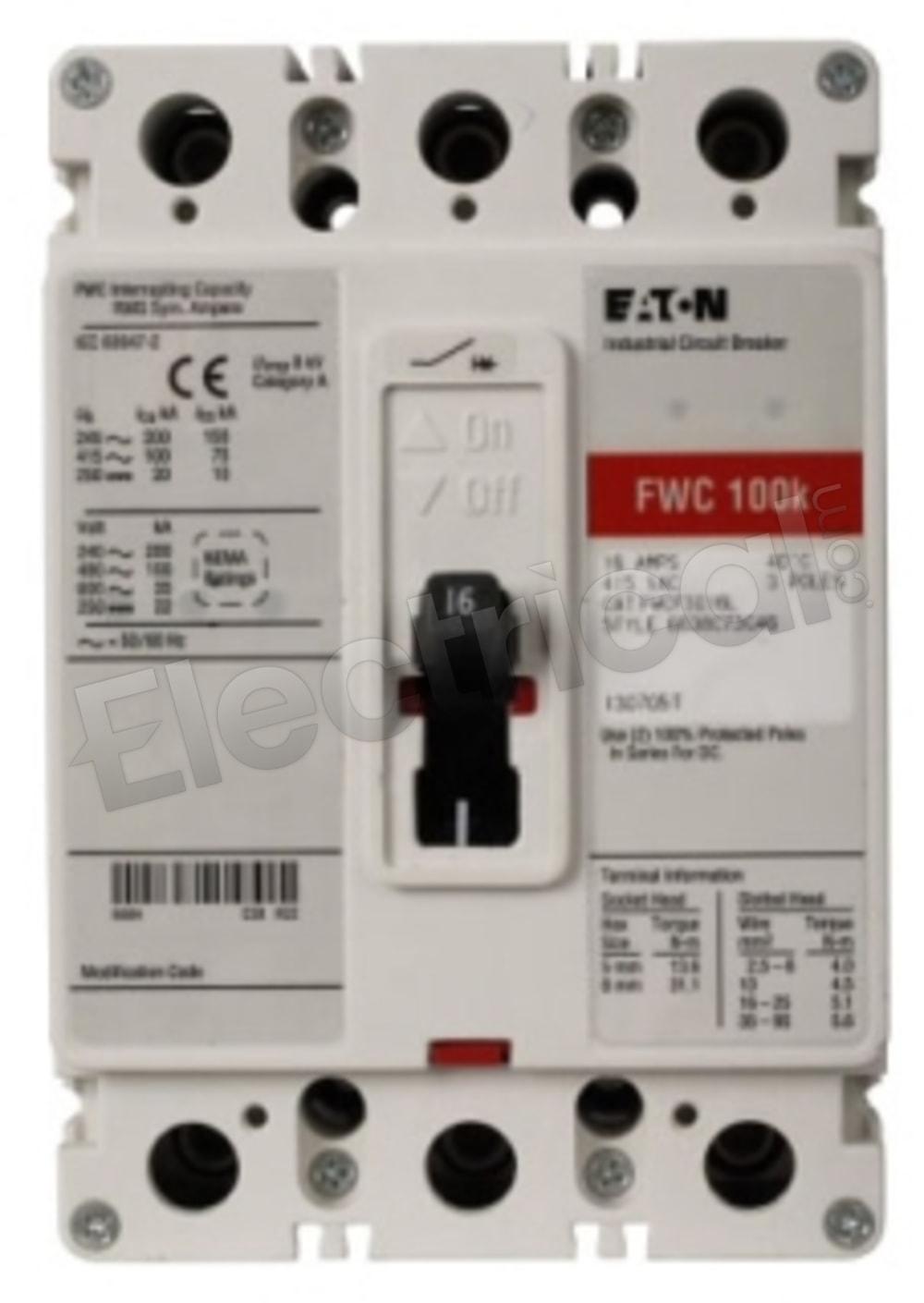

Eaton Molded Case FWCF3100L

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

FWCF3100L Specifications

View Specifications

FWCF3100L, Cutler Hammer, Eaton, Westinghouse, Series C, type FWCF, 3P, 3PH, 100A, 690V, 100kA@415V, ultra high interrupting capacity, Feed-Thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, molded case circuit breakers

Manufacturer
Eaton
Subcategory
Molded Case
Family
Series C
Amperage
100
Voltage
690
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
FWCF3100L Specifications:
Part NumberFWCF3100L
Manufacturers
Cutler Hammer, Eaton, Westinghouse
Sub-CategoryMolded Case
FamilySeries C
TypeFWCF
UPC786679019856
Weight4.3 lbs
Amperage100
Voltage690
Poles3
AIC Rating100kA@415V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Frame TypeF Frame
Phase3
