- Circuit Breaker /
- Molded Case /
- Eaton /
FWF4160KL
FWF4160KL

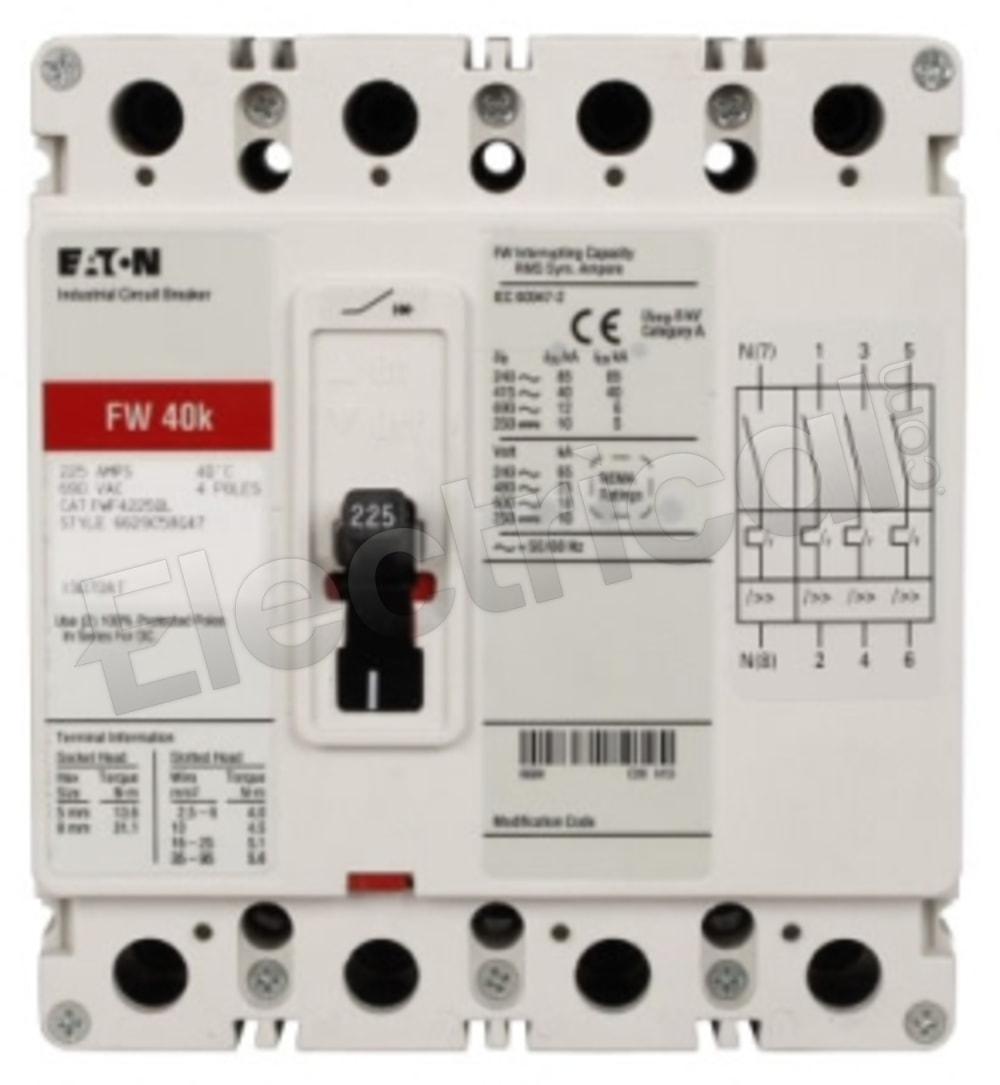

IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
FWF4160KL Specifications
View Full SpecificationsView Specifications
FWF4160KL, Westinghouse, Cutler Hammer, Eaton, Series C, type FWF, 4P, 3PH, 160A, 690V, 40kA@415V, Feed-Thru, line & load side lug terminals, NA - No Overcurrent Protection, Non-Automatic molded case switch, molded case circuit breakers
| Manufacturer | Eaton | Subcategory | Molded Case |
| Family | Series C | Amperage | 160 |
| Voltage | 690 | Poles | 4 |
| Manufacturer | Eaton | ||
| Subcategory | Molded Case | ||
| Family | Series C | ||
| Amperage | 160 | ||
| Voltage | 690 | ||
| Poles | 4 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
FWF4160KL Specifications:
Part NumberFWF4160KL
Manufacturers
Sub-CategoryMolded Case
FamilySeries C
TypeFWF
UPC786679010068
Weight6.3 lbs
Amperage160
Voltage690
Poles4
AIC Rating40kA@415V
FunctionsNA - No Overcurrent Protection
ProtectionNon-Automatic
ConnectionFeed-Thru
Frame TypeF Frame
Phase3
