GHB3030BP8

Eaton - Molded Case

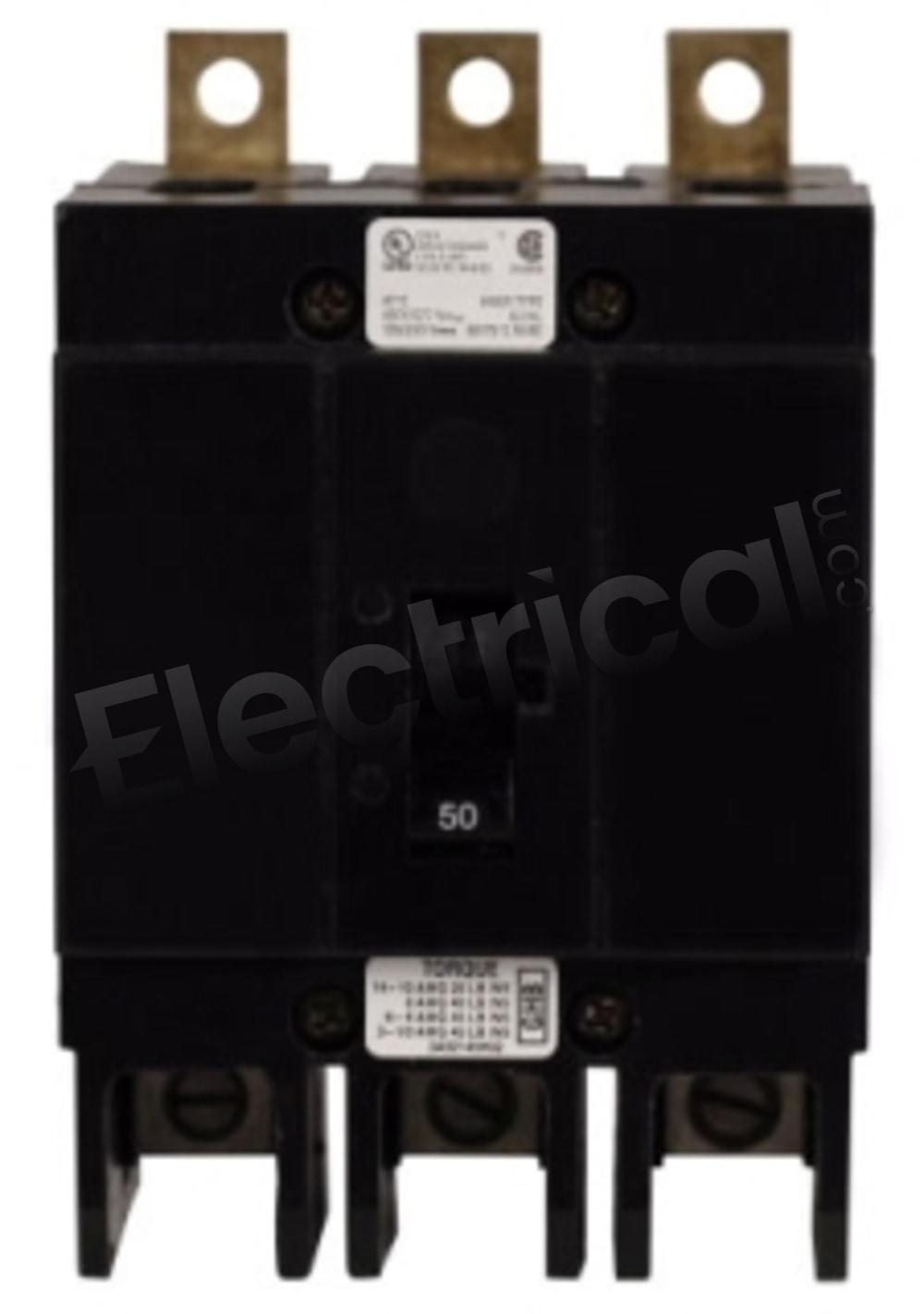

Eaton Molded Case GHB3030BP8

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

GHB3030BP8 Specifications

View Specifications

GHB3030BP8, Cutler Hammer, Eaton, Westinghouse, Series C, type GHB, PH, P, 277V, 30A, 14kA@277V, Bolt-On, complete with trip functions, Thermal Magnetic, molded case circuit breaker

Manufacturer
Eaton
Subcategory
Molded Case
Family
Series C
Amperage
30
Voltage
277
AIC Rating
14kA@277V

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
GHB3030BP8 Specifications:
Part NumberGHB3030BP8
Manufacturers
Cutler Hammer, Eaton, Westinghouse
Sub-CategoryMolded Case
FamilySeries C
TypeGHB
Weight0.75 lbs
Amperage30
Voltage277
AIC Rating14kA@277V
ProtectionThermal Magnetic
ConnectionBolt-On
Frame TypeG Frame
