HFD3035L

Eaton - Molded Case

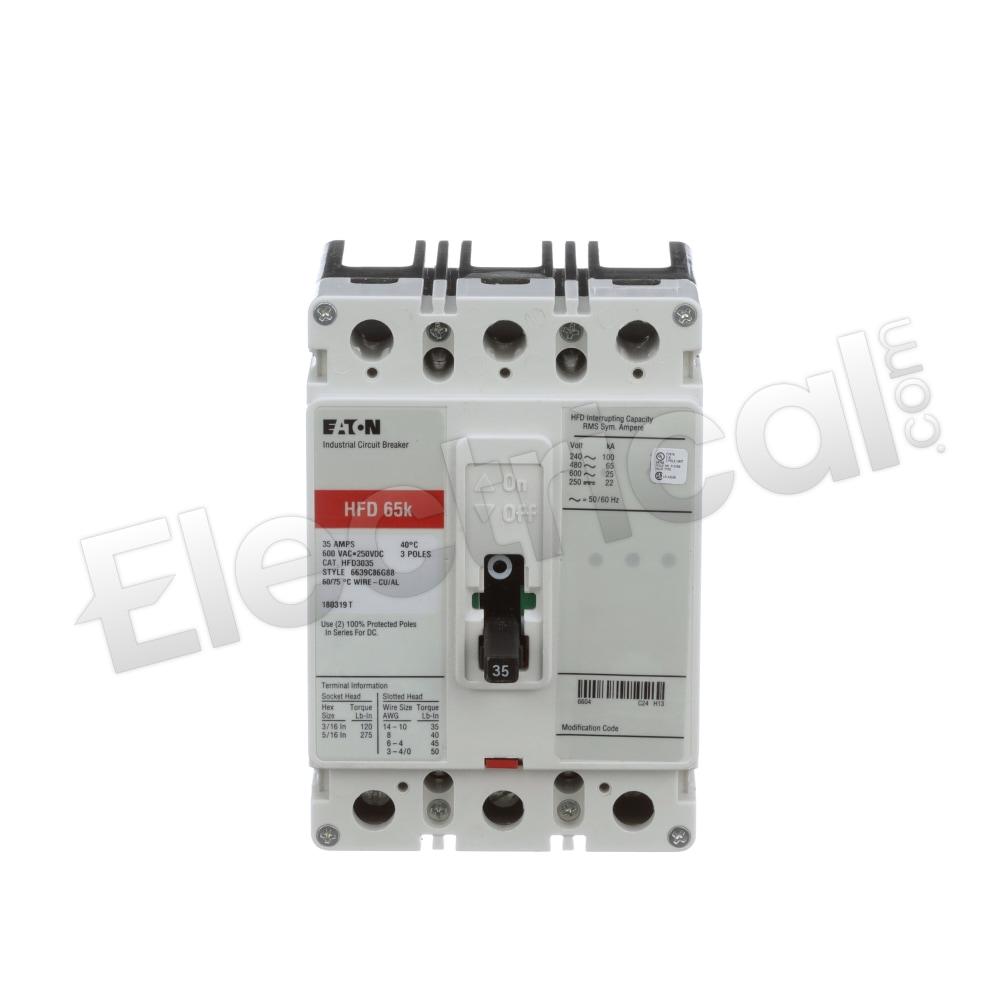

Eaton Molded Case HFD3035L

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

HFD3035L Specifications

View Specifications

HFD3035L, Cutler Hammer, Westinghouse, Eaton, Series C, type HFD, 3P, 3PH, 35A, 600V, 65kA@480V, high interrupting capacity, 40℃, Feed-Thru, complete with non-interchangeable, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, molded case circuit breakers

Manufacturer
Eaton
Subcategory
Molded Case
Family
Series C
Amperage
35
Voltage
600
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
HFD3035L Specifications:
Part NumberHFD3035L
Manufacturers
Cutler Hammer, Westinghouse, Eaton
Sub-CategoryMolded Case
FamilySeries C
TypeHFD
UPC786679175101
Weight4.5 lbs
Amperage35
Voltage600
Poles3
AIC Rating65kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
TerminalsLine and load
ConnectionFeed-Thru
Frame TypeF Frame
Phase3
