- Circuit Breaker /
- Molded Case /
- Eaton /

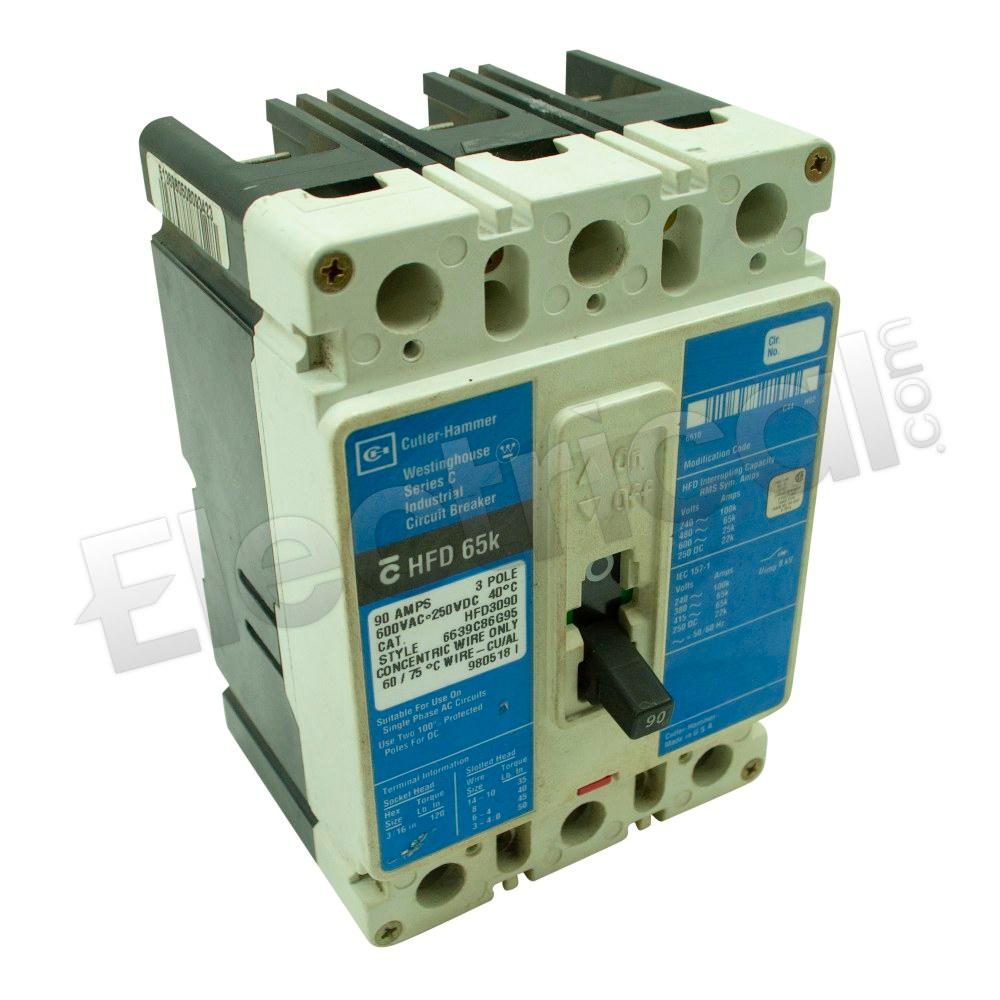

HFD3090
HFD3090
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
HFD3090 Specifications
View Full SpecificationsView Specifications
HFD3090, Cutler Hammer, Eaton circuit breaker molded case Series C, type HFD, F Frame, 3PH, 3P, 600V, 90A, 65kA@480V, Bolt-On, complete with LI - Long-Time and Instantaneous trip functions, Thermal Magnetic
| Manufacturer | Eaton | Subcategory | Molded Case |
| Family | Series C | Amperage | 90 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Eaton | ||
| Subcategory | Molded Case | ||
| Family | Series C | ||
| Amperage | 90 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
HFD3090 Specifications:
Part NumberHFD3090
Manufacturers
Sub-CategoryMolded Case
FamilySeries C
TypeHFD
UPC786679175880
Weight4 lbs
Amperage90
Voltage600
Poles3
AIC Rating65kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionBolt-On
Frame TypeF Frame
Phase3
