1. Circuit Breaker /
  2. Molded Case /
  3. Eaton /

    4. HFD4020

HFD4020

Eaton - Molded Case

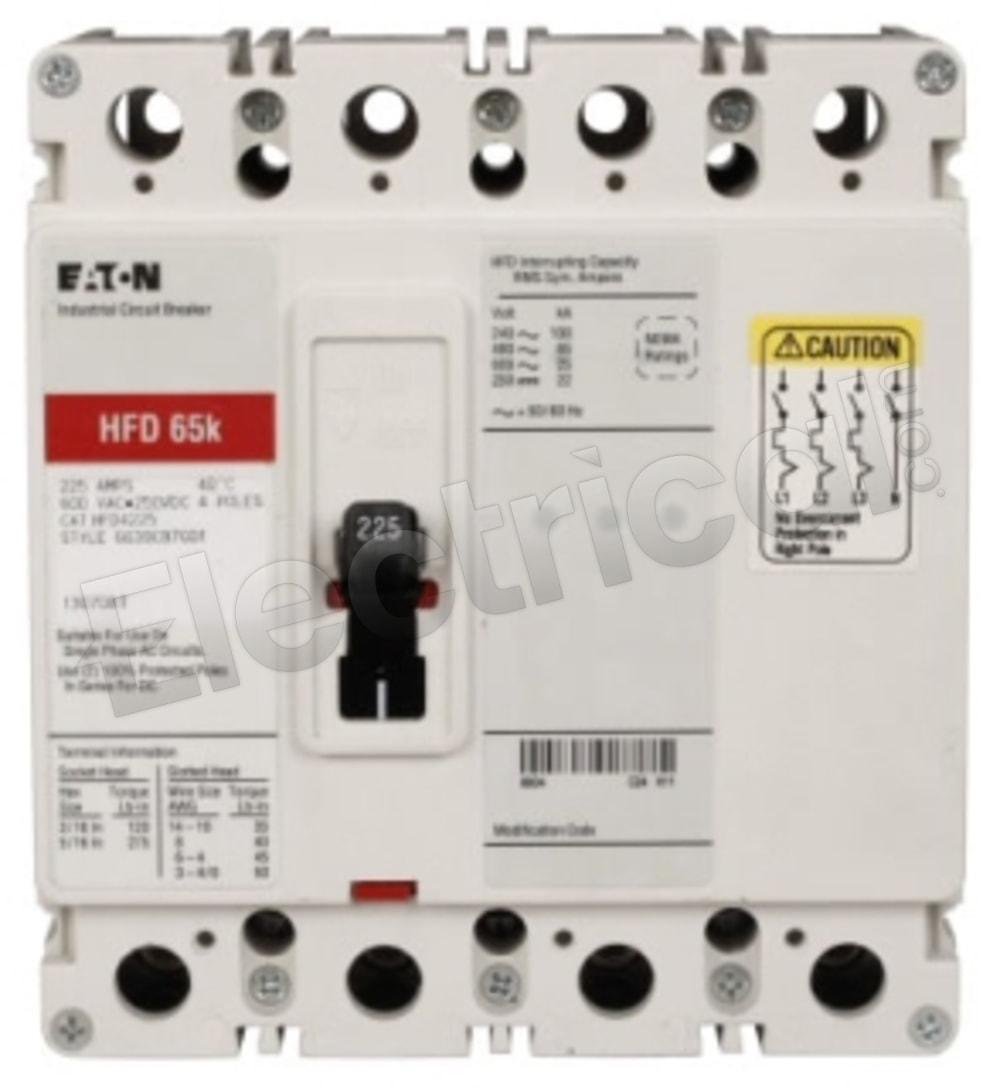

Eaton Molded Case HFD4020

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

HFD4020 Specifications

View Specifications

HFD4020, Cutler Hammer, Eaton, Westinghouse, Series C, type HFD, 4P, 3PH, 20A, 600V, 65kA@480V, high interrupting capacity, 40°C, Bolt-On, complete with non-interchangeable, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic, molded case circuit breakers

Manufacturer
Eaton
Subcategory
Molded Case
Family
Series C
Amperage
20
Voltage
600
Poles
4

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
HFD4020 Specifications:
Part NumberHFD4020
Manufacturers
Cutler Hammer, Eaton, Westinghouse
Sub-CategoryMolded Case
FamilySeries C
TypeHFD
UPC786679253557
Weight4.5 lbs
Amperage20
Voltage600
Poles4
AIC Rating65kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionBolt-On
Frame TypeF Frame
Phase3
