HFDDC3100L

Eaton - Molded Case

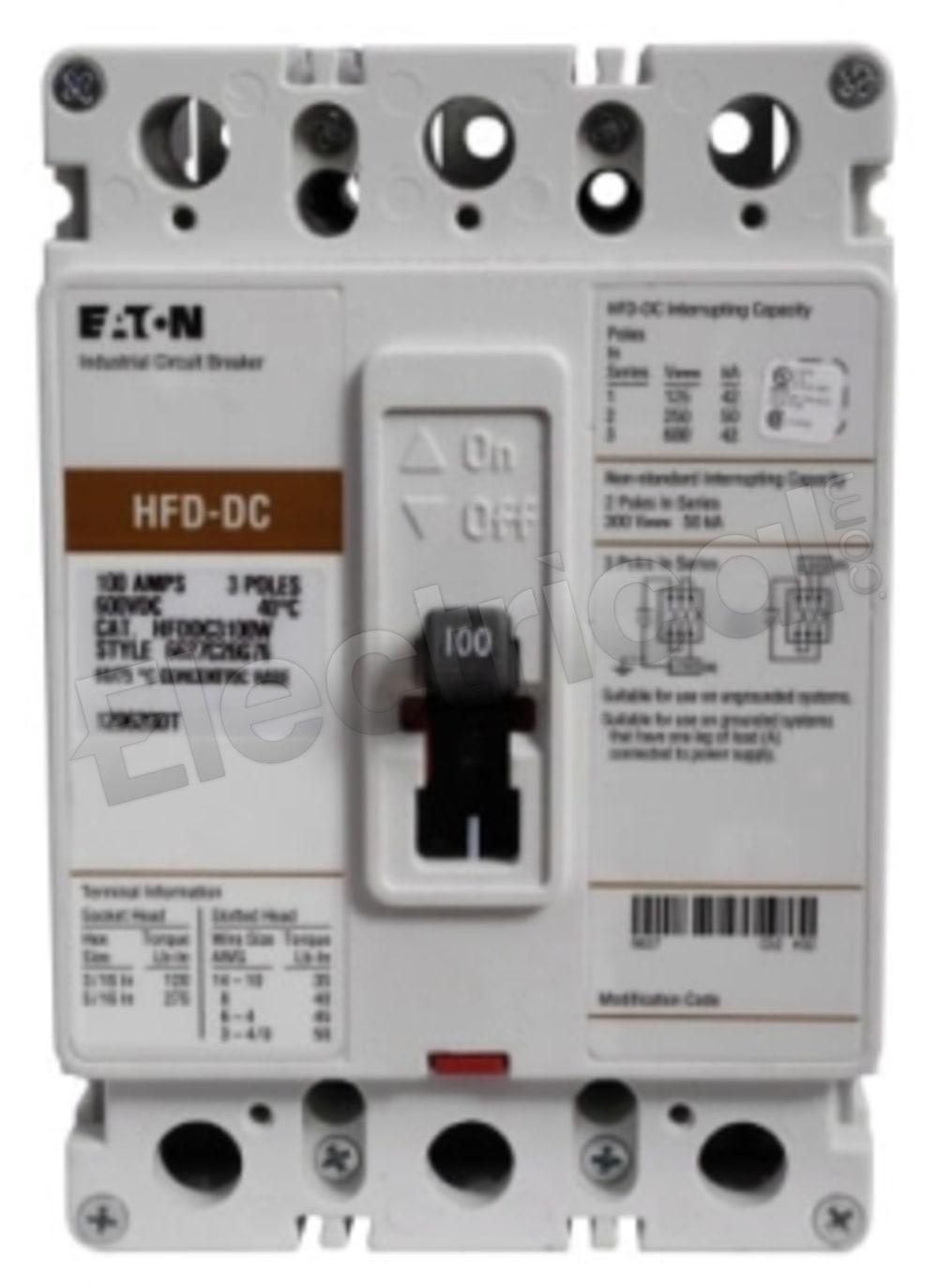

Eaton Molded Case HFDDC3100L

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

HFDDC3100L Specifications

View Specifications

HFDDC3100L, Eaton, Westinghouse, Cutler Hammer, Series C, type HFDDC, 3P, 3PH, 100A, 600V, DC rated, 42kA@600V, high interrupting capacity, Feed-Thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic molded case circuit breakers

Manufacturer
Eaton
Subcategory
Molded Case
Family
Series C
Amperage
100
Voltage
600
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
HFDDC3100L Specifications:
Part NumberHFDDC3100L
Manufacturers
Eaton, Westinghouse, Cutler Hammer
Sub-CategoryMolded Case
FamilySeries C
TypeHFDDC
UPC786679396209
Weight6.3 lbs
Amperage100
Voltage600
Poles3
AIC Rating42kA@600V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Frame TypeF Frame
Phase3
