HFW3080L

Eaton - Molded Case

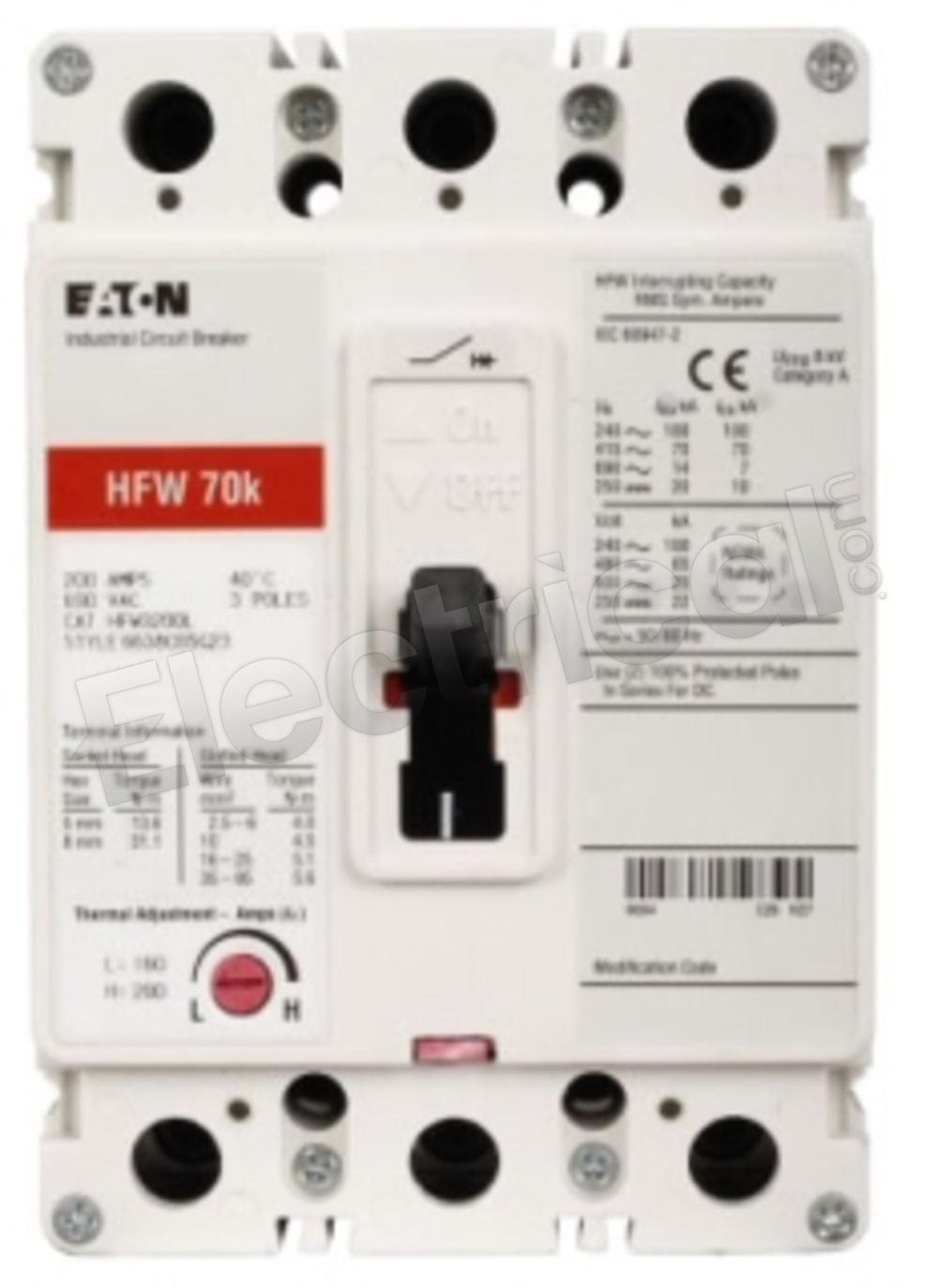

Eaton Molded Case HFW3080L

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

HFW3080L Specifications

View Specifications

HFW3080L, Westinghouse, Eaton, Cutler Hammer, Series C, type HFW, 3P, 3PH, 80A, 690V, 70kA@415V, high interrupting capacity, Feed-Thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, adjustable thermal/fixed magnetic, Thermal Magnetic, molded case circuit breakers

Manufacturer
Eaton
Subcategory
Molded Case
Family
Series C
Amperage
80
Voltage
690
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
HFW3080L Specifications:
Part NumberHFW3080L
Manufacturers
Westinghouse, Eaton, Cutler Hammer
Sub-CategoryMolded Case
FamilySeries C
TypeHFW
UPC786679248584
Weight5 lbs
Amperage80
Voltage690
Poles3
AIC Rating70kA@415V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Frame TypeF Frame
Phase3
