HM2P250D5

Eaton - Molded Case

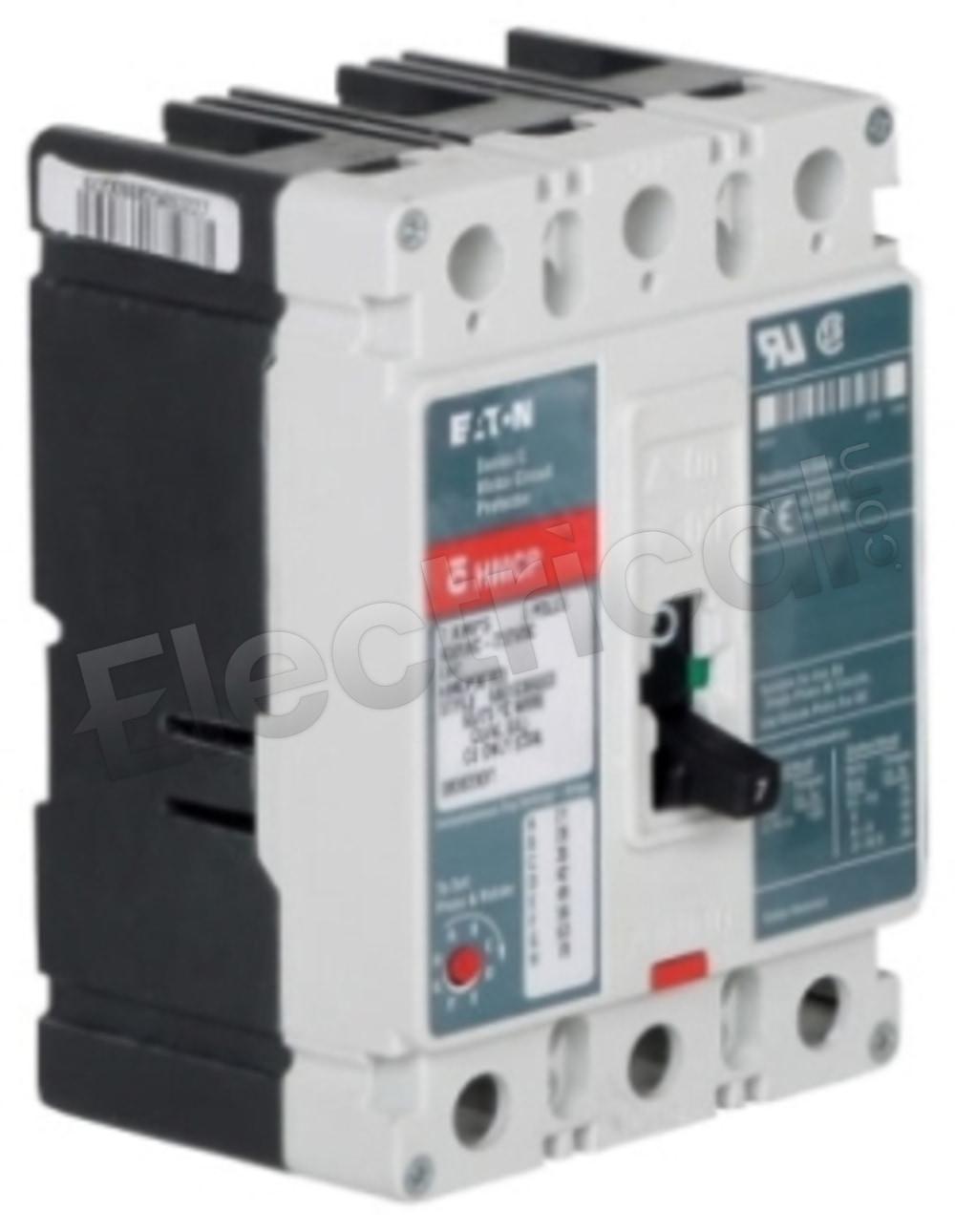

Eaton Molded Case HM2P250D5

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

HM2P250D5 Specifications

View Specifications

HM2P250D5, Cutler Hammer, Eaton, Westinghouse, Series C, type HM2P, J Frame, 2P, 1PH, 250A, 600V, 35kA@480V, Feed-Thru, complete with I - Instantaneous Protection Only and standard line & load side lug terminals, magnetic range 500-1000A, Magnetic Only, molded case circuit breakers

Manufacturer
Eaton
Subcategory
Molded Case
Family
Series C
Amperage
250
Voltage
600
Poles
2

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
HM2P250D5 Specifications:
Part NumberHM2P250D5
Manufacturers
Cutler Hammer, Eaton, Westinghouse
Sub-CategoryMolded Case
FamilySeries C
TypeHM2P
UPC786679000151
Weight1 lbs
Amperage250
Voltage600
Poles2
AIC Rating35kA@480V
FunctionsI - Instantaneous
GroupMotor Circuit Protector
ProtectionMagnetic Only
ConnectionFeed-Thru
Phase1
