HM2P250W5
HM2P250W5
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
HM2P250W5 Specifications
View Full SpecificationsView Specifications

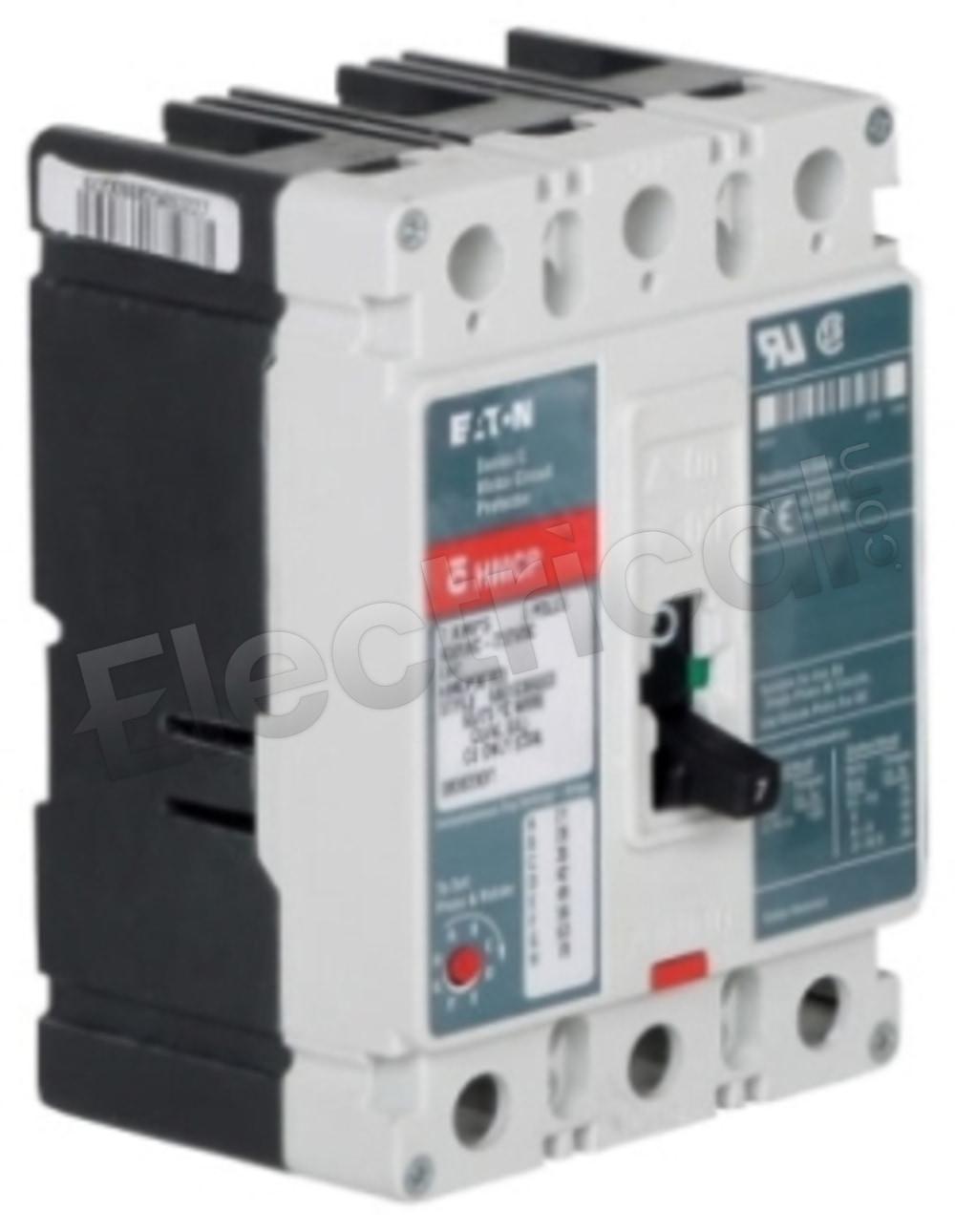

HM2P250W5, Eaton, Westinghouse, Cutler Hammer, Series C, type HM2P, 1PH, 2P, 600V, 250A, 35kA@480V, Feed-Thru, complete with I - Instantaneous trip functions, Magnetic Only, molded case circuit breaker
| Manufacturer | Eaton | Subcategory | Molded Case |
| Family | Series C | Amperage | 250 |
| Voltage | 600 | Poles | 2 |
| Manufacturer | Eaton | ||
| Subcategory | Molded Case | ||
| Family | Series C | ||
| Amperage | 250 | ||
| Voltage | 600 | ||
| Poles | 2 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
HM2P250W5 Specifications:
Part NumberHM2P250W5
Manufacturers
Sub-CategoryMolded Case
FamilySeries C
TypeHM2P
UPC786679151181
Weight1 lbs
Amperage250
Voltage600
Poles2
AIC Rating35kA@480V
FunctionsI - Instantaneous
GroupMotor Circuit Protector
ProtectionMagnetic Only
ConnectionFeed-Thru
Phase1
