HMCP015E0
HMCP015E0
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
HMCP015E0 Specifications
View Full SpecificationsView Specifications

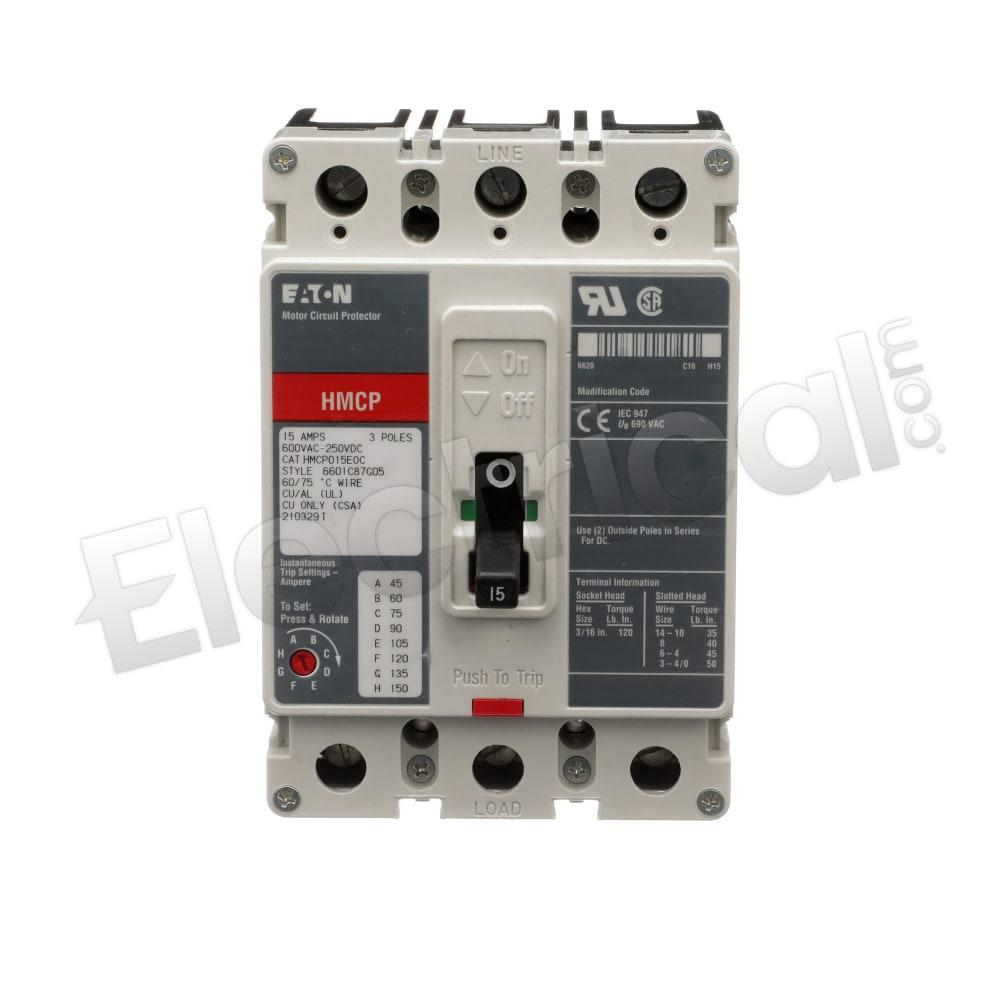

HMCP015E0, Eaton, Cutler Hammer, Westinghouse, Series C, Type HMCP Motor Circuit Protector, 3-Pole, 15A, F Frame, Line and load terminals, 45-150 magnetic trip range, NEMA starter size 0
| Manufacturer | Eaton | Subcategory | Molded Case |
| Family | Series C | Amperage | 15 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Eaton | ||
| Subcategory | Molded Case | ||
| Family | Series C | ||
| Amperage | 15 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
HMCP015E0 Specifications:
Part NumberHMCP015E0
Manufacturers
Sub-CategoryMolded Case
Other NamesHMCP015EO
FamilySeries C
TypeHMCP
UPC786679150726
Weight4.25 lbs
Amperage15
Voltage600
Poles3
AIC Rating65kA@480V
FunctionsI - Instantaneous
GroupMotor Circuit Protector
ProtectionMagnetic Only
TerminalsLine and load
ConnectionFeed-Thru
Frame TypeF Frame
Phase3
