HMCP030H1

Eaton - Molded Case

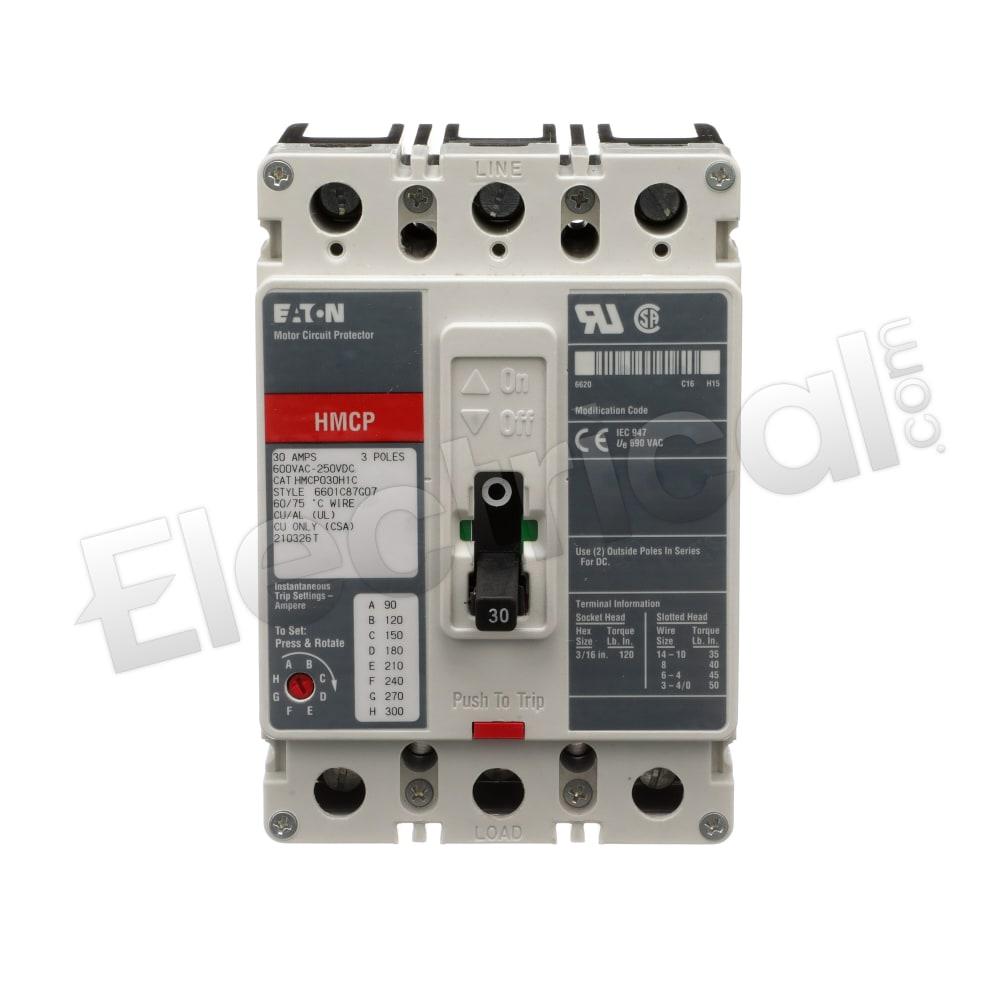

Eaton Molded Case HMCP030H1

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

HMCP030H1 Specifications

View Specifications

HMCP030H1, Eaton, Westinghouse, Cutler Hammer, Series C, type HMCP, F Frame, 3P, 3PH, 30A, 600V, 65kA@480V, Feed-Thru, complete with non-interchangeable trip with I - Instantaneous Protection Only, standard line & load side lug terminals, MCP, motor circuit protector, magnetic range 90-300A, motor FLA 6.9-25.2A, Magnetic Only, molded case circuit breakers

Manufacturer
Eaton
Subcategory
Molded Case
Family
Series C
Amperage
30
Voltage
600
Poles
3

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
HMCP030H1 Specifications:
Part NumberHMCP030H1
Manufacturers
Eaton, Westinghouse, Cutler Hammer
Sub-CategoryMolded Case
FamilySeries C
TypeHMCP
UPC786679150733
Weight4.2 lbs
Amperage30
Voltage600
Poles3
AIC Rating65kA@480V
FunctionsI - Instantaneous
GroupMotor Circuit Protector
ProtectionMagnetic Only
ConnectionFeed-Thru
Frame TypeF Frame
Phase3
