KW4400

Eaton - Molded Case

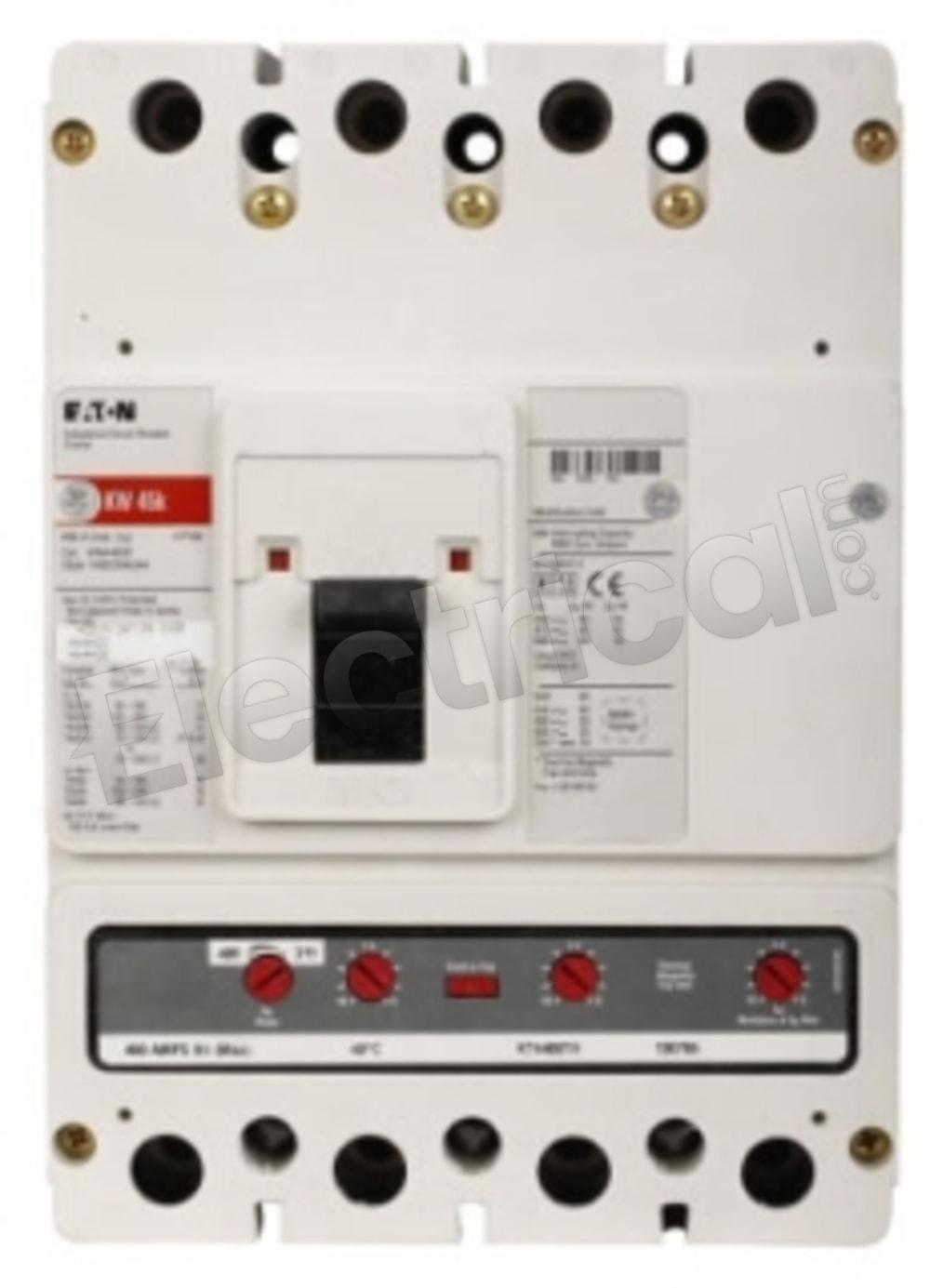

Eaton Molded Case KW4400

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

KW4400 Specifications

View Specifications

KW4400, Westinghouse, Cutler Hammer, Eaton, Series C, type KW, 4P, 3PH, 400A, 690V, 40kA@415V, IEC rated, standard interrupting capacity, Feed-Thru, complete with interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, adjustable Thermal Magnetic, molded case circuit breakers

Manufacturer
Eaton
Subcategory
Molded Case
Family
Series C
Amperage
400
Voltage
690
Poles
4

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
KW4400 Specifications:
Part NumberKW4400
Manufacturers
Westinghouse, Cutler Hammer, Eaton
Sub-CategoryMolded Case
FamilySeries C
TypeKW
UPC786679056301
Weight18 lbs
Amperage400
Voltage690
Poles4
AIC Rating40kA@415V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
ConnectionFeed-Thru
Frame TypeK Frame
Phase3
