LD3600F
LD3600F
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
LD3600F Specifications
View Full SpecificationsView Specifications

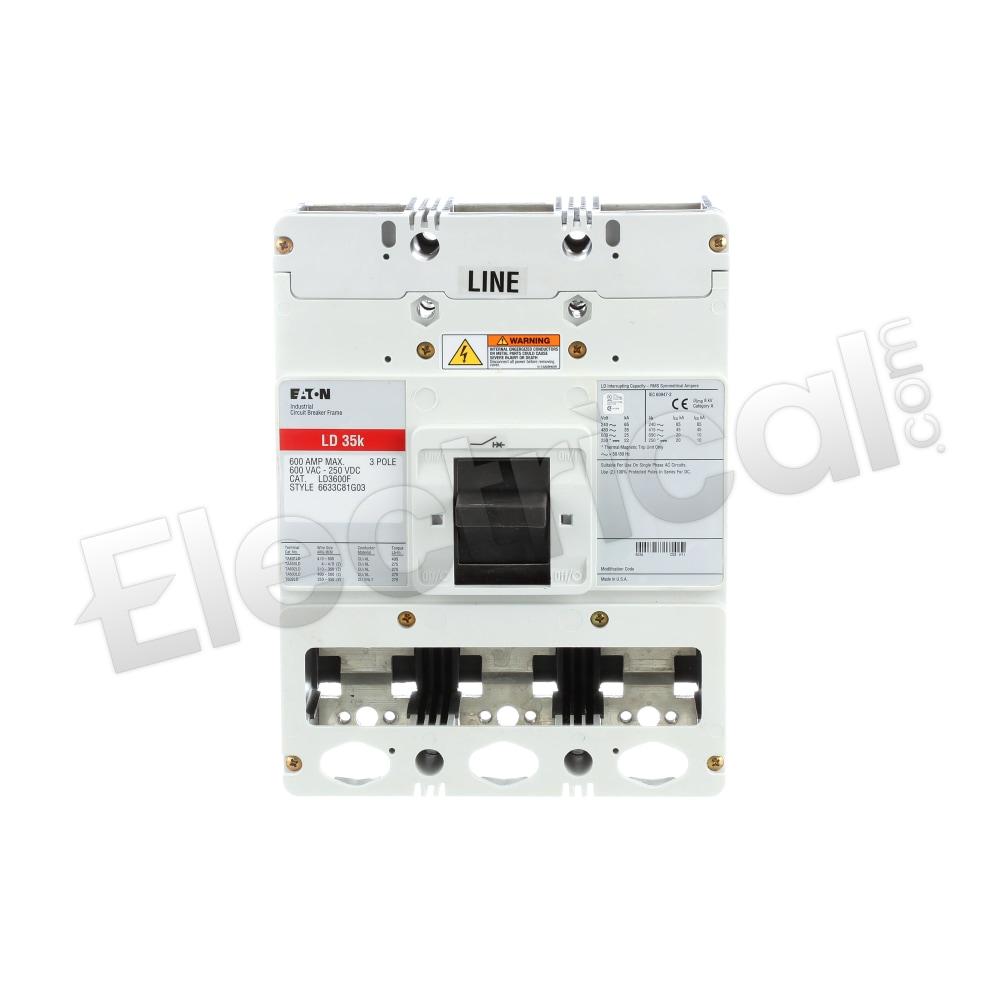

LD3600F, Westinghouse, Eaton, Cutler Hammer circuit breaker molded case Series C, type LD, L Frame, 3PH, 3P, 600V, 600A, 35kA@480V, Bolt-On, complete with LI - Long-Time and Instantaneous trip functions, Thermal Magnetic
| Manufacturer | Eaton | Subcategory | Molded Case |
| Family | Series C | Amperage | 600 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Eaton | ||
| Subcategory | Molded Case | ||
| Family | Series C | ||
| Amperage | 600 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
LD3600F Specifications:
Part NumberLD3600F
Manufacturers
Sub-CategoryMolded Case
FamilySeries C
TypeLD
UPC786679148204
Weight20 lbs
Amperage600
Voltage600
Poles3
AIC Rating35kA@480V
FunctionsLI - Long-Time and Instantaneous
ProtectionThermal Magnetic
TerminalsFrame Only
ConnectionBolt-On
Frame TypeL Frame
Phase3
