- Circuit Breaker /
- Molded Case /
- Eaton /
LGE3600FAW
LGE3600FAW

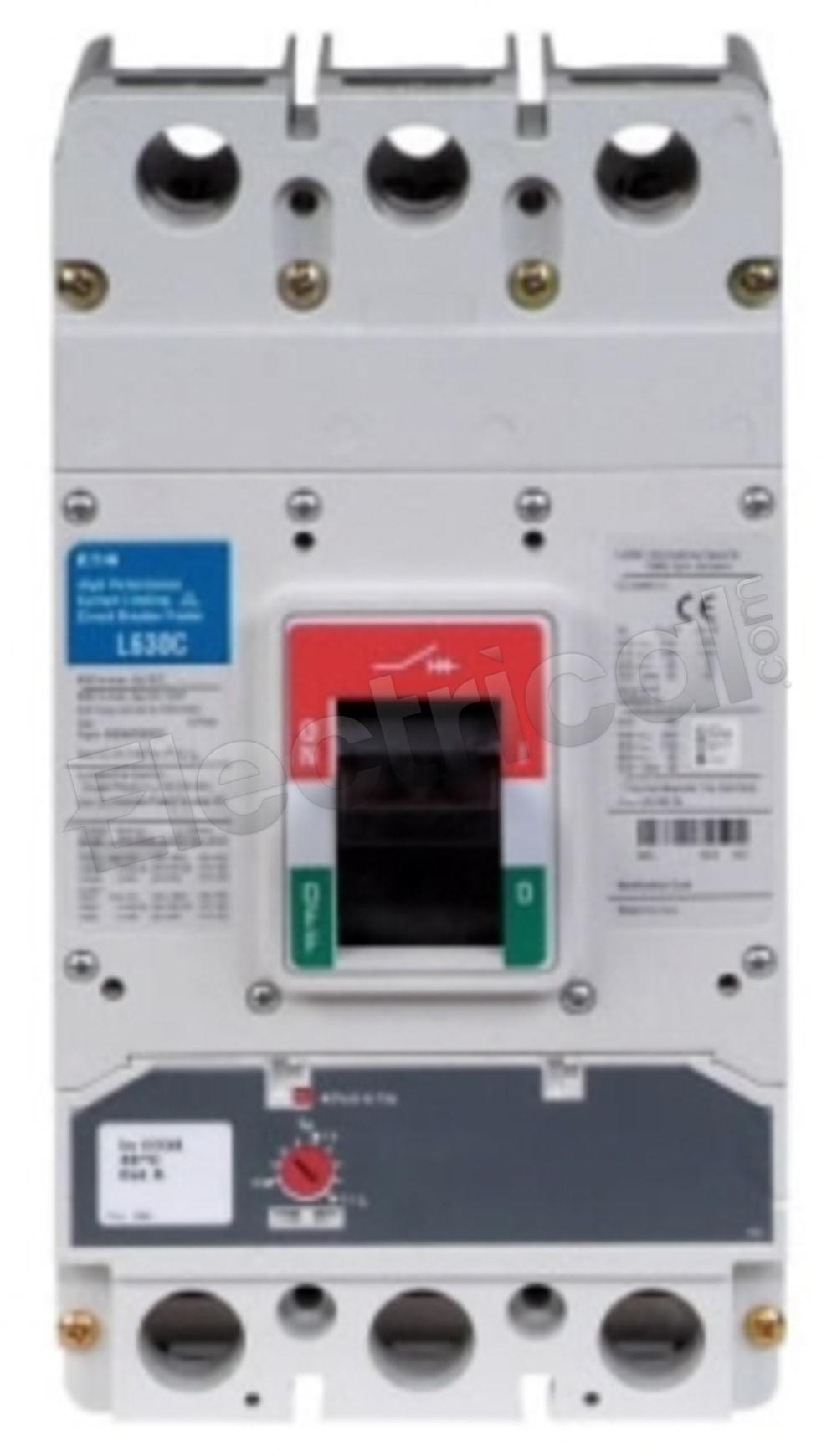

IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
LGE3600FAW Specifications
View Full SpecificationsView Specifications
LGE3600FAW, Eaton, Cutler Hammer, Series G, type LGE, 3P, 3PH, 600A, 690V, 65kA@220/240V, standard interrupting capacity, 40°C, complete with non-interchangeable trip unit, line & load side lug terminals not included, Thermal Magnetic molded case circuit breakers
| Manufacturer | Eaton | Subcategory | Molded Case |
| Family | Series G | Amperage | 600 |
| Voltage | 690 | Poles | 3 |
| Manufacturer | Eaton | ||
| Subcategory | Molded Case | ||
| Family | Series G | ||
| Amperage | 600 | ||
| Voltage | 690 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
LGE3600FAW Specifications:
Part NumberLGE3600FAW
Manufacturers
Sub-CategoryMolded Case
FamilySeries G
TypeLGE
UPC782116141753
Weight16 lbs
Amperage600
Voltage690
Poles3
AIC Rating65kA@220/240V
ProtectionThermal Magnetic
Frame TypeLG Frame
Phase3
Additional Information
