- Circuit Breaker /
- Molded Case /
- Eaton /

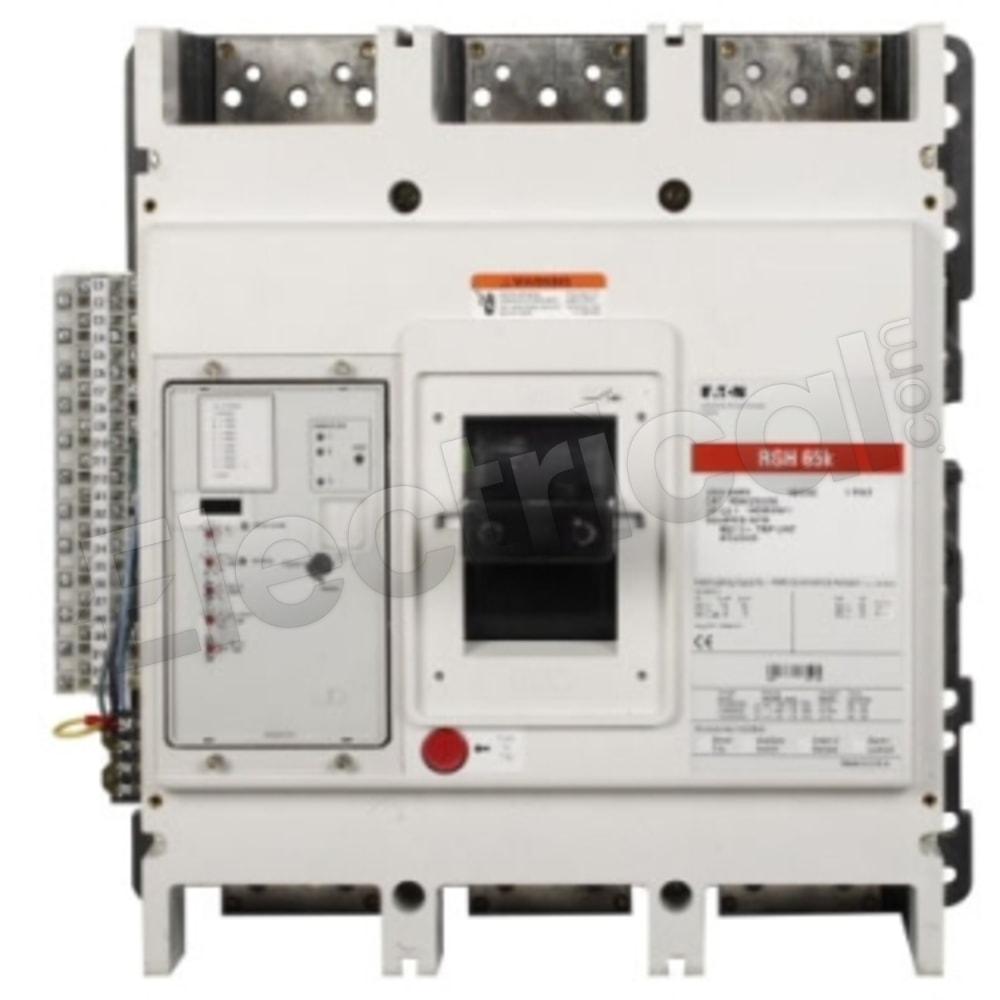

RGH316036E
RGH316036E
IMAGES ARE FOR REFERENCE ONLY.
IMAGES ARE FOR REFERENCE ONLY.
Select Product Condition:
What's the difference?View Specifications
RGH316036E Specifications
View Full SpecificationsView Specifications
RGH316036E, Eaton, Cutler Hammer, Series G, type RGH, 3P, 3PH, 1600A, 600V, 65kA@480V, high interrupting capacity, Bolt-On, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, complete with Digitrip 310 electronic trip unit with adjustable rating plug, English threading, Solid State electronic, molded case circuit breakers
| Manufacturer | Eaton | Subcategory | Molded Case |
| Family | Series G | Amperage | 1600 |
| Voltage | 600 | Poles | 3 |
| Manufacturer | Eaton | ||
| Subcategory | Molded Case | ||
| Family | Series G | ||
| Amperage | 1600 | ||
| Voltage | 600 | ||
| Poles | 3 |
Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.
RGH316036E Specifications:
Part NumberRGH316036E
Manufacturers
Sub-CategoryMolded Case
FamilySeries G
TypeRGH
UPC786685574684
Weight50 lbs
Amperage1600
Voltage600
Poles3
AIC Rating65kA@480V
FunctionsLSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
ProtectionSolid State
ConnectionBolt-On
Phase3
Additional Information
