1. Circuit Breaker /
  2. Mechanism Assembly /
  3. General Electric /

    4. 0144D1201G007

0144D1201G007

General Electric - Mechanism Assembly

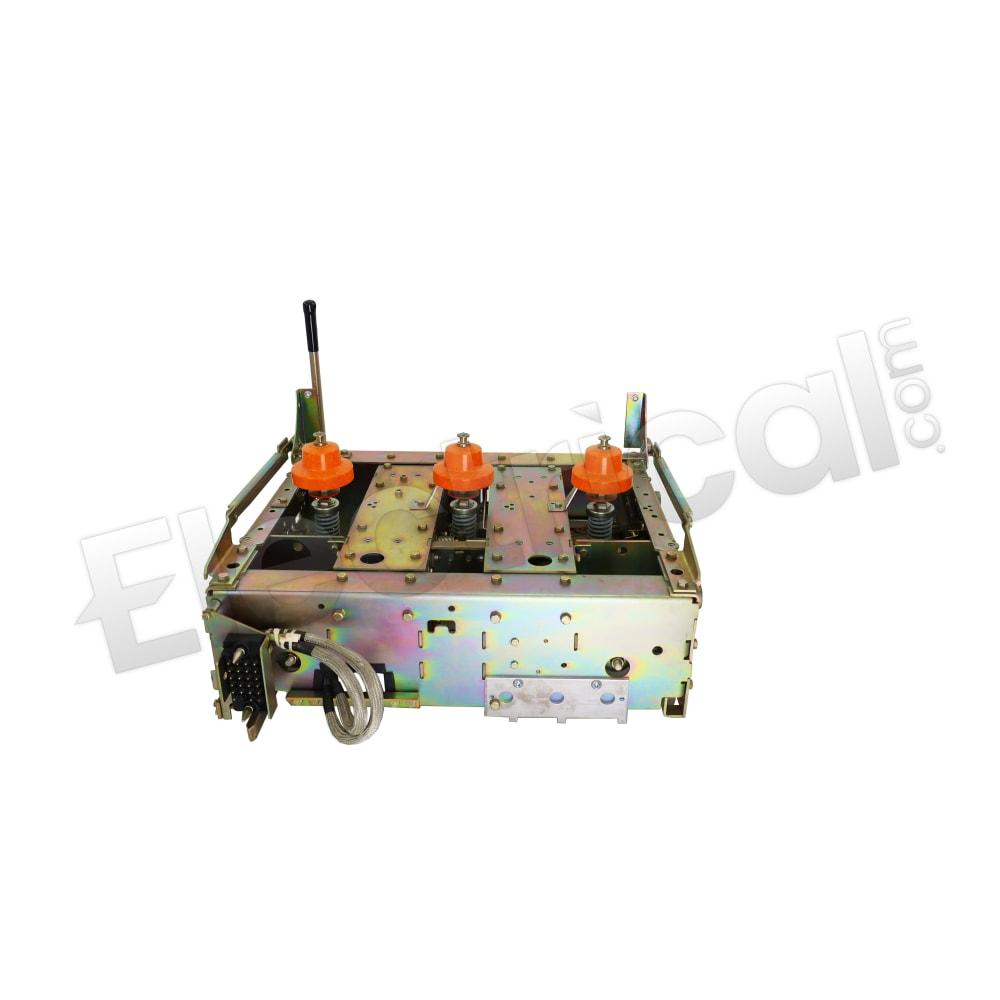

General Electric Mechanism Assembly 0144D1201G007

IMAGES ARE FOR REFERENCE ONLY.

Select Product Condition:

View Specifications

0144D1201G007 Specifications

View Specifications

0144D1201G007 / 0144D1201G001, 0144D1201G002 , General Electric, PowerVac, complete ML-18 Mechanism, VB-1 0,1,2,3, ML-18, qty 1 needed per breaker, suitable for VB1 4.16-250 (1200 & 2000A), VB1 4.16-350 (1200 & 2000A), VB1 7.2-500 (1200 & 2000A), VB1 13.8-500 (1200 & 2000A), VB1 13.8-750 (1200 & 2000A), VB1 13.8-1000 (1200 & 2000A)

Manufacturer
General Electric
Subcategory
Mechanism Assembly
Family
PowerVac

Electrical.com is NOT an authorized distributor for Square D and therefore the manufacturer’s warranty does not apply. This product does include an Electrical.com 2 year warranty.

Pearl Logo
Standard Warranty Logo
Ships WorldWide Logo
Rush Shipping Logo
0144D1201G007 Specifications:
Part Number0144D1201G007
Manufacturers
General Electric
Sub-CategoryMechanism Assembly
FamilyPowerVac
TypeVB1
Weight500 lbs
Model DesignatorVB-1 0,1,2,3
Mechanism SeriesML-18
Suitable ForVB1 4.16-250 (1200 & 2000A), VB1 4.16-350 (1200 & 2000A), VB1 7.2-500 (1200 & 2000A), VB1 13.8-500 (1200 & 2000A), VB1 13.8-750 (1200 & 2000A), VB1 13.8-1000 (1200 & 2000A)
